DTC P0133: Front Ho2S Circuit Problem
>>
Except for California Emission Regulation Applicable Model
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Except for California Emission Regulation Applicable Model

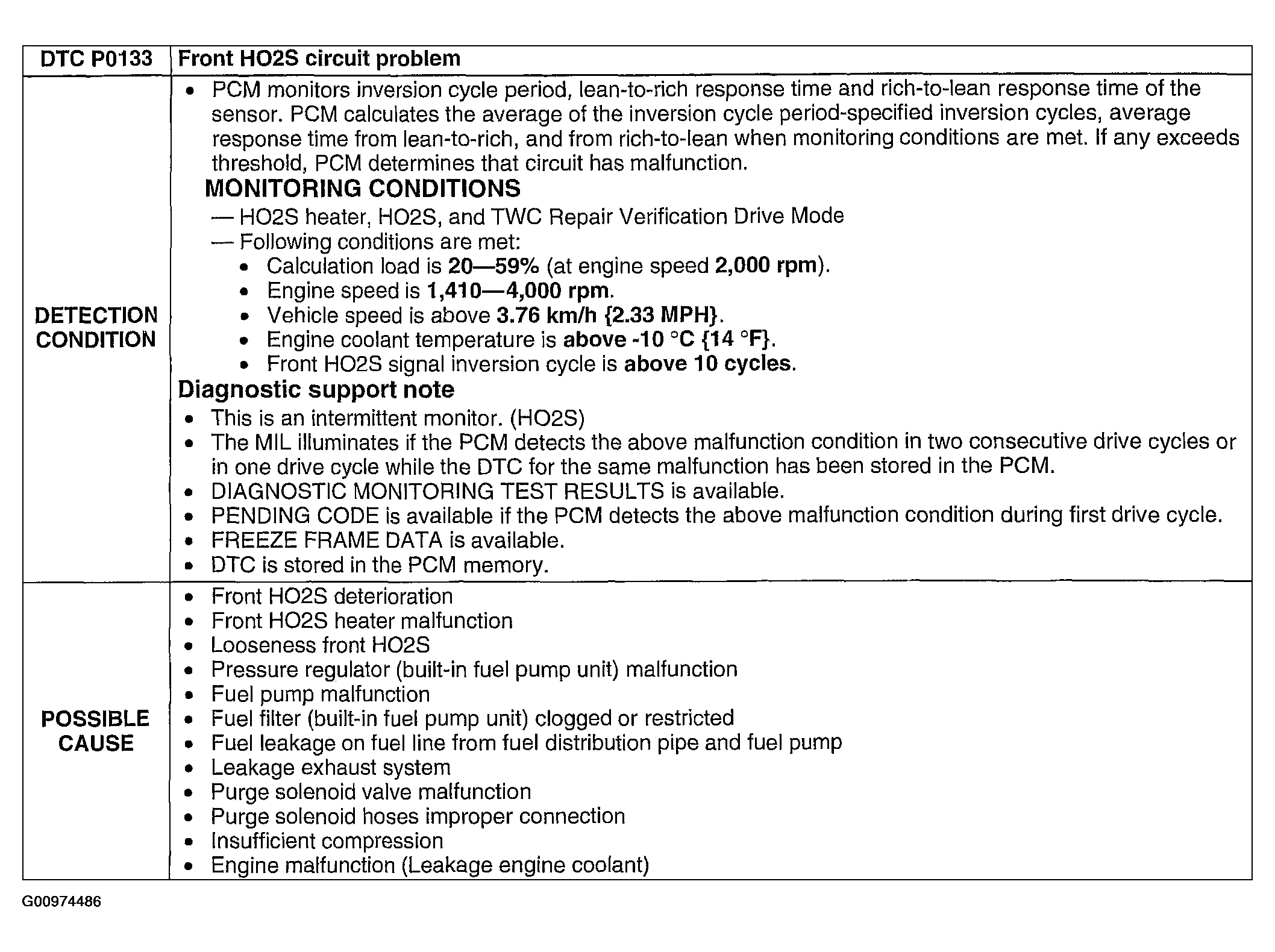

Fig 1: DTC P0133: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
