Purge control signal

PCM terminals

• 2AN (+)-Negative battery terminal (-)

Oscilloscope setting

• 2 V/DIV (Y), 0.1 s/DIV (X), DC range

Vehicle condition

• Idle after warm-up

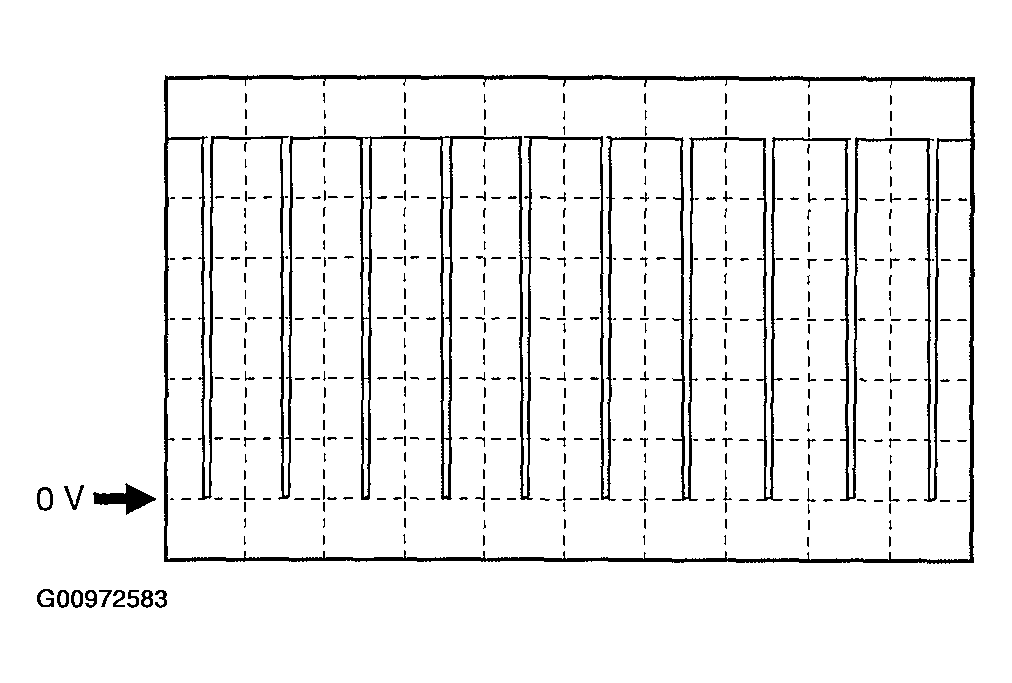

  Fig 1: Inspection Graph Of Purge Control Signal Using Oscilloscope

  Courtesy of MAZDA MOTORS CORP.
