Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

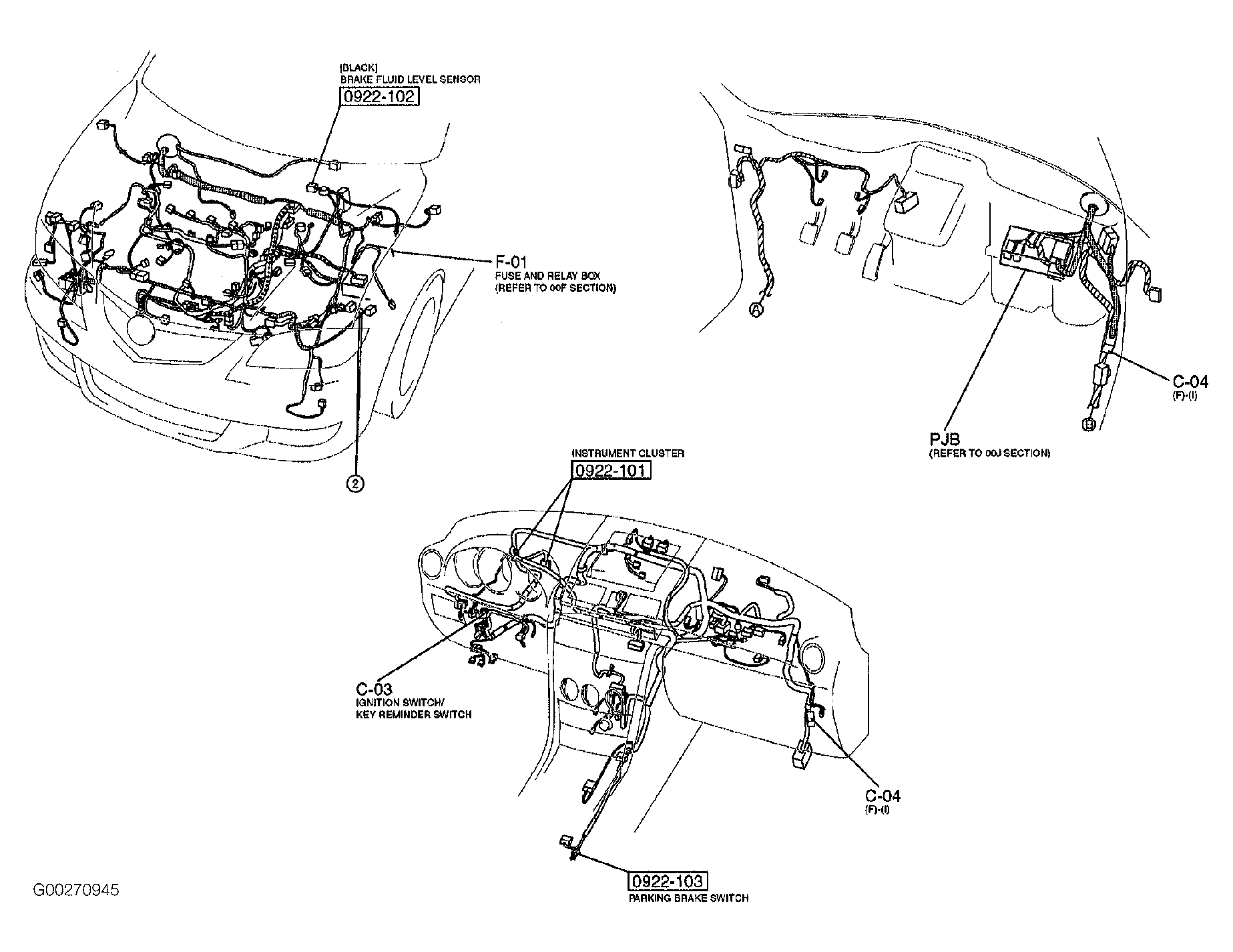

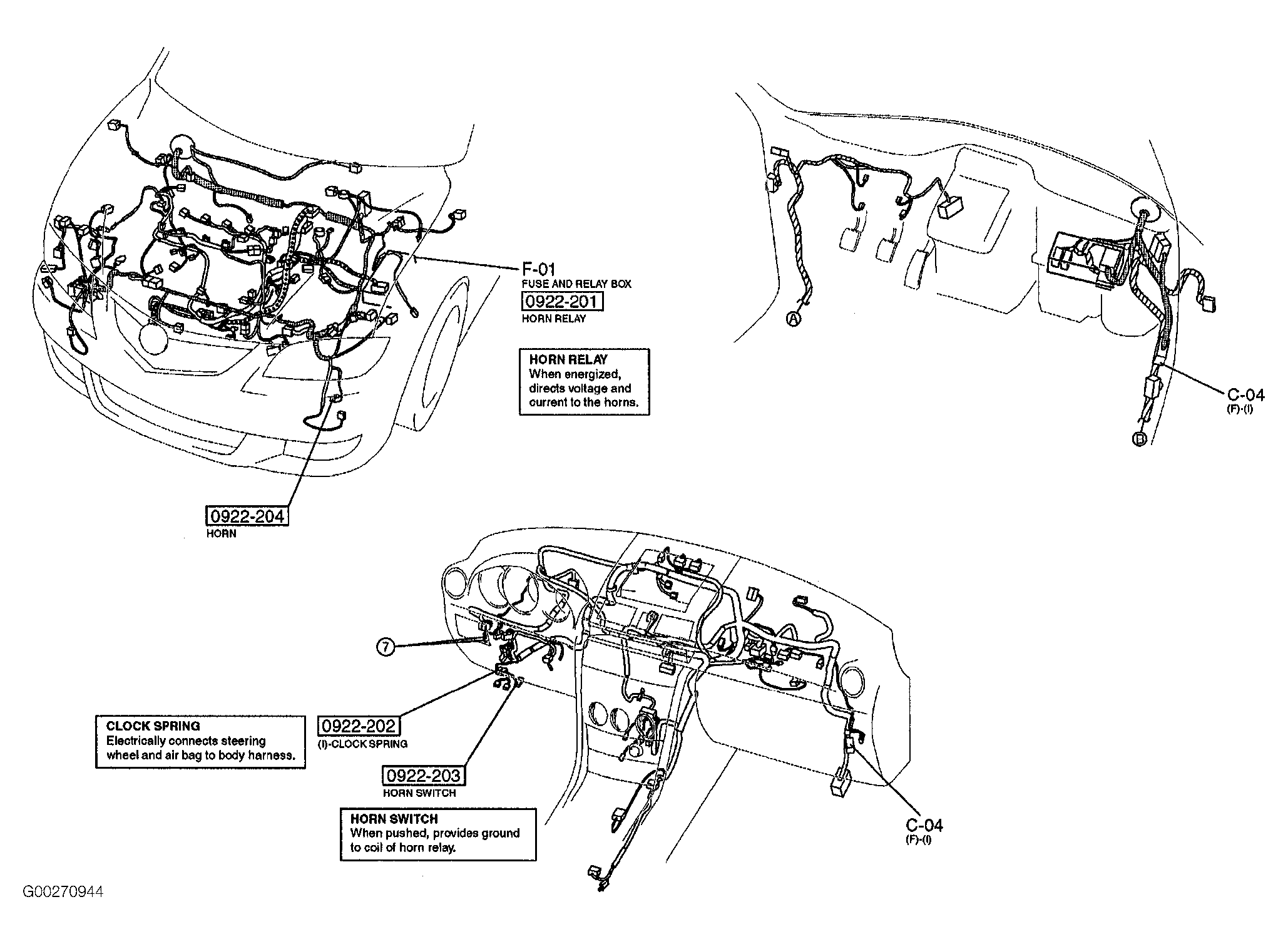

Fuse And Relay Box Left rear of engine compartment. See Figure .
Passenger Junction Box (PJB) Behind right side of dash. See Figure .
