Headlamp Control Module: Locations

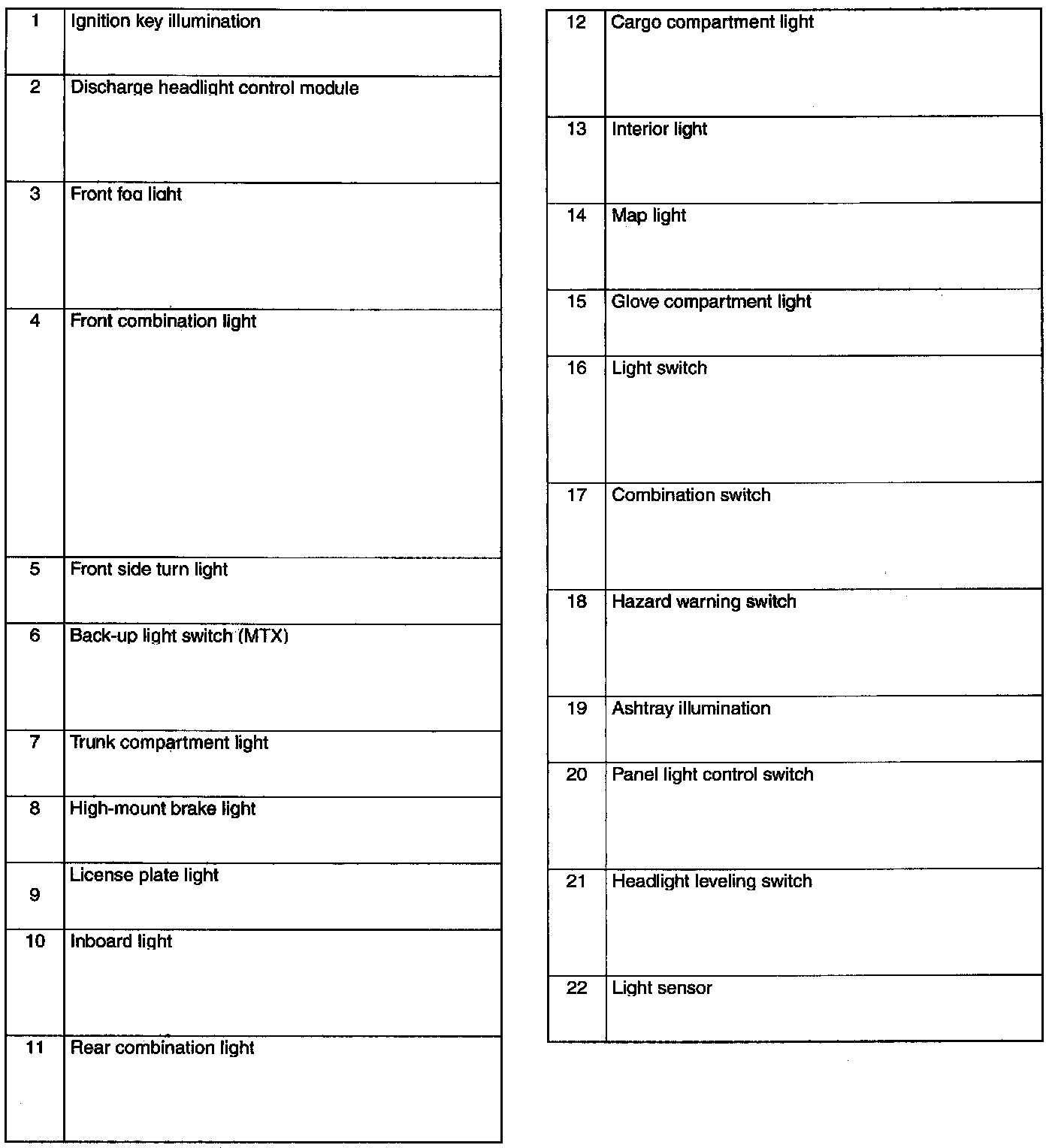

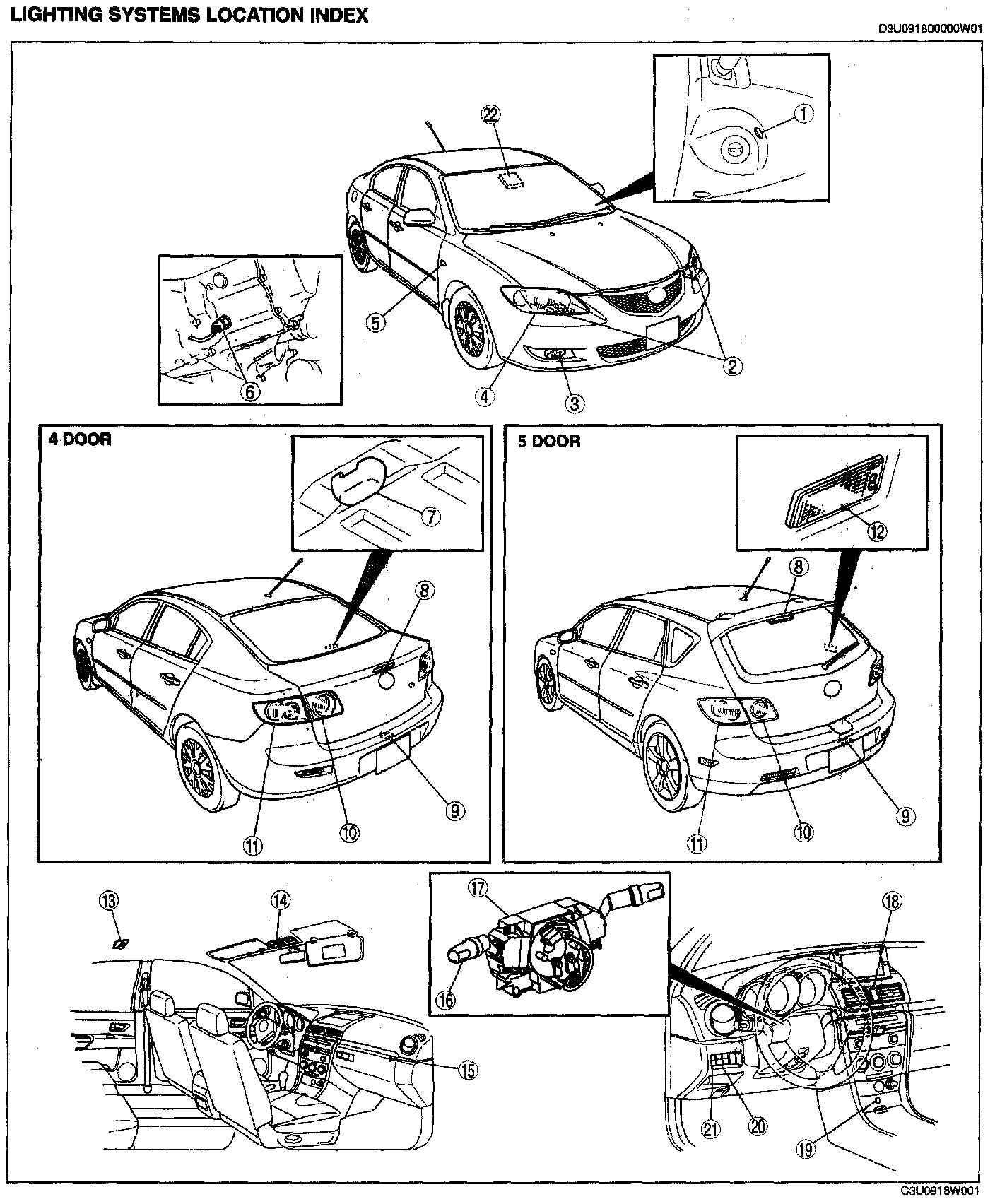

Lighting Systems Location Index Part 1:



Lighting Systems Location Index Part 2:

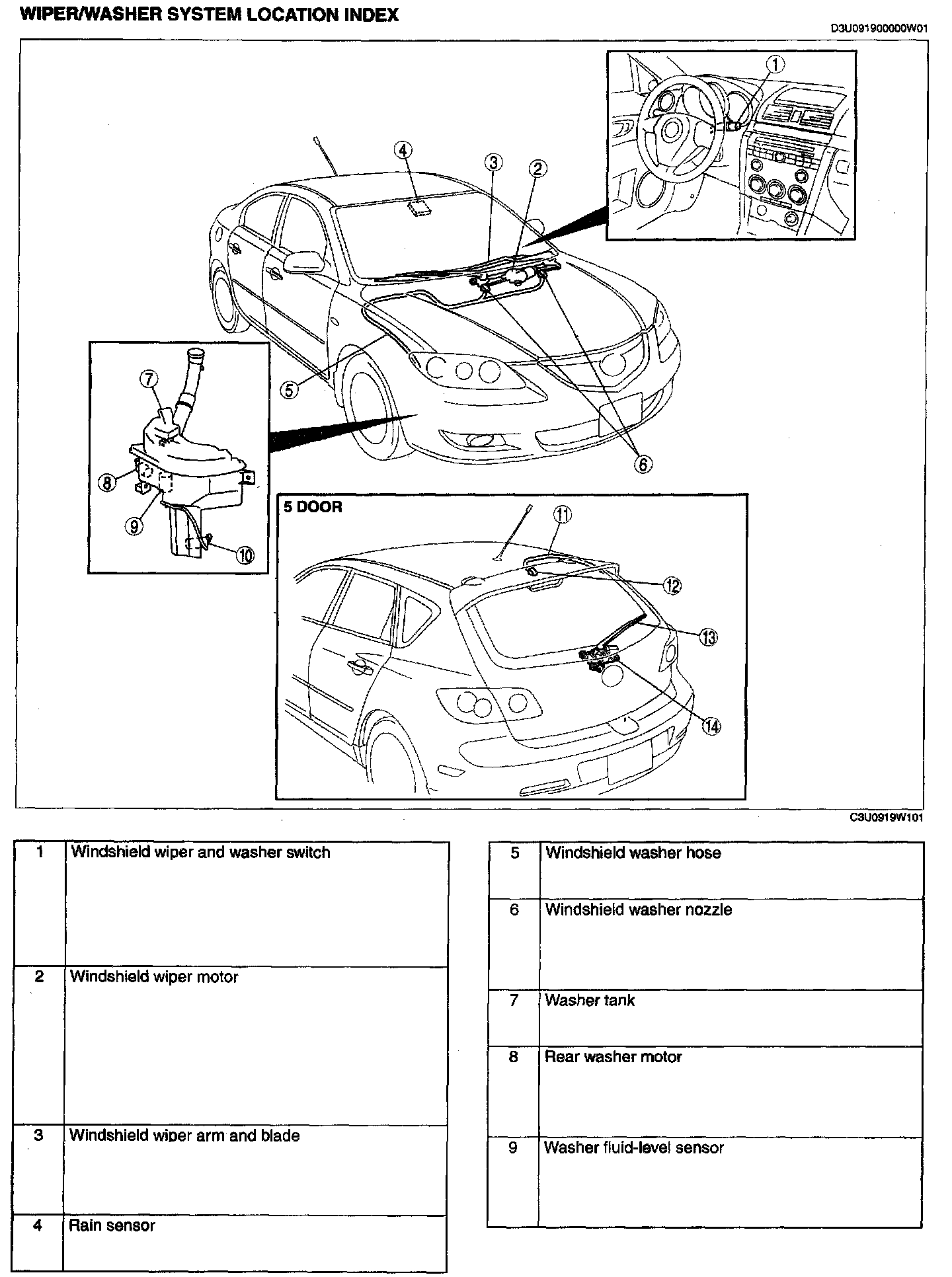

Wiper/Washer System Location Index Part 1:



Wiper/Washer System Location Index Part 2:
