Car-Navigation System (Standard Type Audio)

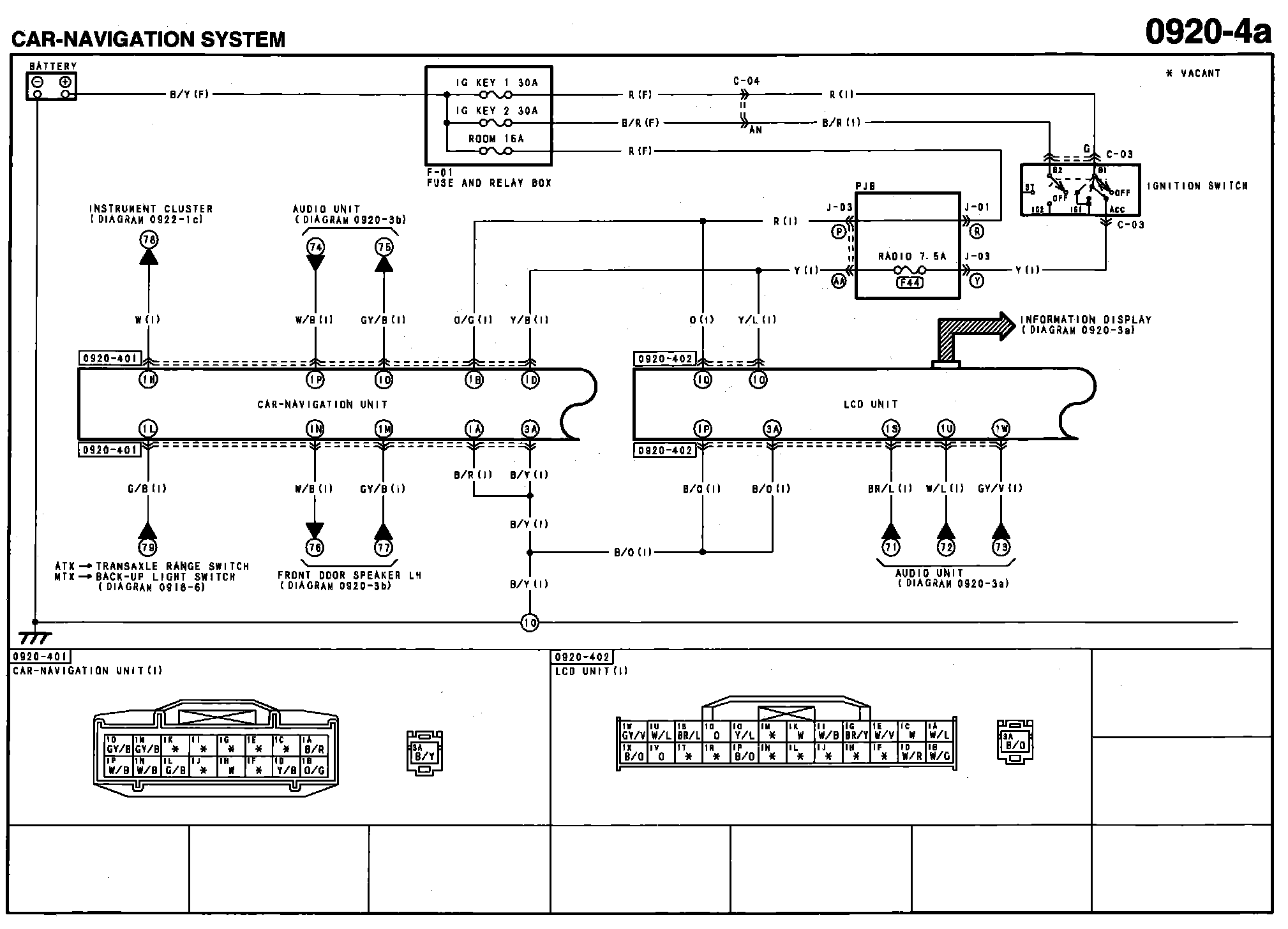

Diagram 0920-4a:

Routing View 0920-4a:

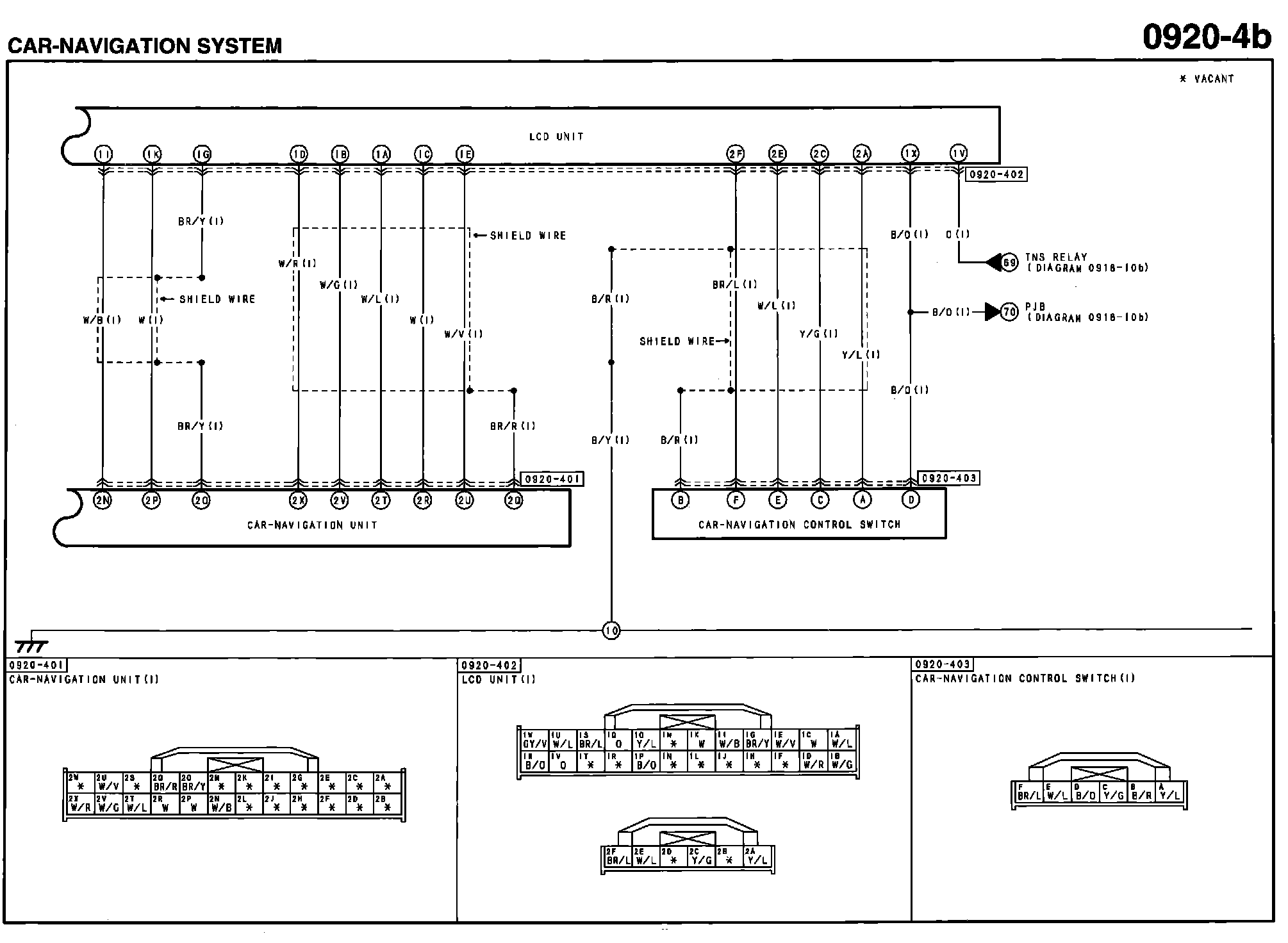

Diagram 0920-4b:

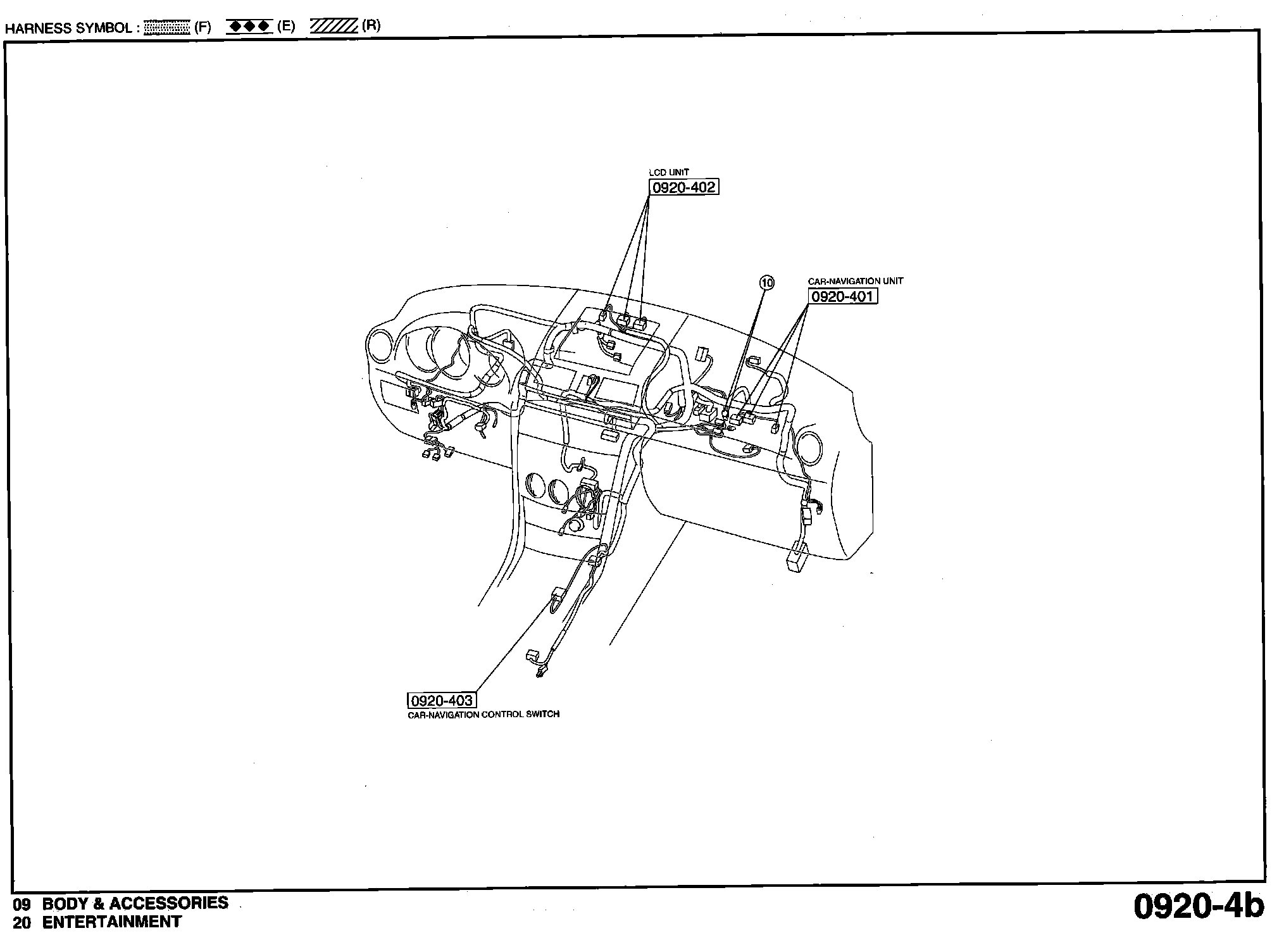

Routing View 0920-4b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
