DTC P0402: EGR System Malfunction

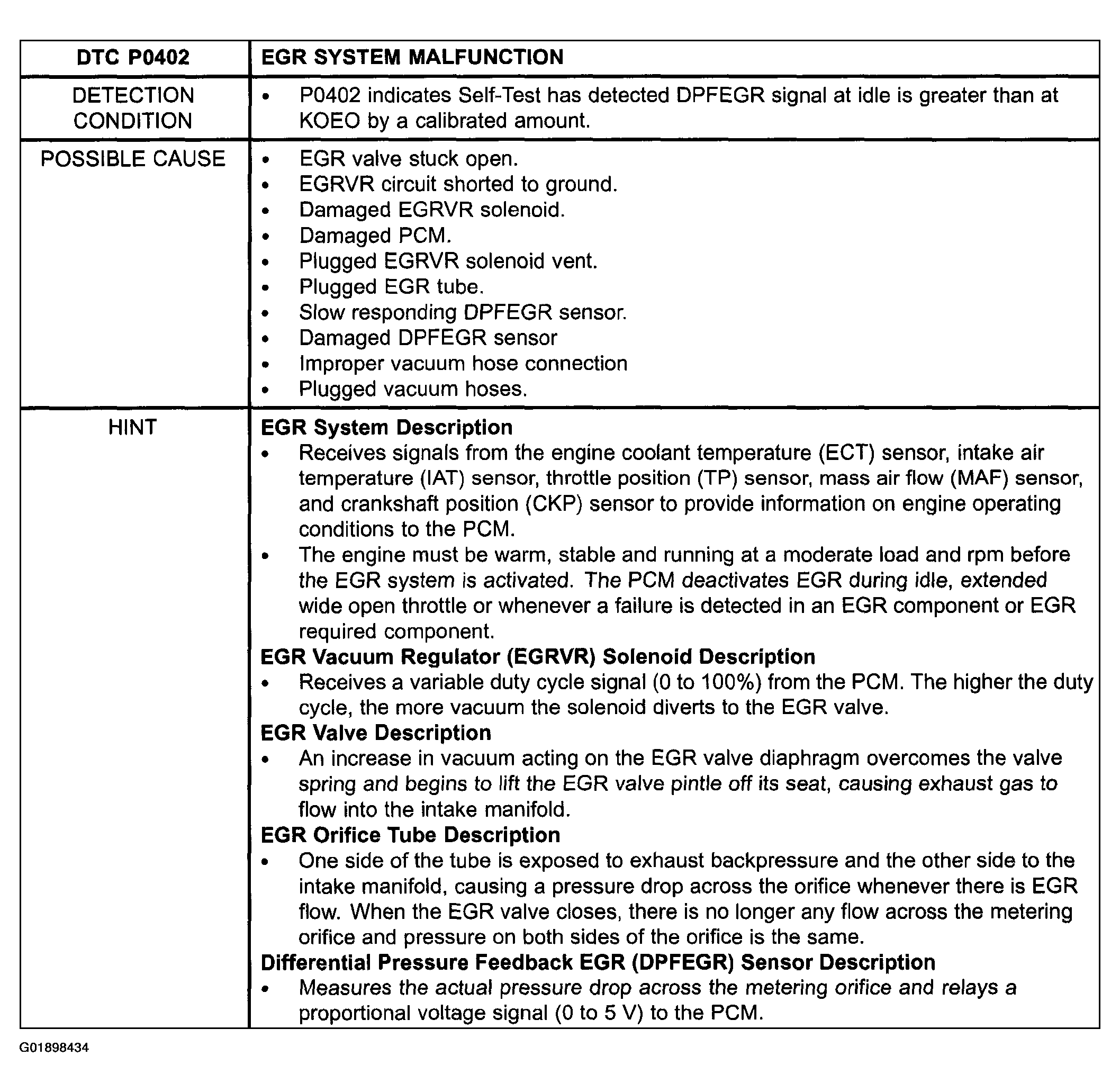

Fig 1: EGR System Malfunction Troubleshooting Procedure (1 Of 2)
G01898434Courtesy of FORD MOTOR CO.

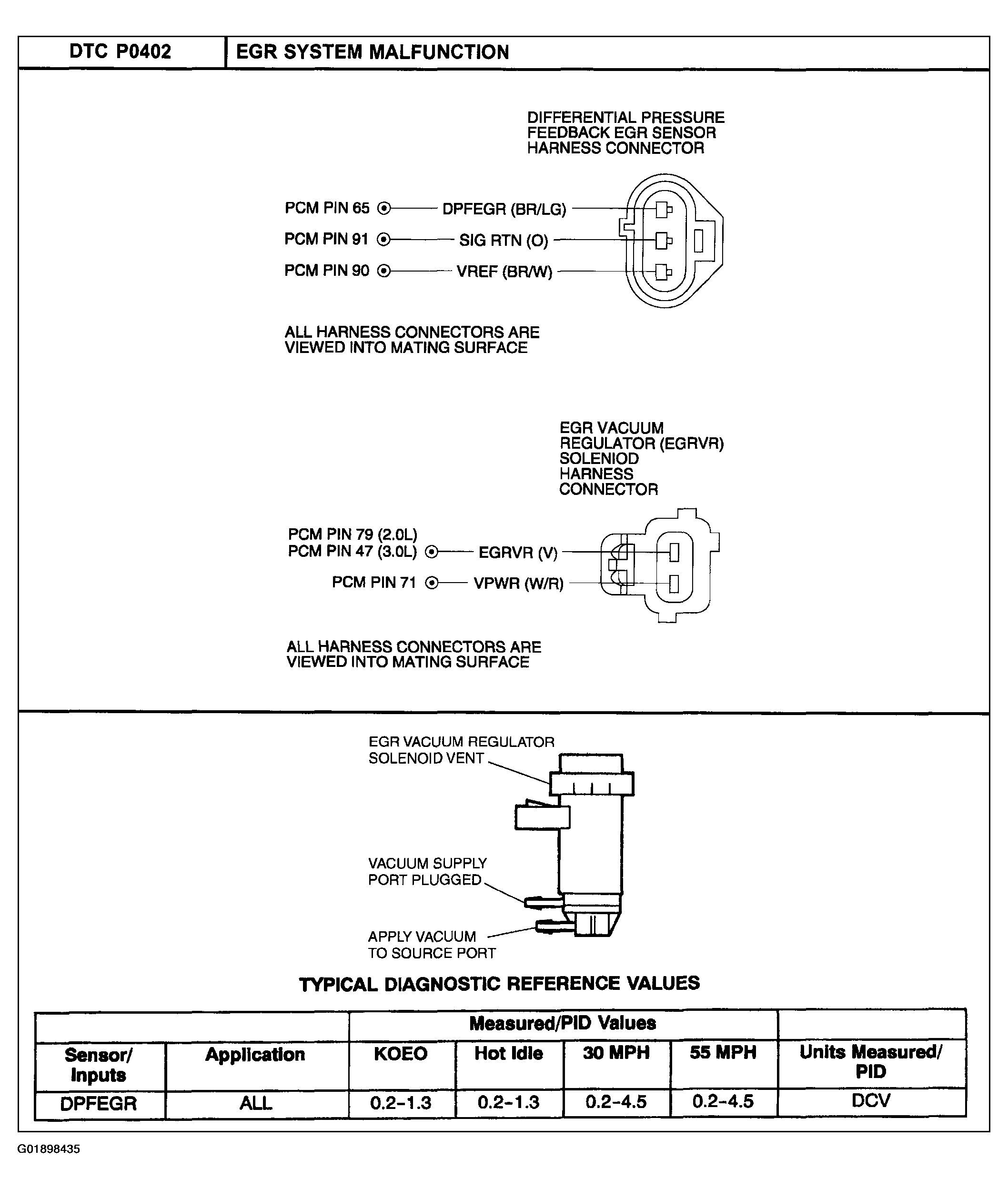

Fig 2: EGR System Malfunction Troubleshooting Procedure (2 Of 2)
G01898435Courtesy of FORD MOTOR CO.

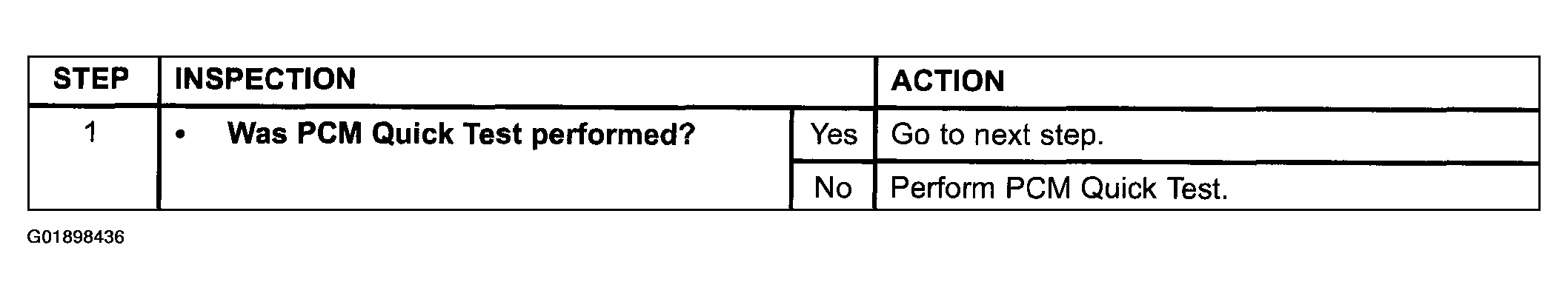

Fig 3: EGR System Malfunction Inspection Procedure (1 Of 7)
G01898436Courtesy of FORD MOTOR CO.

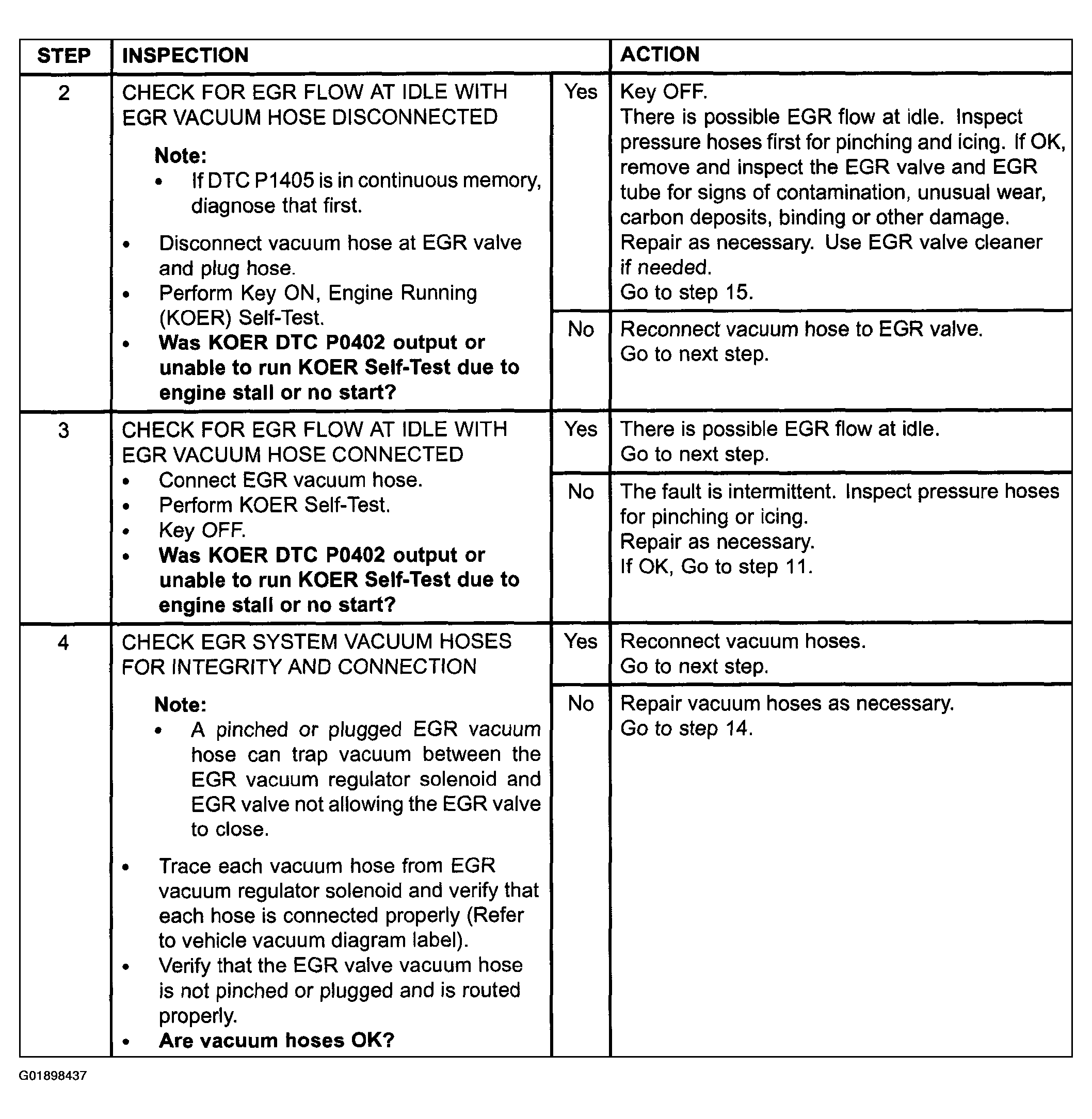

Fig 4: EGR System Malfunction Inspection Procedure (2 Of 7)
G01898437Courtesy of FORD MOTOR CO.
Fig 5: EGR System Malfunction Inspection Procedure (3 Of 7)
G00983437Courtesy of FORD MOTOR CO.
Fig 6: EGR System Malfunction Inspection Procedure (4 Of 7)
G00983438Courtesy of FORD MOTOR CO.
Fig 7: EGR System Malfunction Inspection Procedure (5 Of 7)
G00983439Courtesy of FORD MOTOR CO.

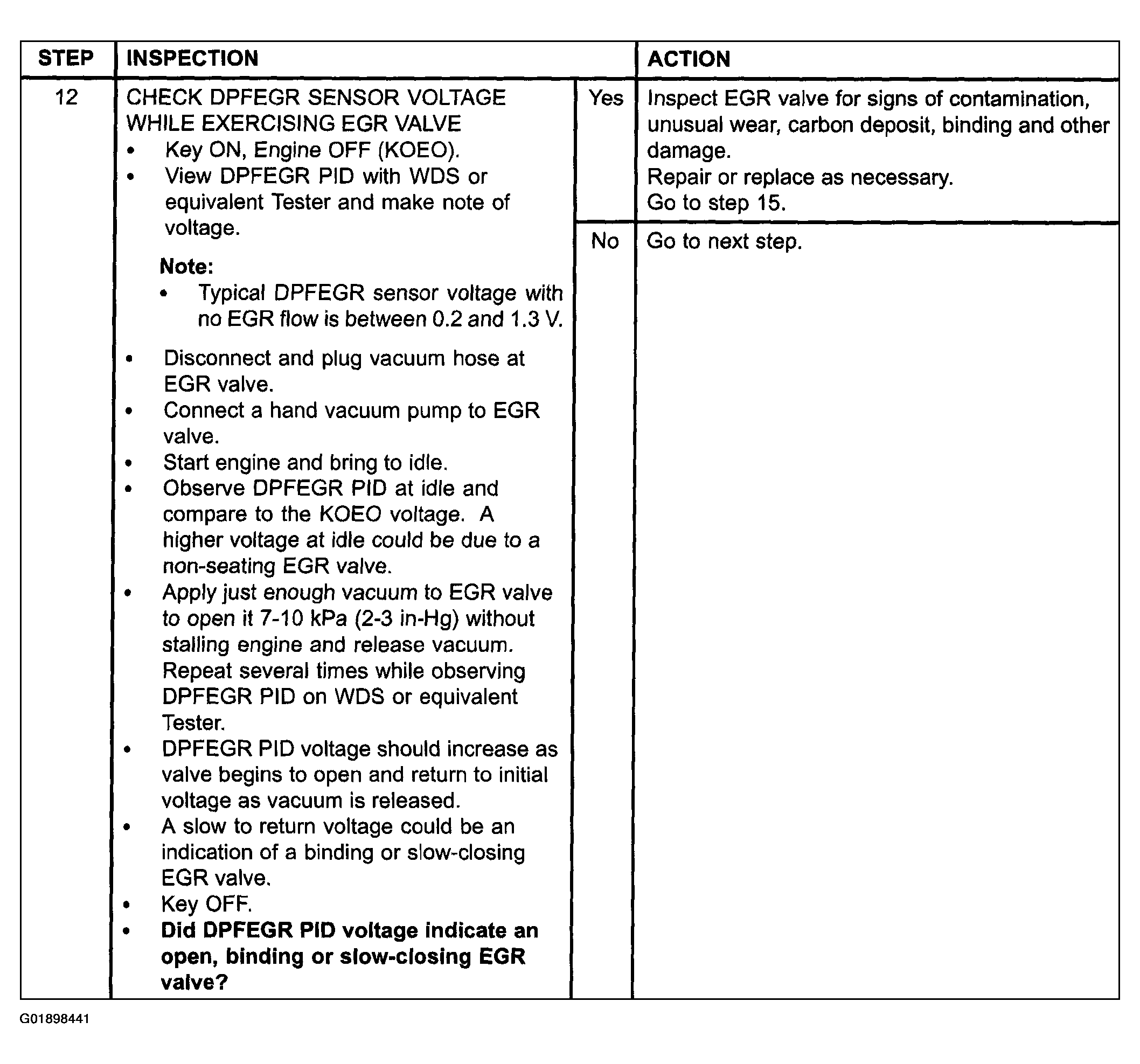

Fig 8: EGR System Malfunction Inspection Procedure (6 Of 7)
G01898441Courtesy of FORD MOTOR CO.
Fig 9: EGR System Malfunction Inspection Procedure (7 Of 7)
G00983441Courtesy of FORD MOTOR CO.
