Disassembly Note

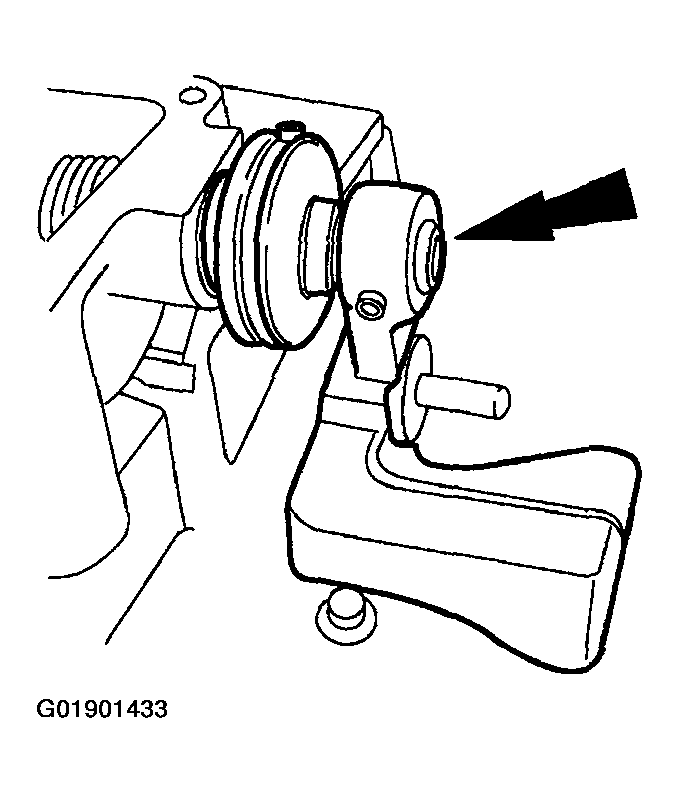

Fig 1: Removing And Discard Roll Pins

Courtesy of MAZDA MOTORS CORP.

Remove and discard the roll pins.

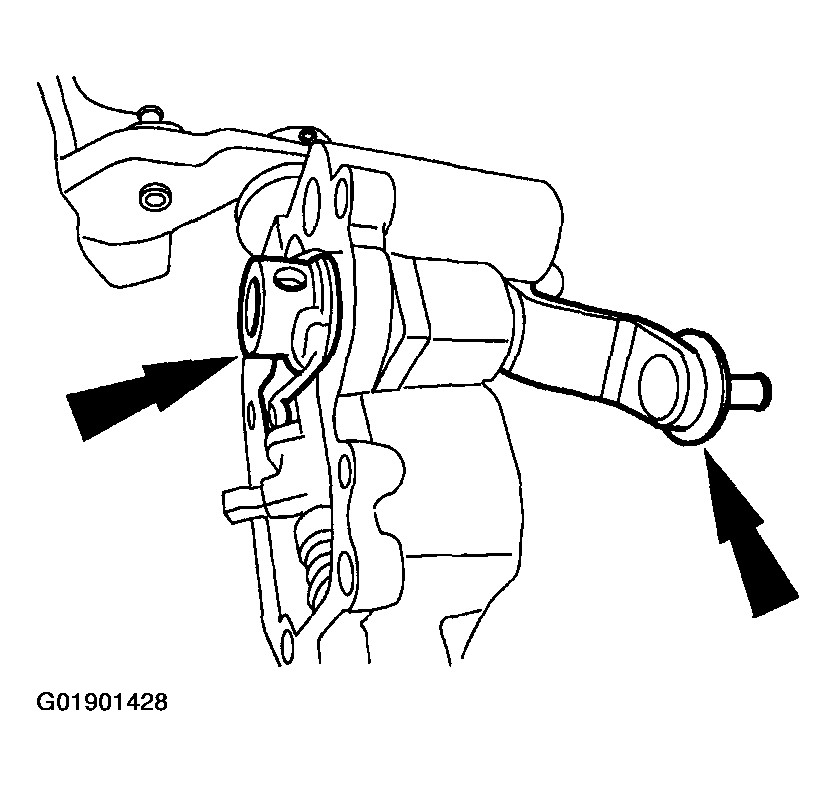

Fig 2: Removing Shift Pawl And Shift Shaft
Courtesy of MAZDA MOTORS CORP.
Remove the shift pawl and the shift shaft.

Fig 3: Removing Shift Shaft Seal
Courtesy of MAZDA MOTORS CORP.
If required remove the shift shaft seal.

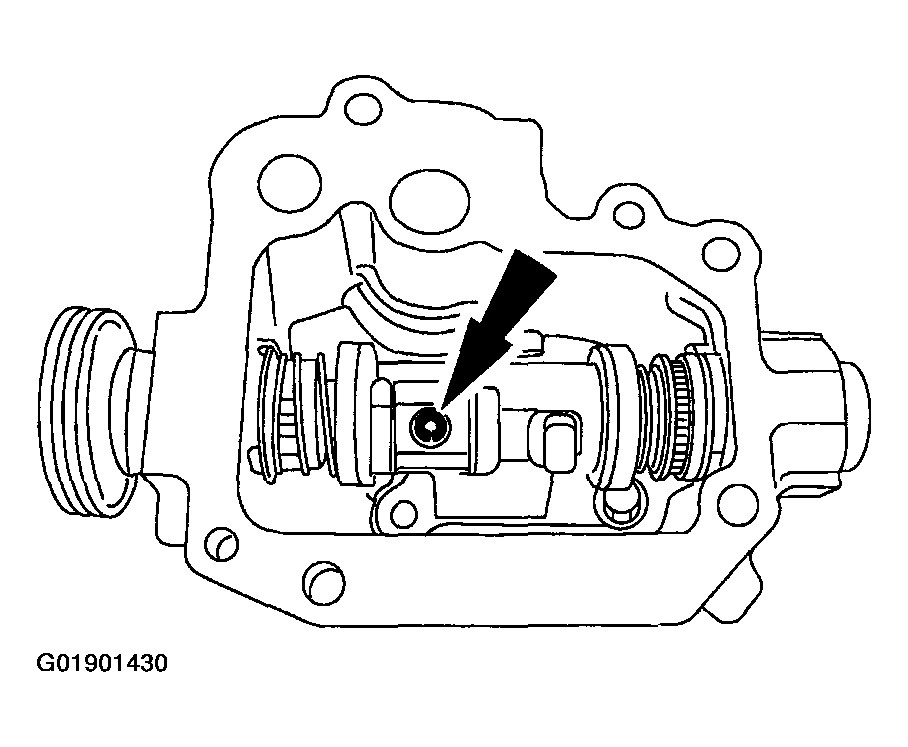

Fig 4: Removing Roll Pin
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Place the shift cam index pin in the small gate towards the reverse shifter lever.
NOTE:
- The roll pin will not remove completely and will be retained in the shift cam and must be bottomed out on the shifter housing.
Remove the roll pin.

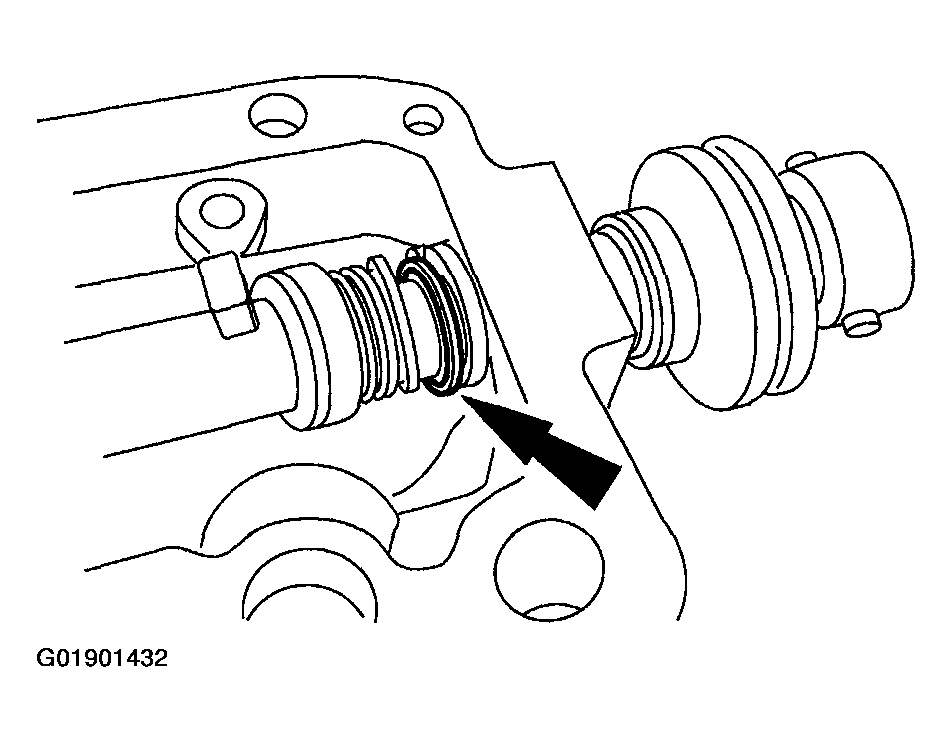

Fig 5: Prying Back Spring Retainer And Remove Circlip (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Pry back the spring retainer and remove the circlip.

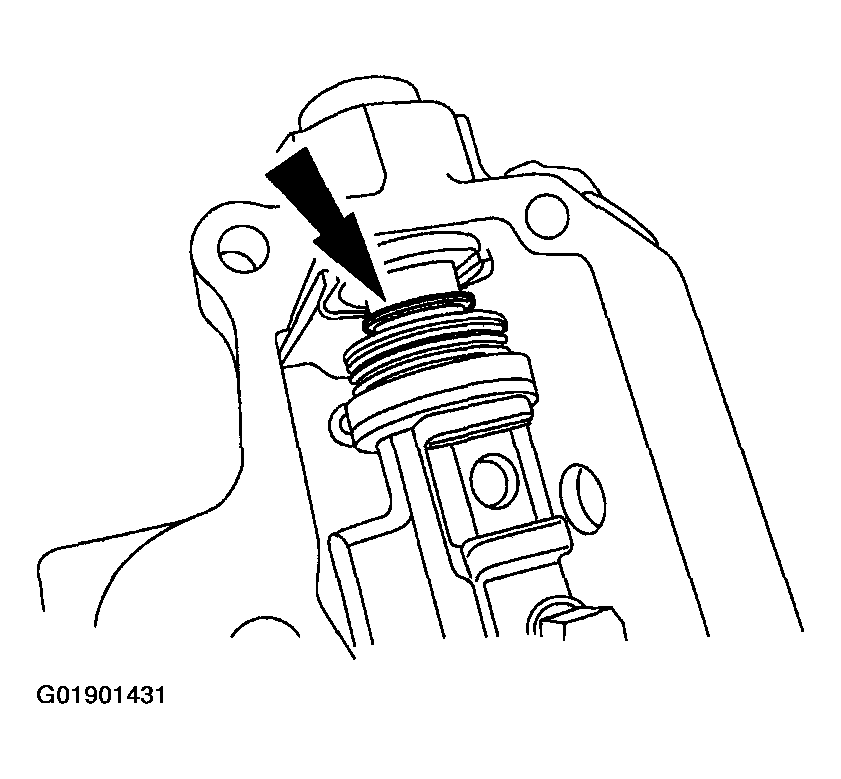

Fig 6: Prying Back Spring Retainer And Remove Circlip (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Pry back the spring retainer and remove the circlip.

Fig 7: Removing Shift Rod
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Note the position of the shifter components for reference during assembly.
NOTE:
- Cover the shifter components with a shop rag to prevent loss during removal of the shift rod.
Remove the shift rod.

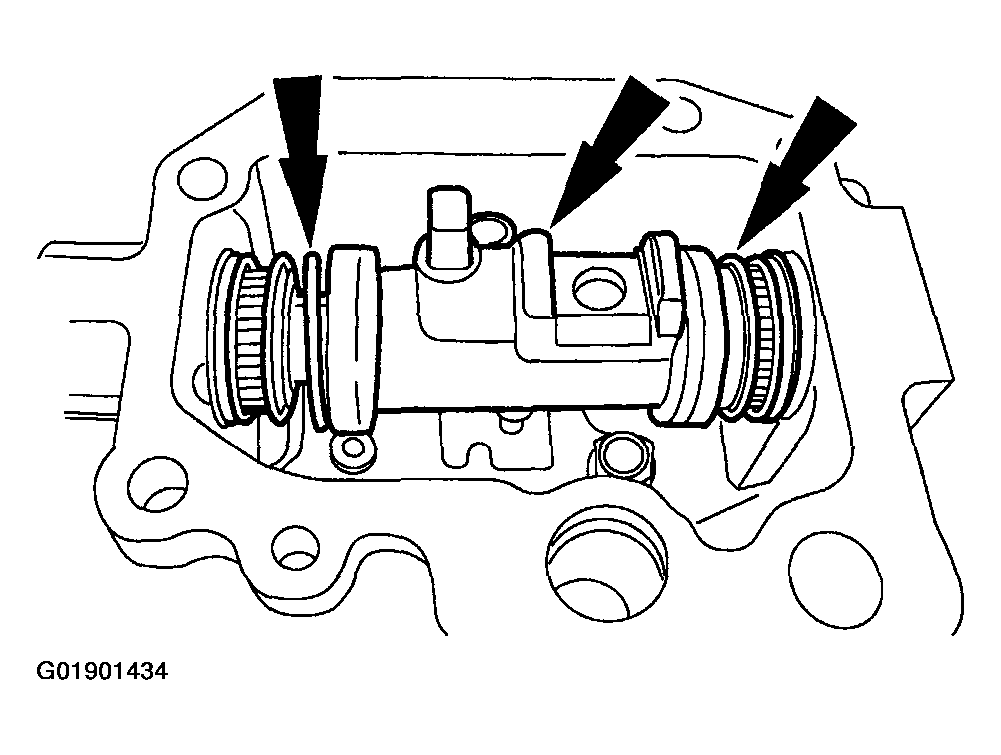

Fig 8: Removing Shift Cam And Spring Assemblies
Courtesy of MAZDA MOTORS CORP.
Remove the shift cam and spring assemblies.

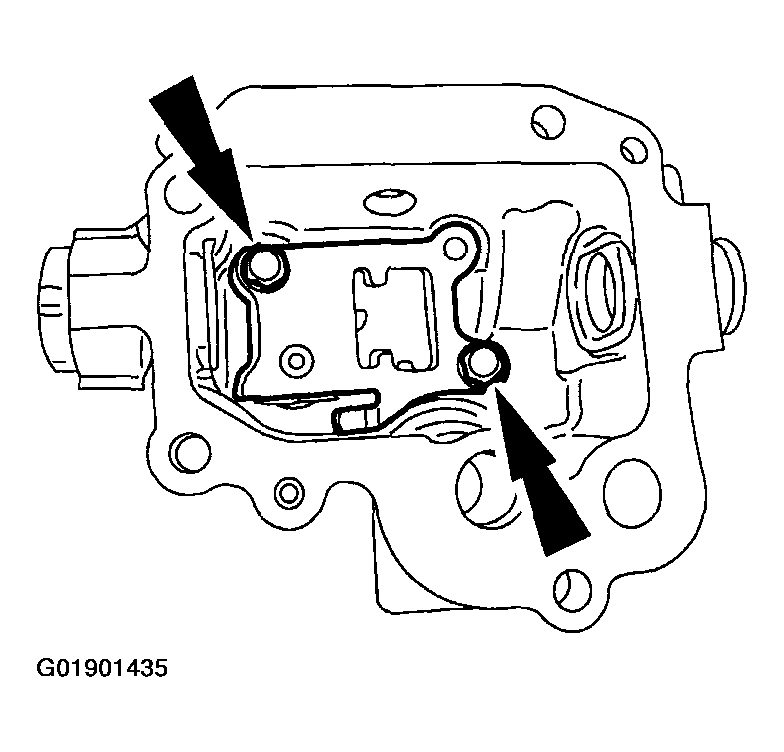

Fig 9: Removing Shift Gate
Courtesy of MAZDA MOTORS CORP.
Remove the shift gate.
