Gearshift Cable Adjustment

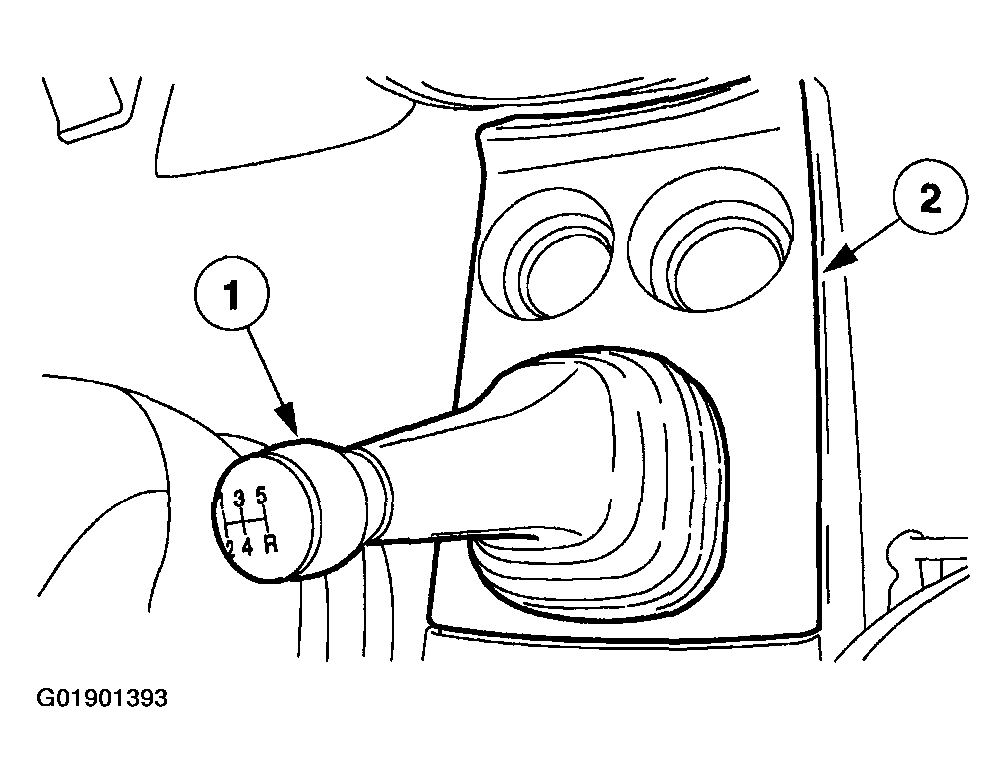

Fig 1: Removing Center Console Trim And Gearshift Lever Boot

Courtesy of MAZDA MOTORS CORP.

NOTE:

If necessary, remove the center console trim and gearshift lever boot.
1. Remove the gearshift lever knob.
2. Remove the center console trim and gearshift lever boot.

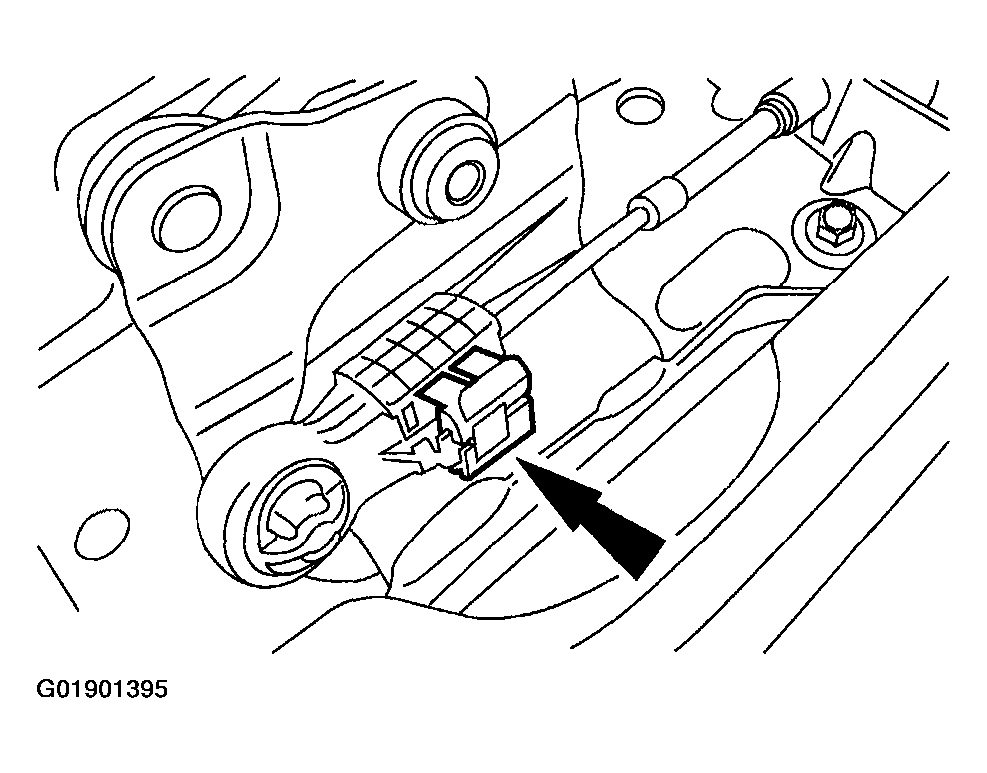

  Fig 2: Releasing Gearshift Cable Adjuster Lock
  Courtesy of MAZDA MOTORS CORP.
Release the gearshift cable adjuster lock.

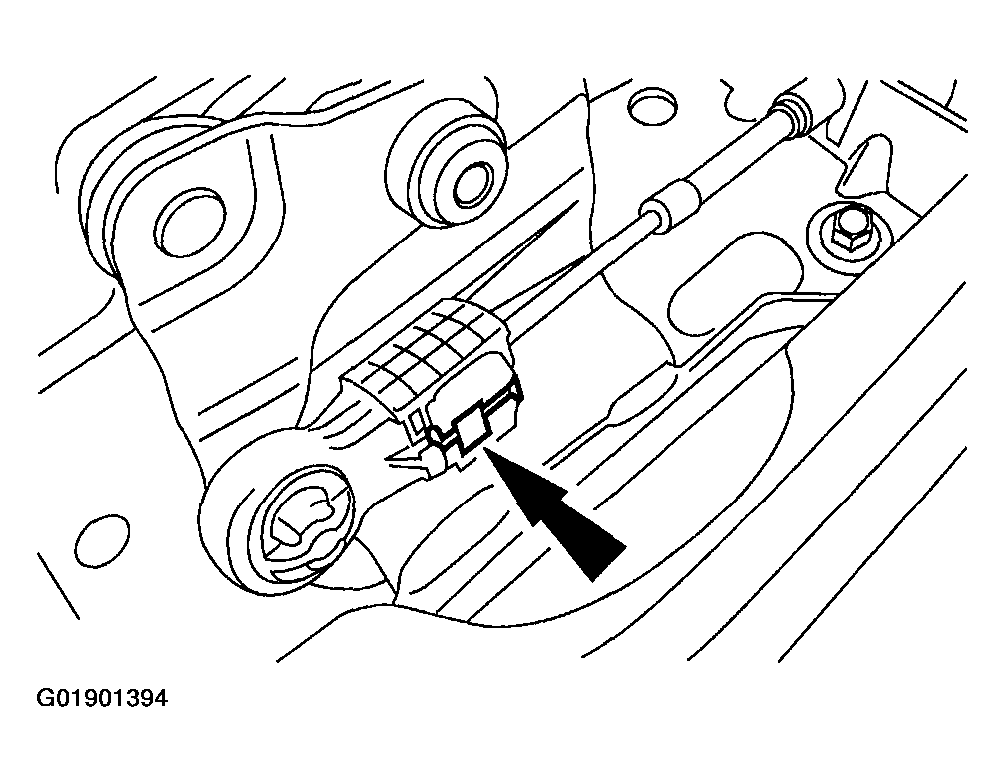

Fig 3: Releasing Gearshift Cable Adjuster
Courtesy of MAZDA MOTORS CORP.
Release the gearshift cable adjuster.

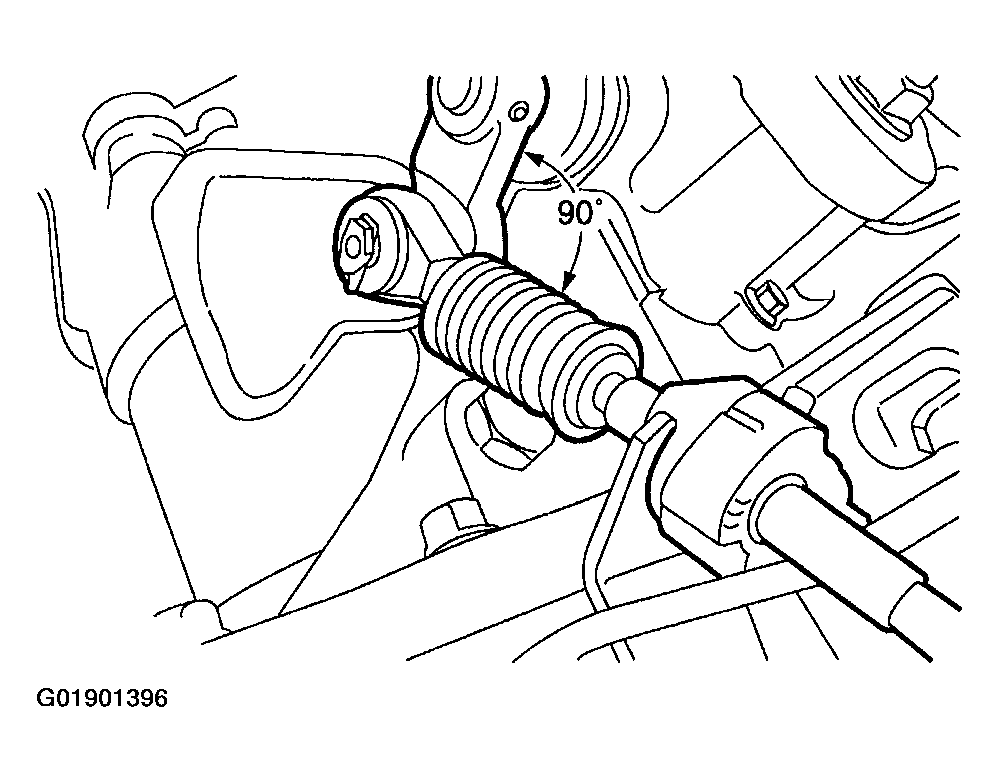

Fig 4: Setting Transaxle In Neutral
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The transaxle is in neutral when the angle between the gearshift lever and the transaxle shift lever is 90 degrees.
Set the transaxle in neutral.

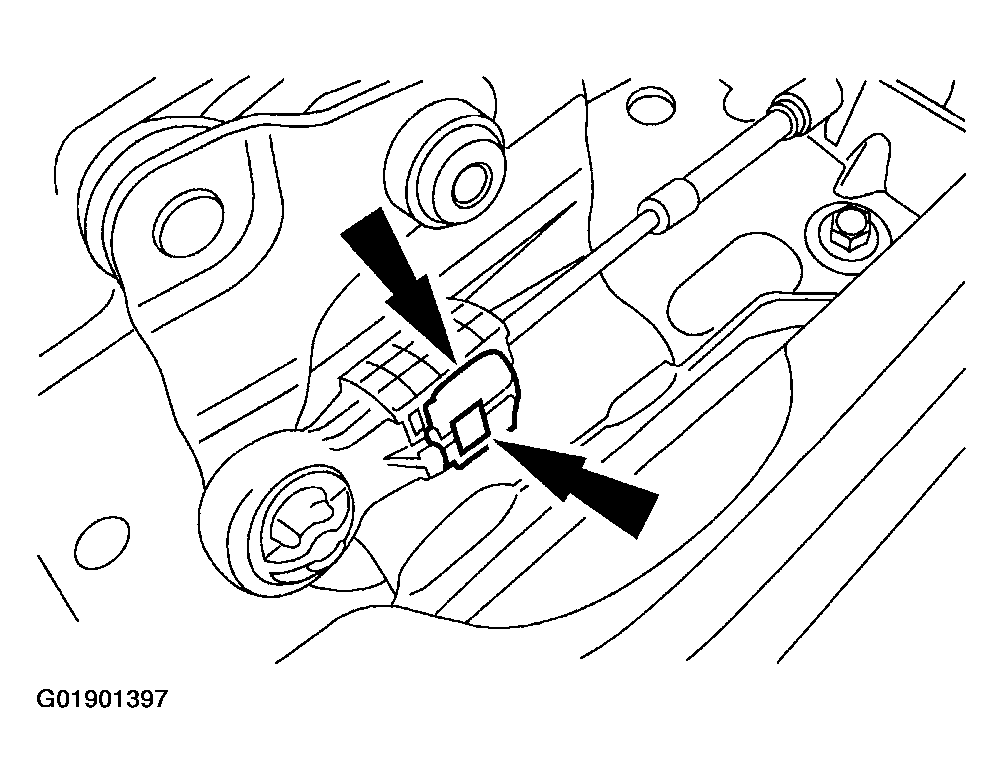

Fig 5: Pushing Adjuster And Secure Lock
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The transaxle is in neutral when the angle between the gearshift lever and the transaxle shift lever is 90 degrees.
Push in the adjuster and secure the lock.

Fig 6: Installing Center Console Trim And Gearshift Lever Boot
Courtesy of MAZDA MOTORS CORP.
If necessary, install the center console trim, the gearshift lever boot assembly and the gearshift lever knob.
