Engine Controls - Trouble Shooting - With & Without Codes
>>
DTC P1309: Misfire Detection Monitor Disabled
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
DTC P1309: Misfire Detection Monitor Disabled

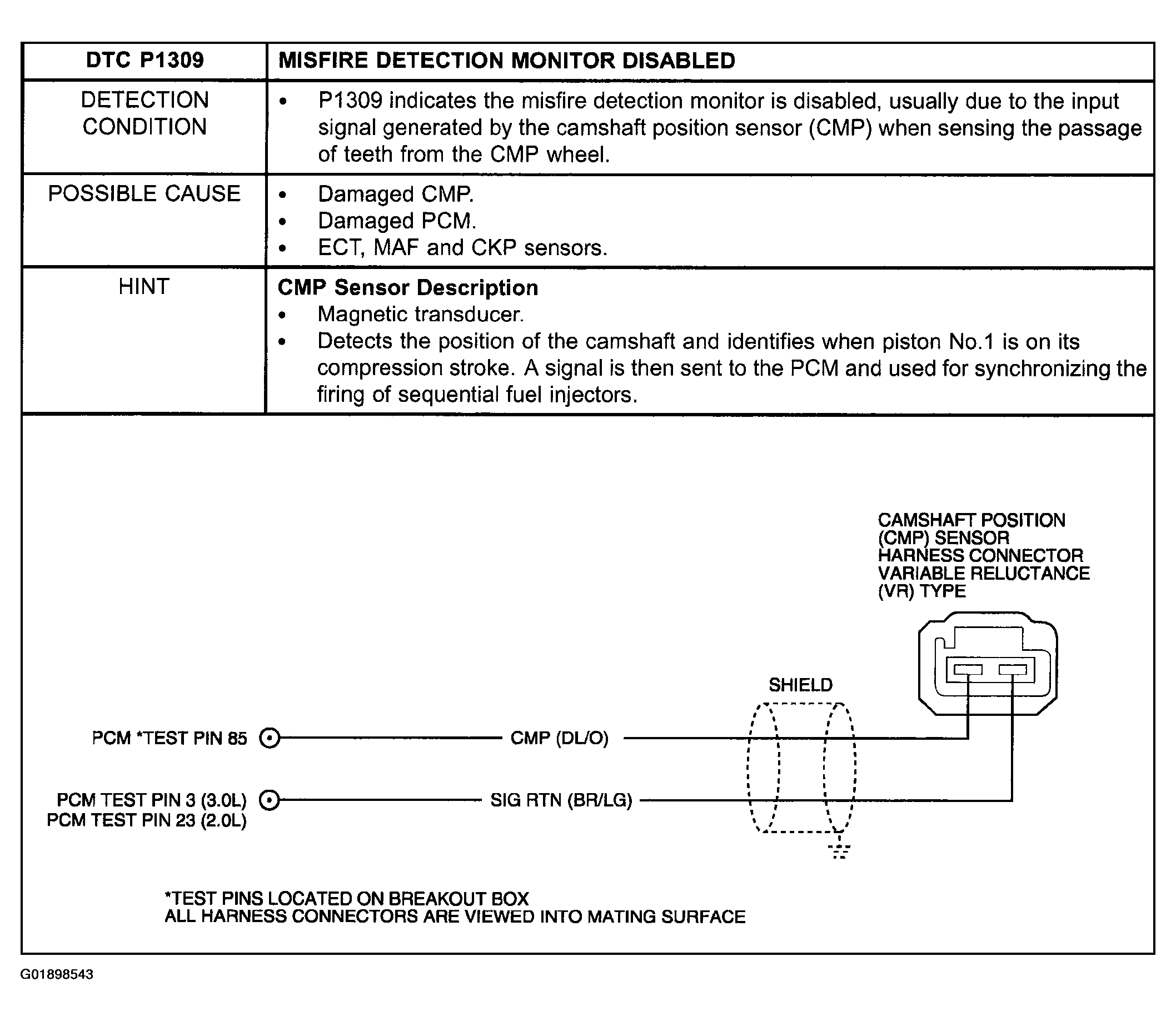

Fig 1: Misfire Detection Monitor Disabled Troubleshooting Procedure
Courtesy of FORD MOTOR CO.

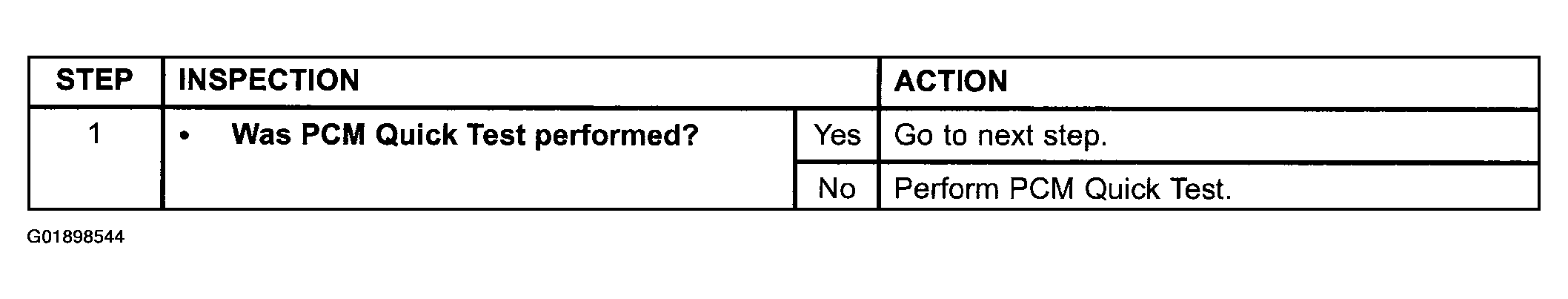

Fig 2: Misfire Detection Monitor Disabled Inspection Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 3: Misfire Detection Monitor Disabled Inspection Procedure (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
