Pinpoint Test 1

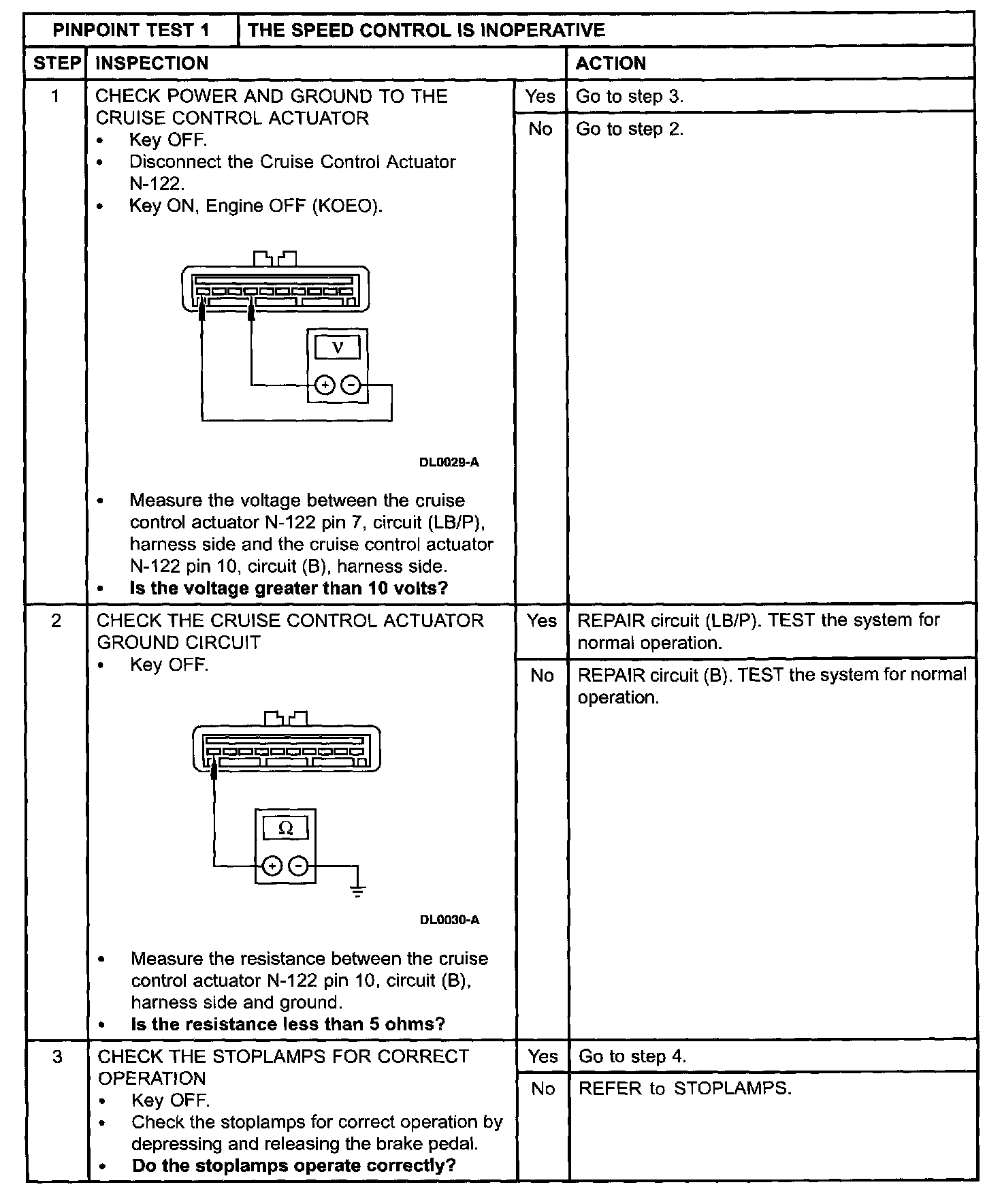

Step 1 - 3:

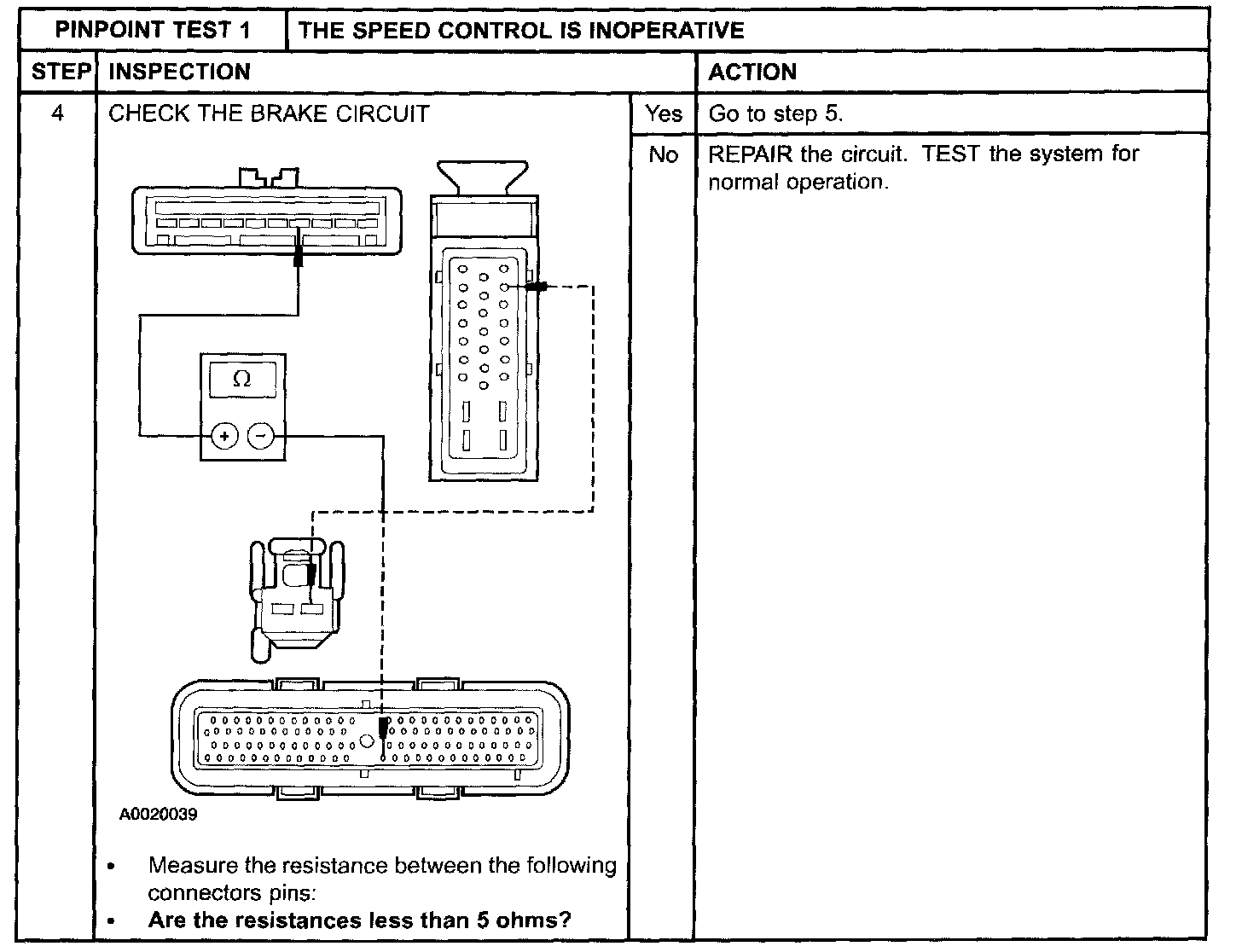

Step 4:

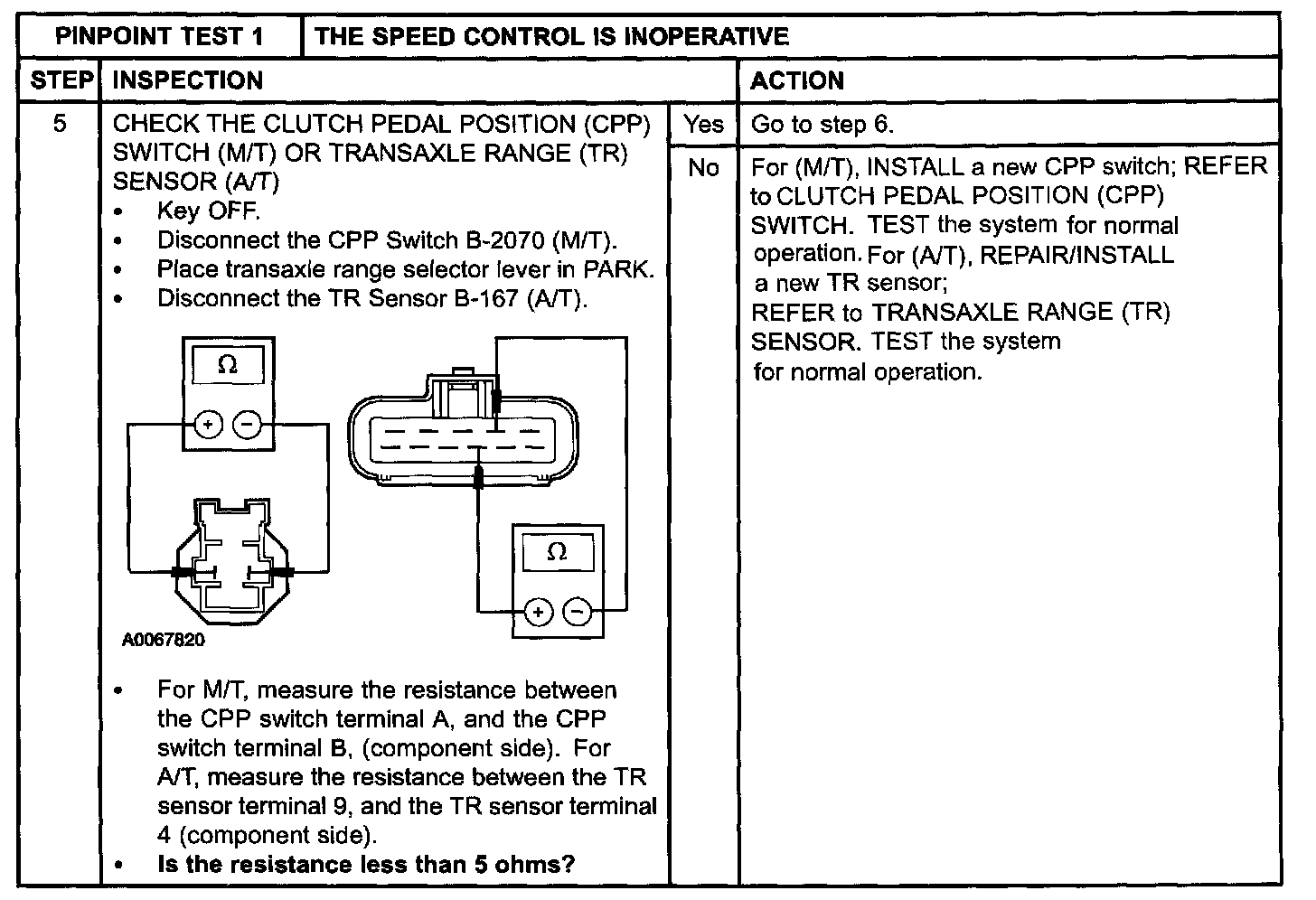

Step 5:

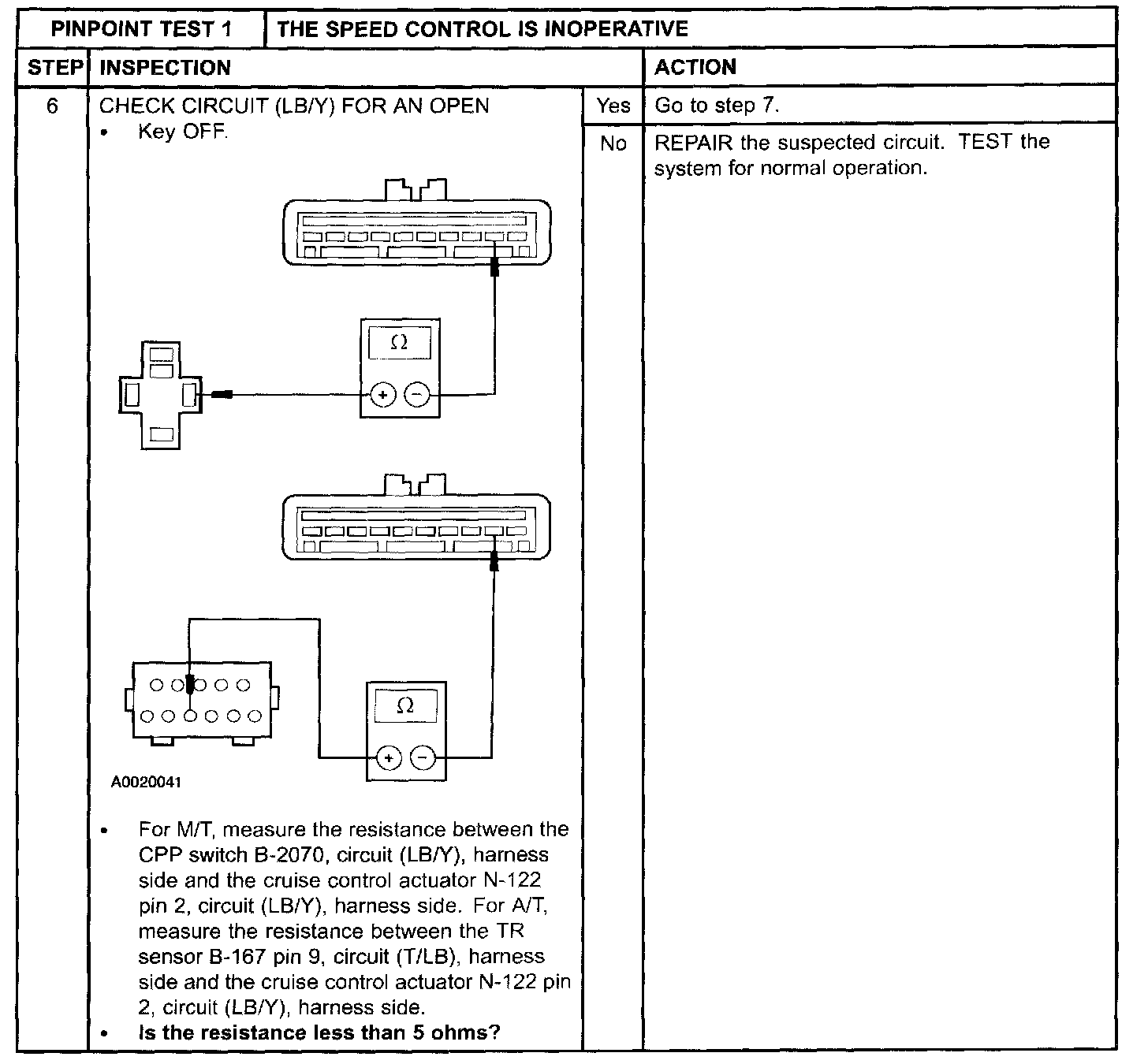

Step 6:

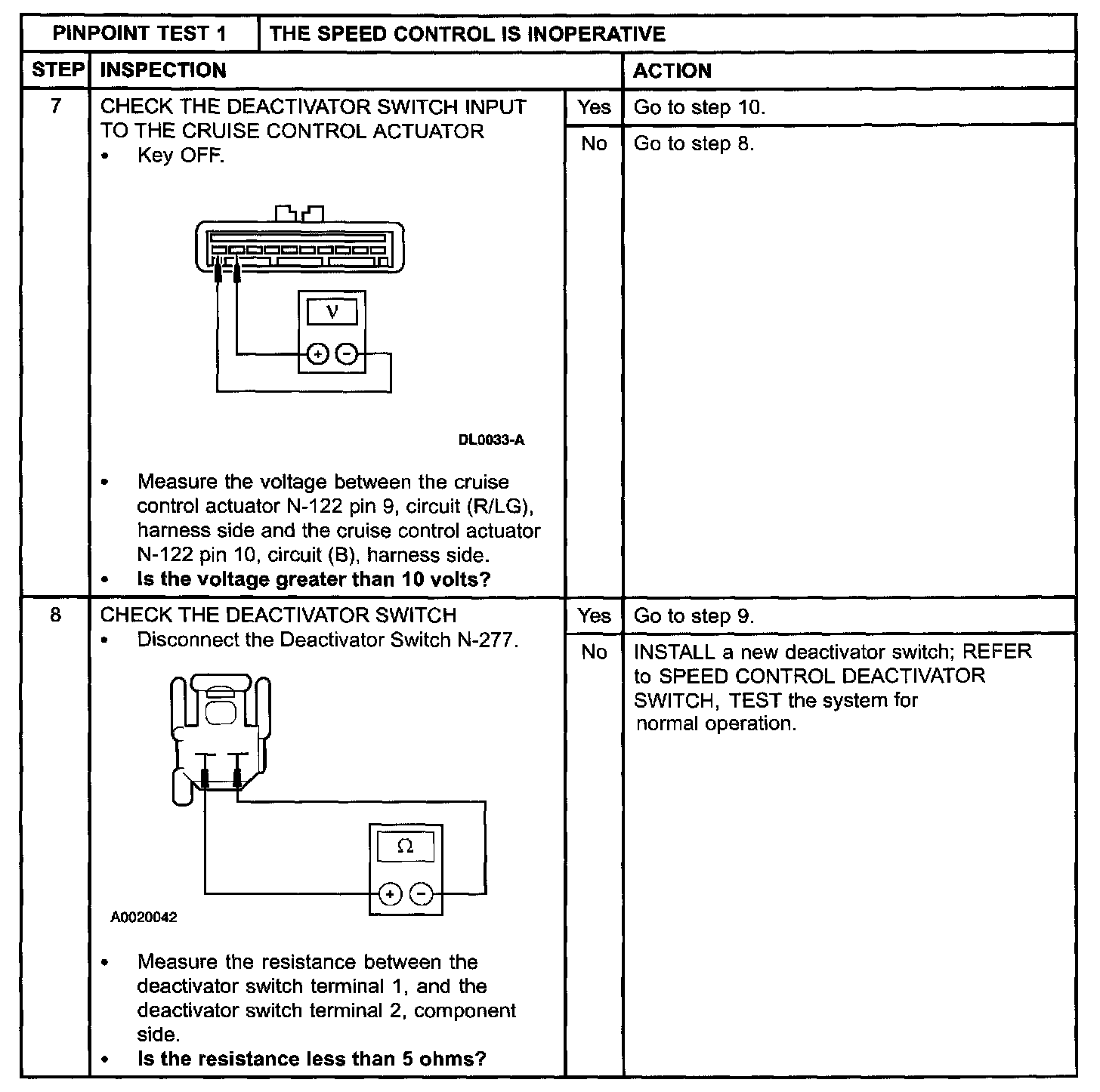

Step 7 - 8:

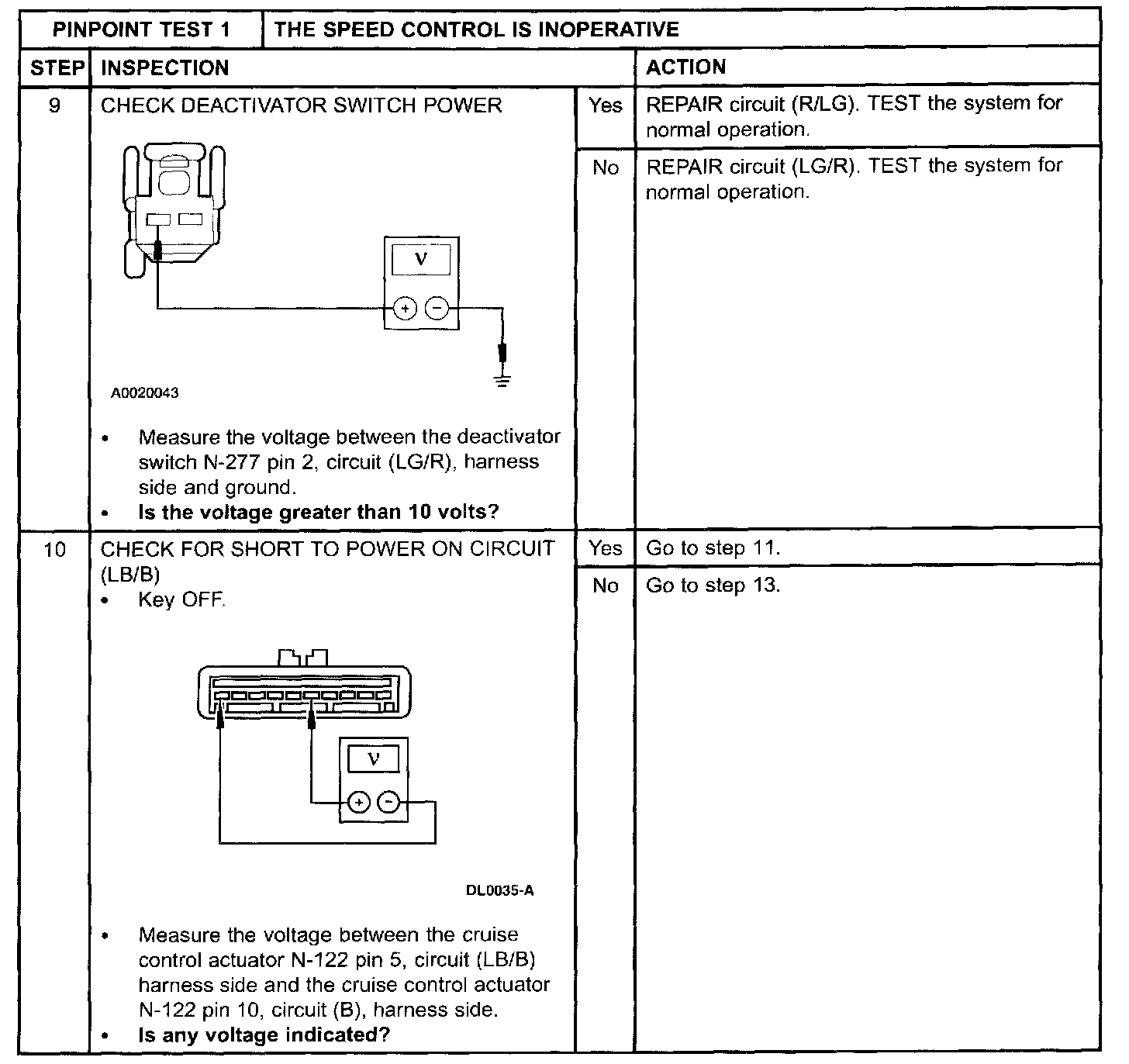

Step 9 - 10:

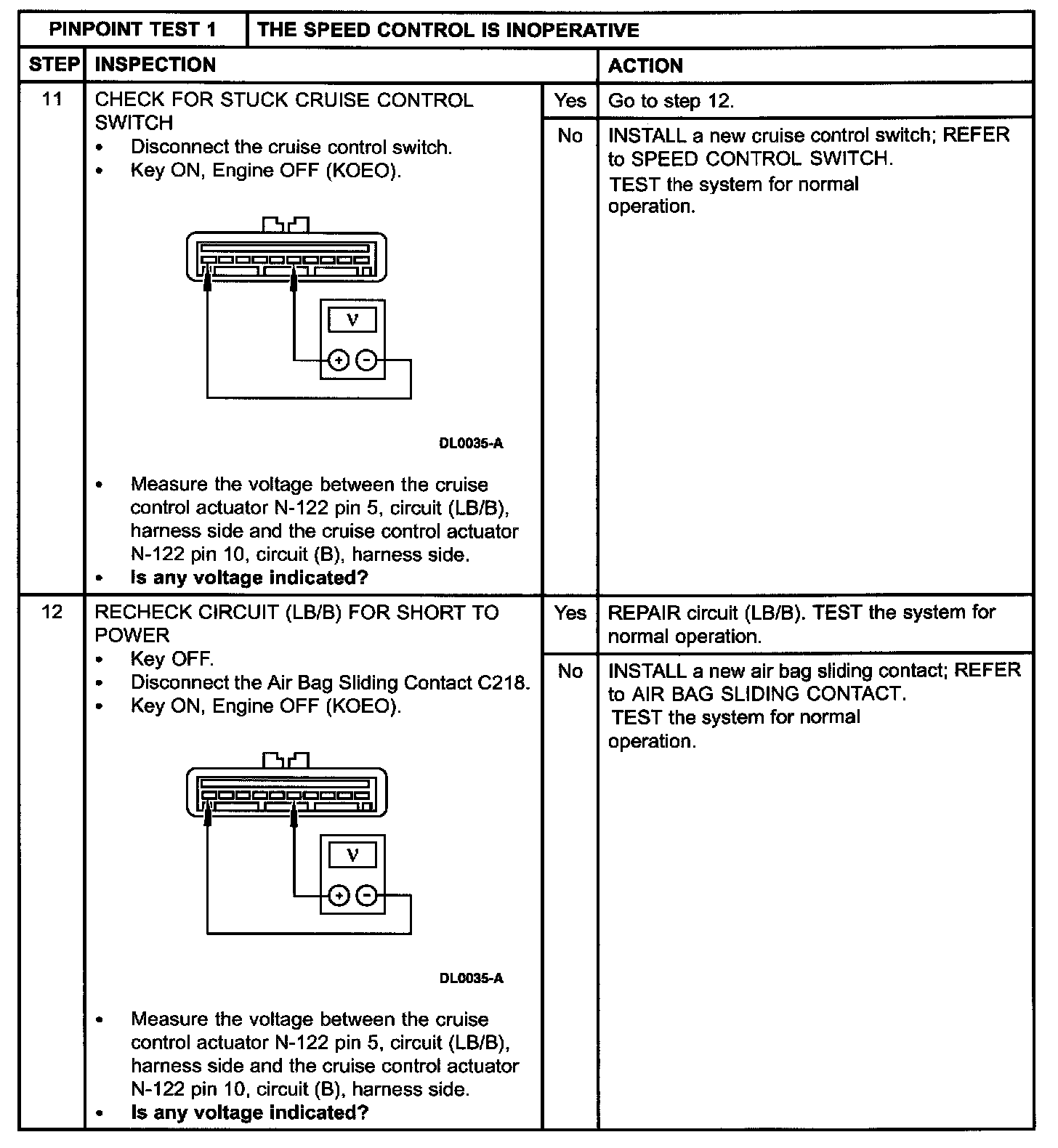

Step 11 - 12:

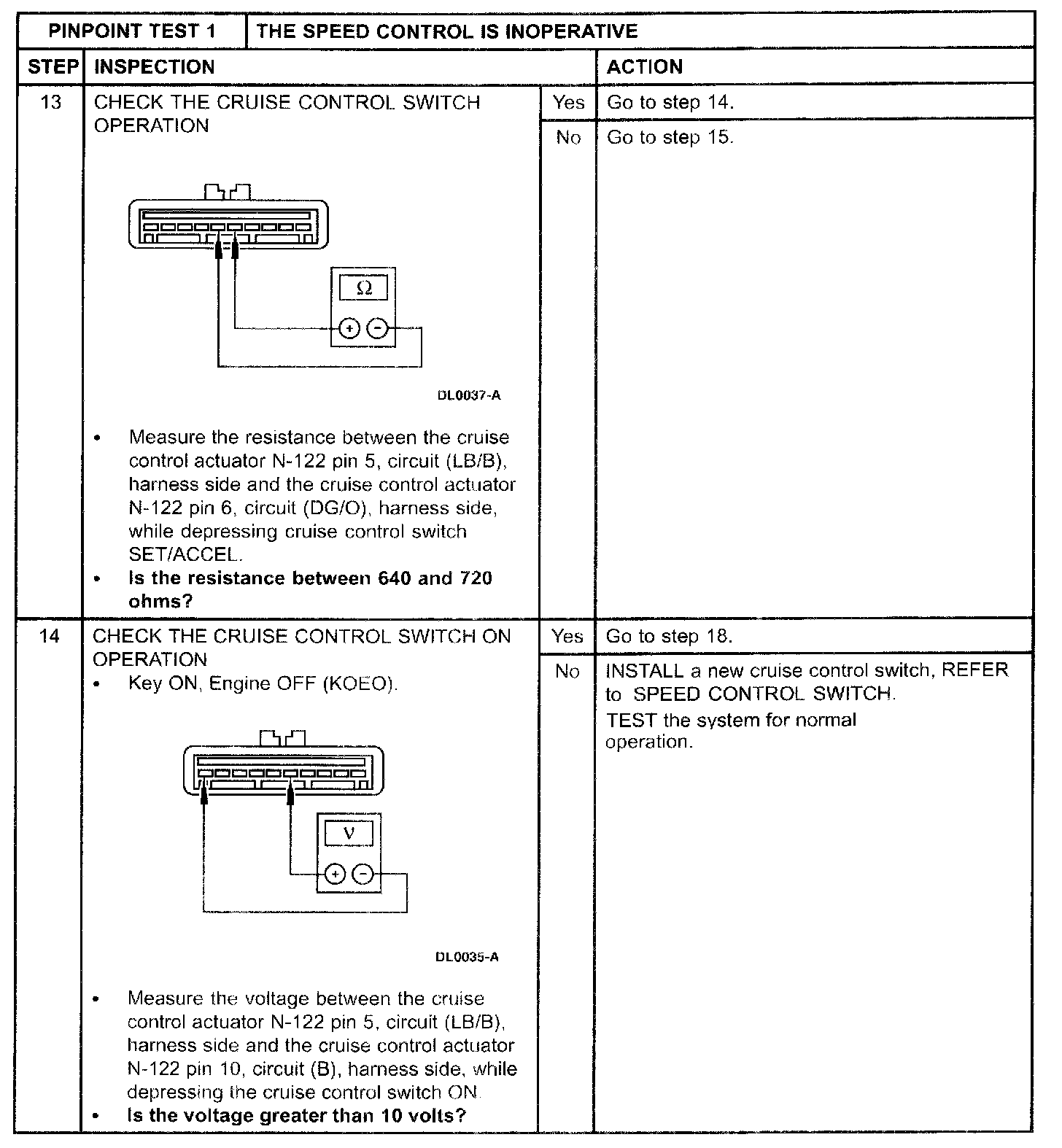

Step 13 - 14:

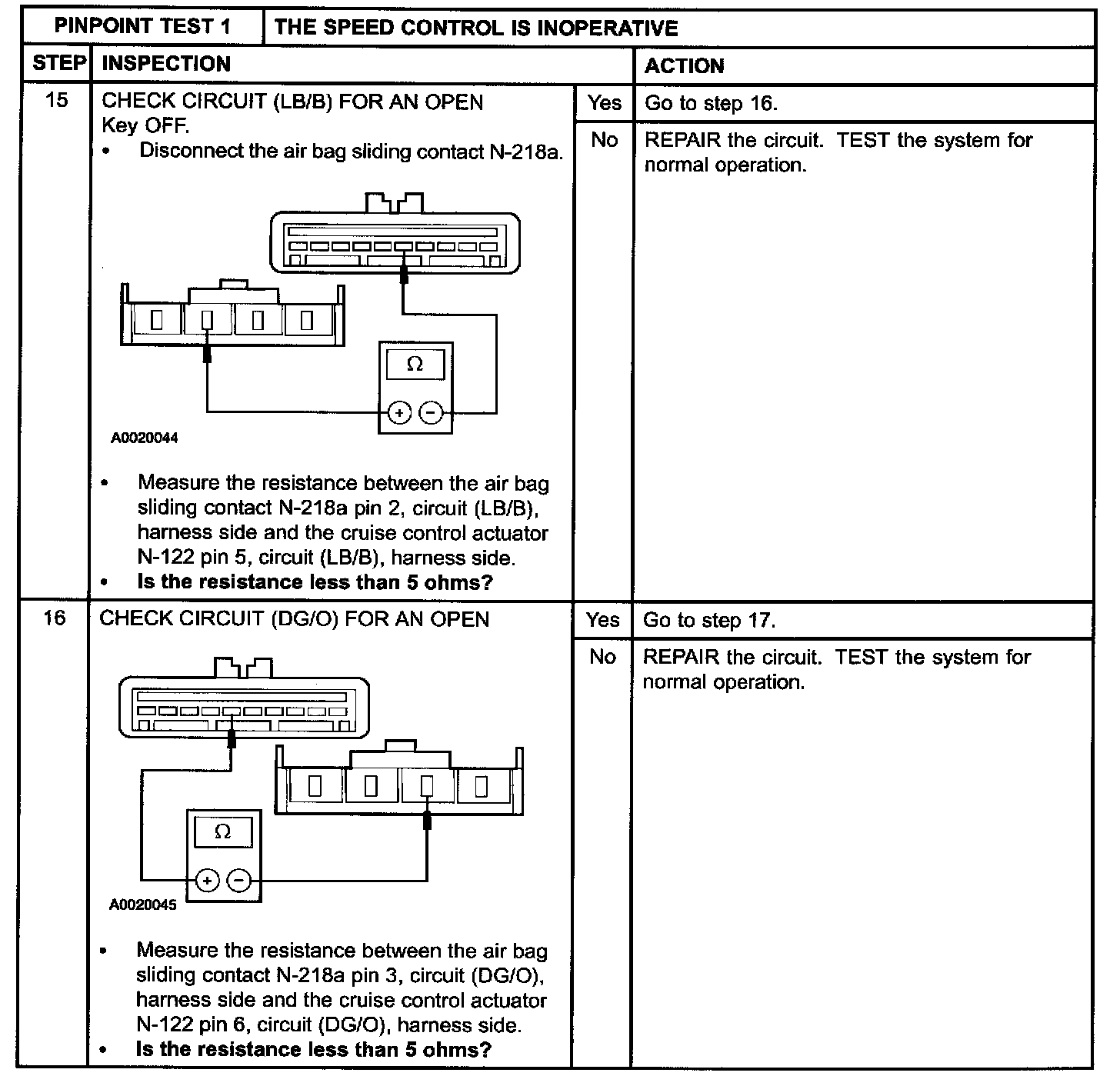

Step 15 - 16:

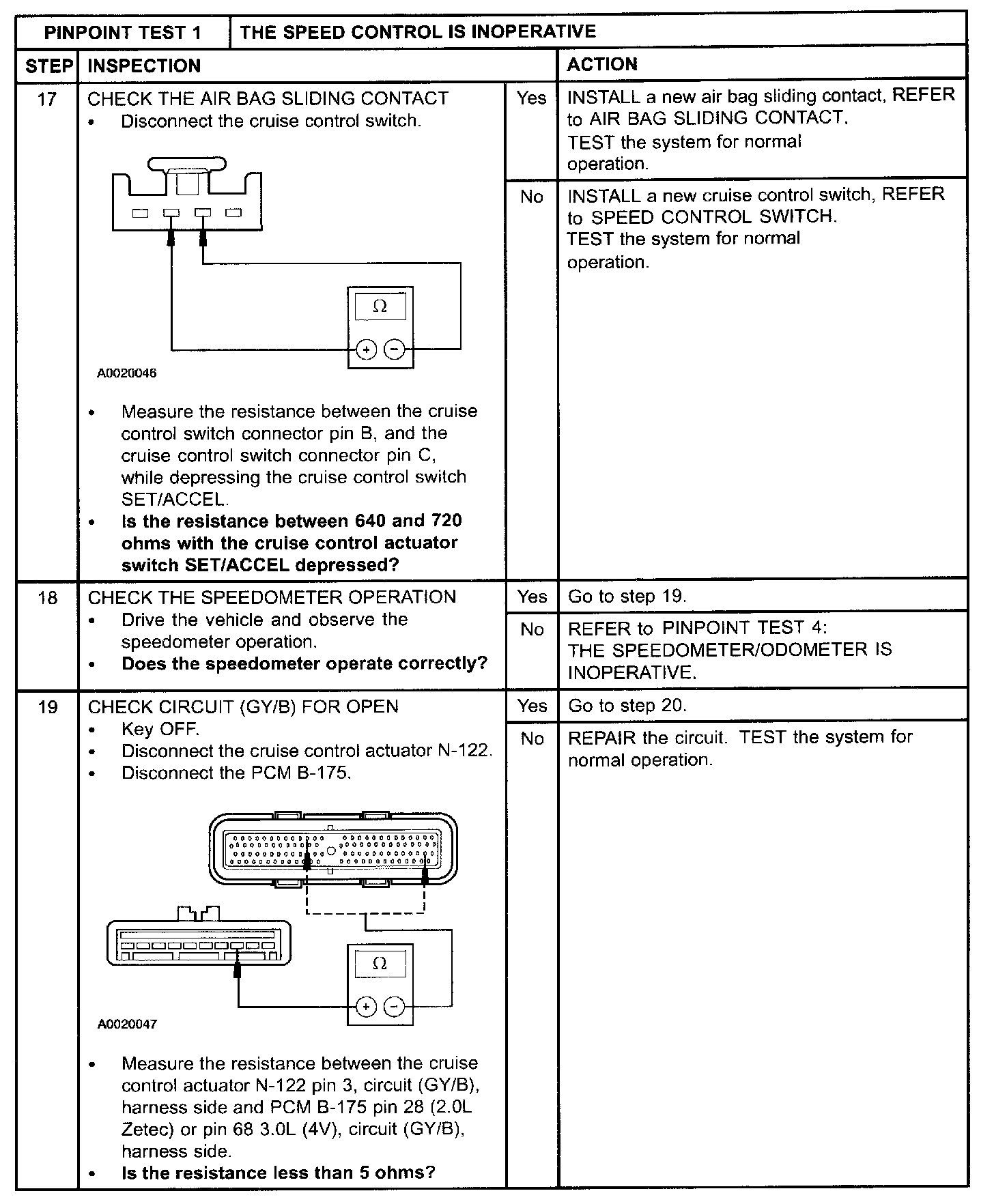

Step 17 - 19:

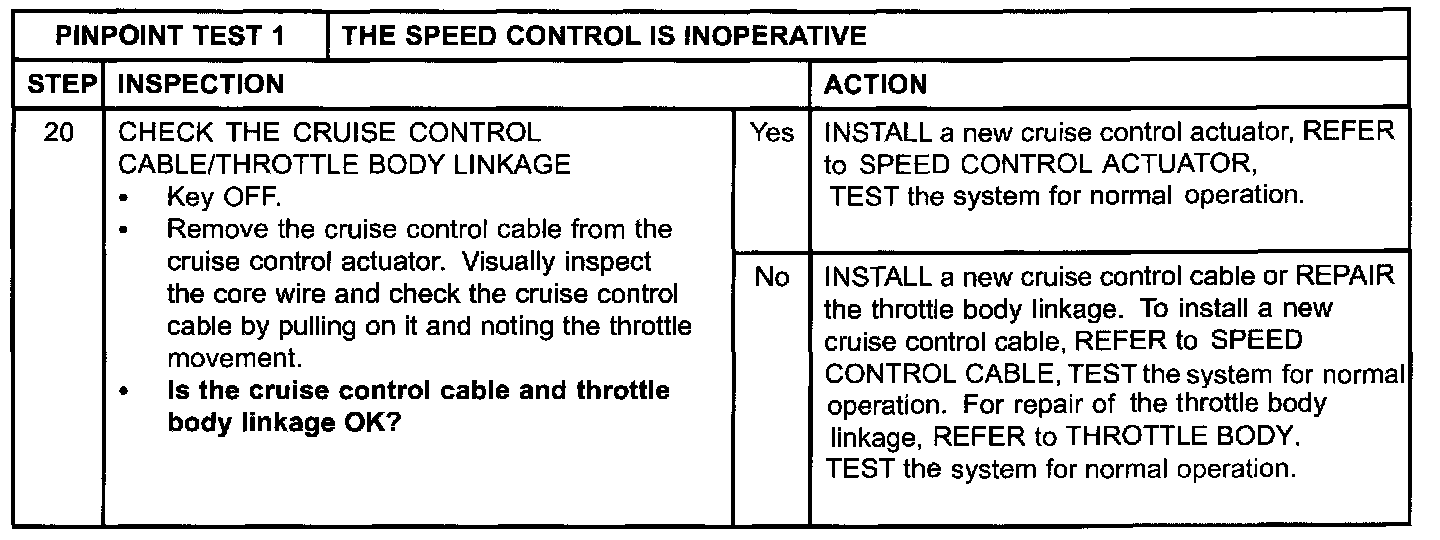

Step 20:
