Programming and Relearning

Module Configuration Index

Module Configuration Index:






NOTE: Do not contact the As-Built Data Center unless the WDS or equivalent Tester instructs you to do so. The WDS or equivalent Tester will not allow you to use as-built data information unless the WDS or equivalent Tester first prompts you for the As-Built Data Center information.

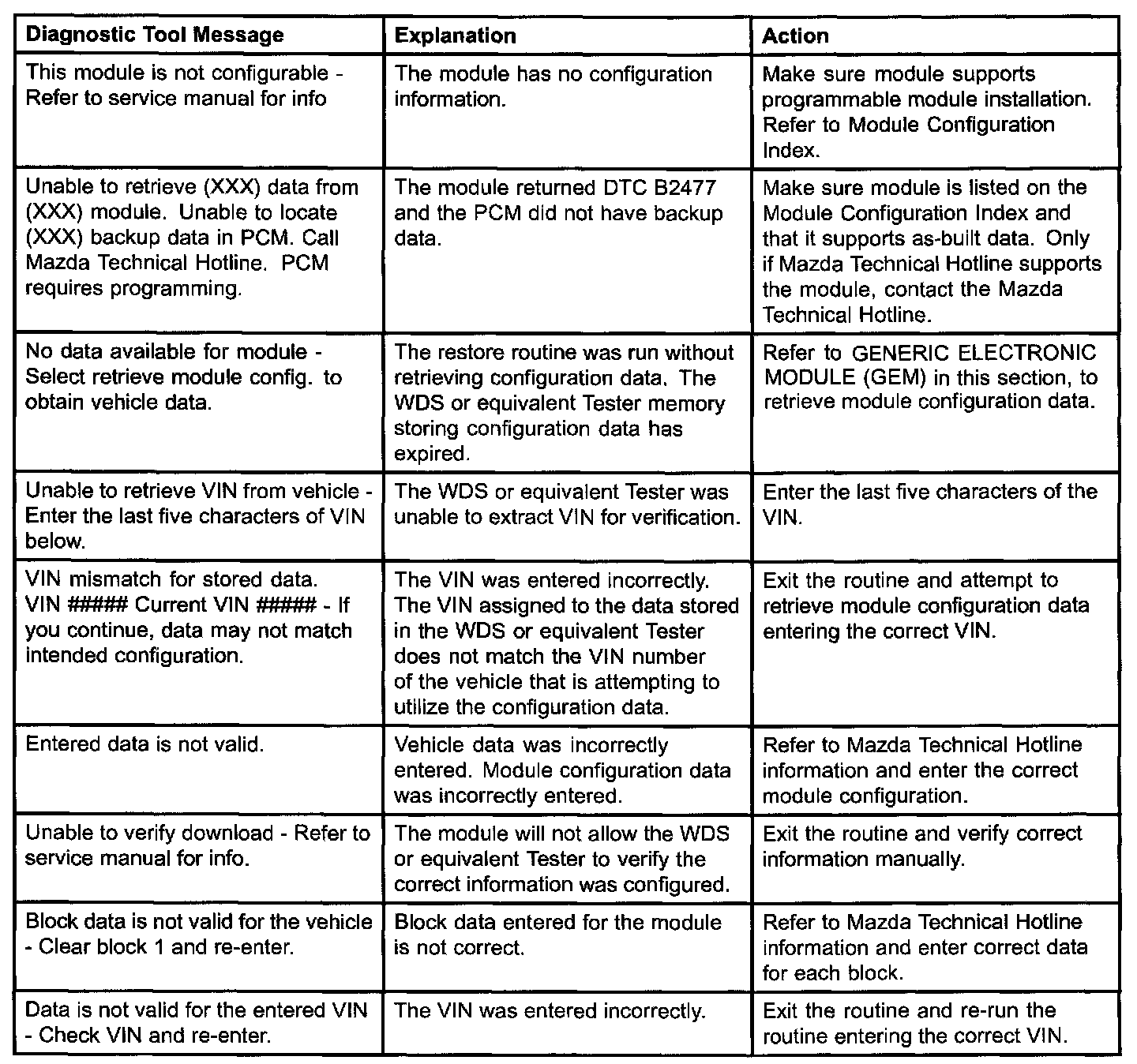

Diagnostic Tool Message Index - Part 1:




Diagnostic Tool Message Index - Part 2:

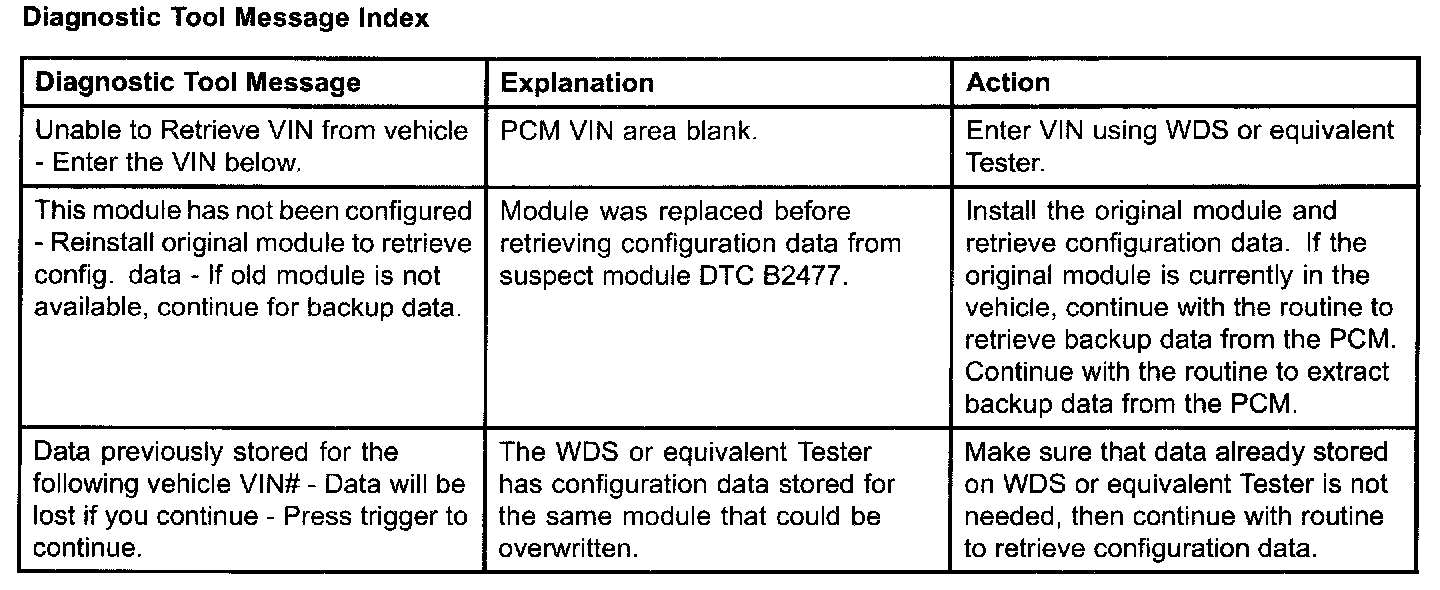

Diagnostic Tool Message Index
