Steering Gear And Linkage Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

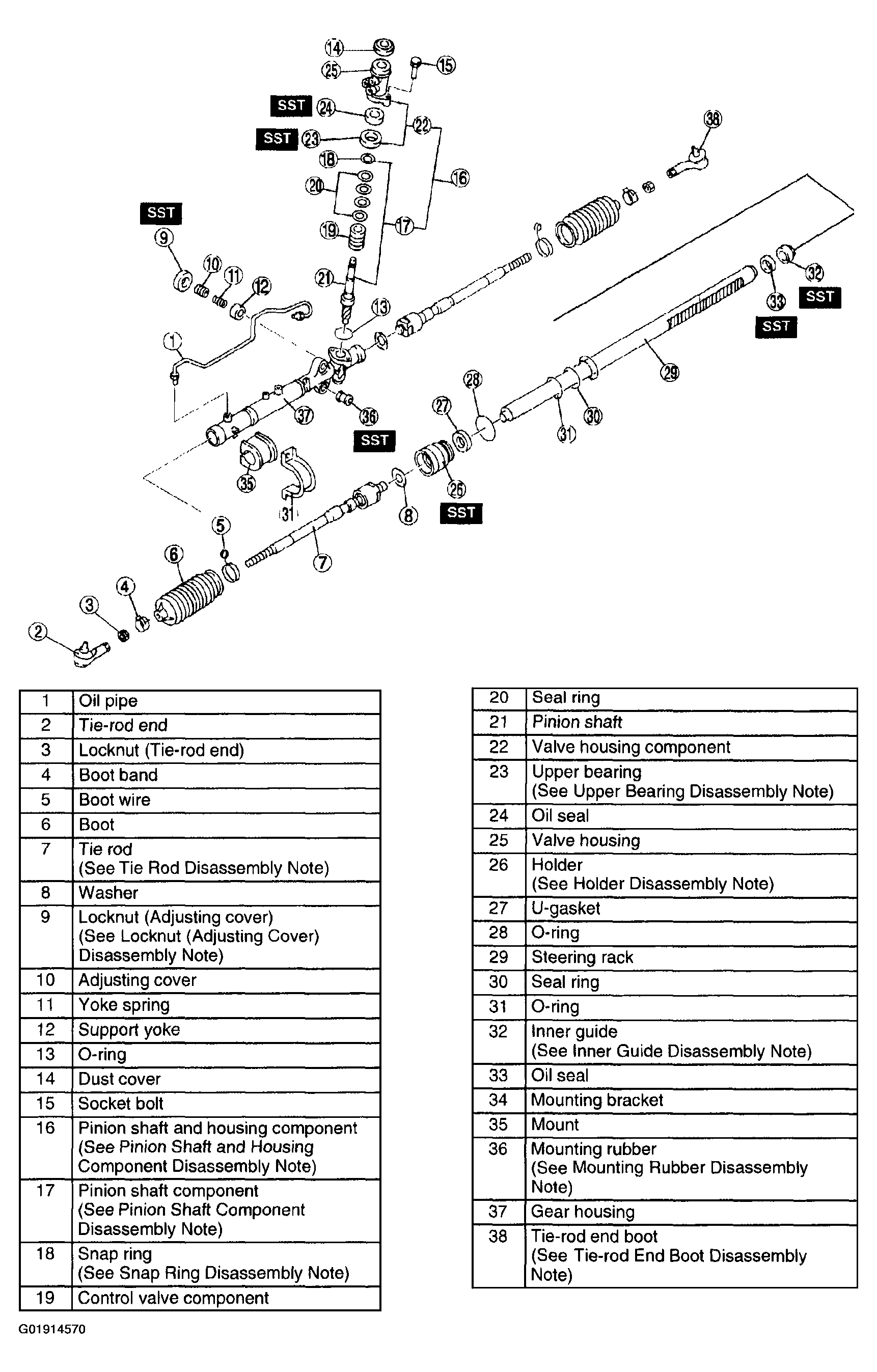

    Fig 1: Disassembling Steering Gear And Linkage
    G01914570Courtesy of MAZDA MOTORS CORP.
