Automatic Transaxle Basic Inspection

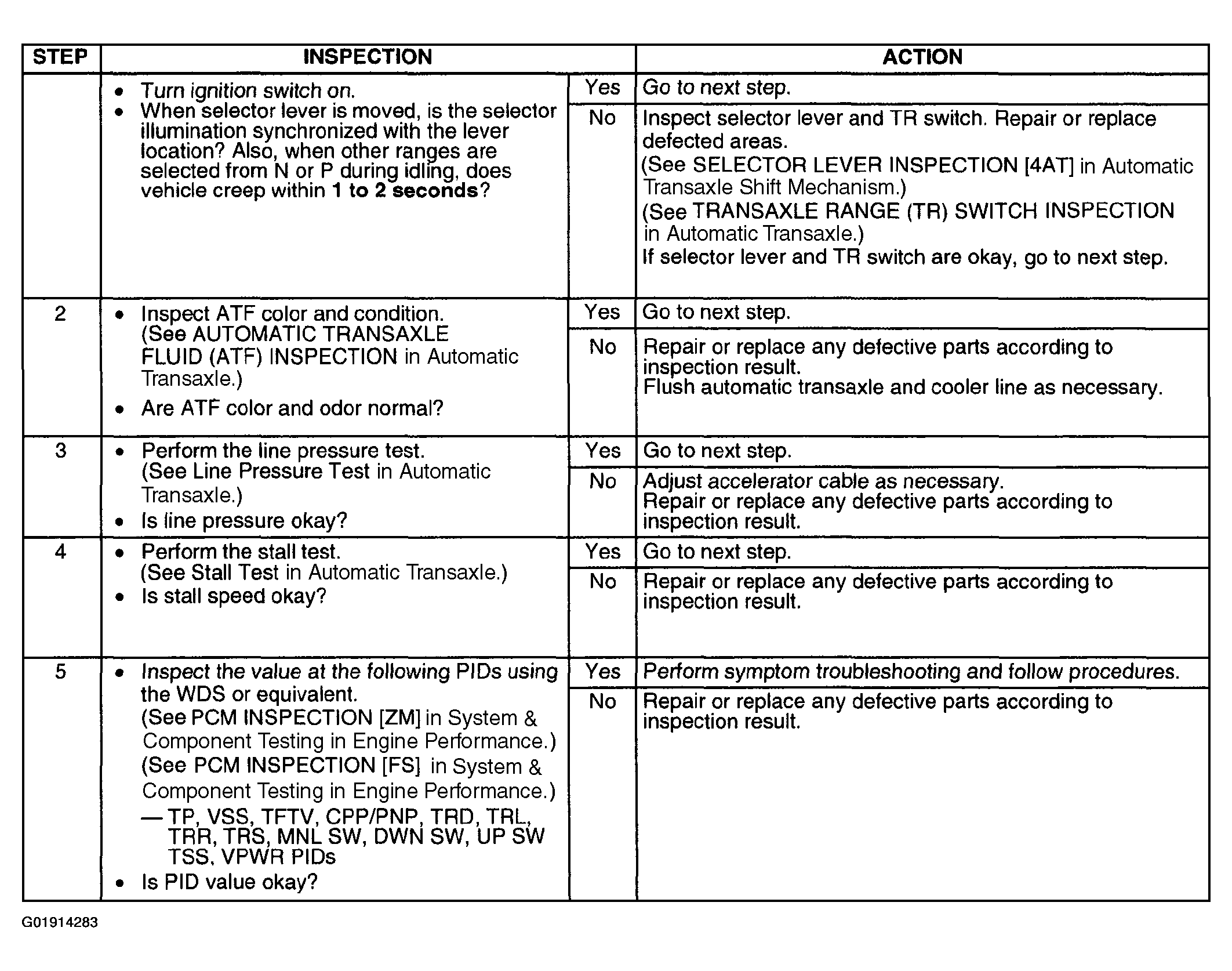

Fig 1: Automatic Transaxle Inspection Chart
G01914283Courtesy of MAZDA MOTORS CORP.
