Computers and Control Systems

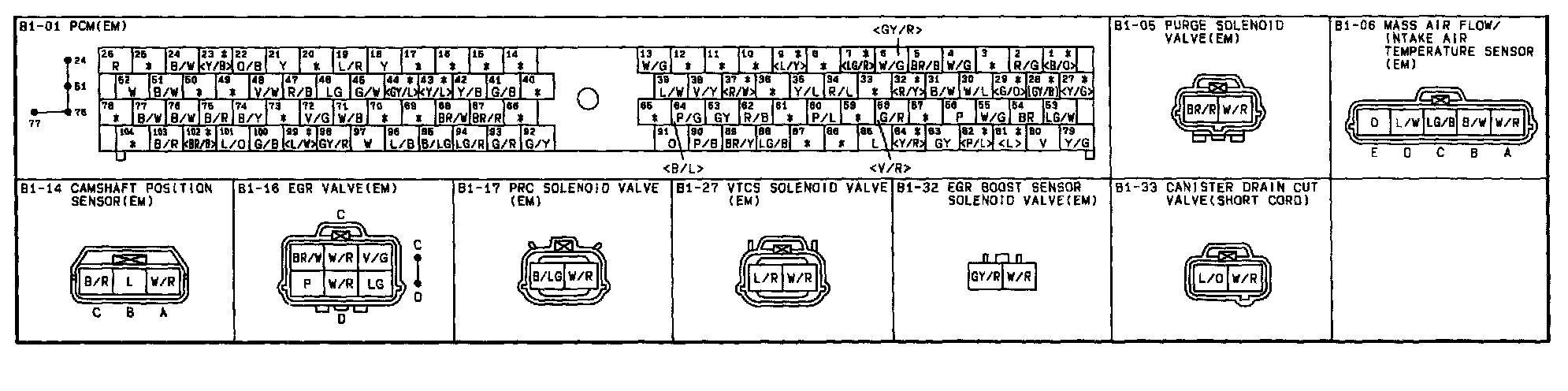

B-1a - EC-AT Control System (ZM)/Engine Control System Connectors (ZM):

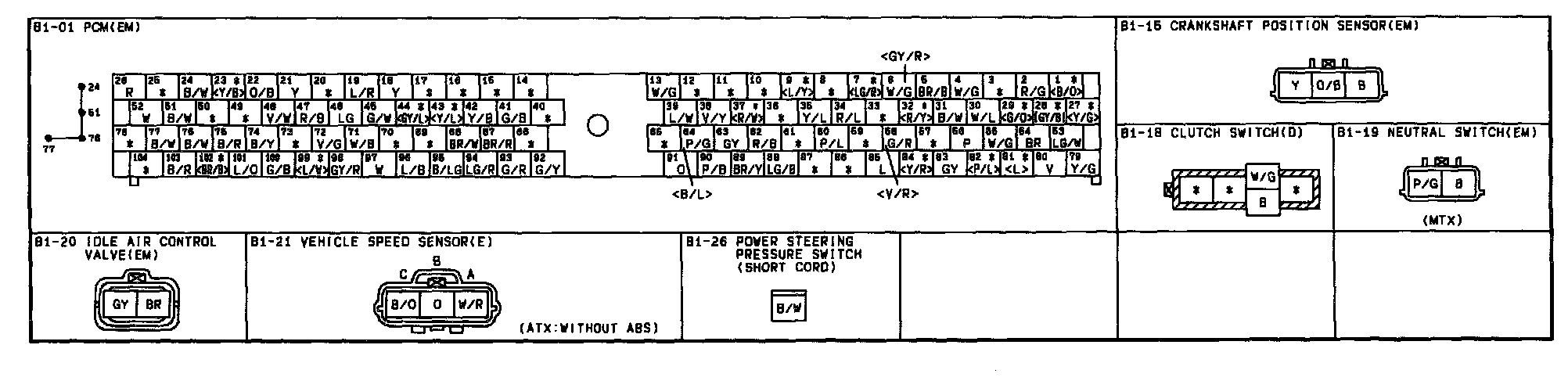

B-1b - EC-AT Control System (ZM)/Engine Control System Connectors (ZM):

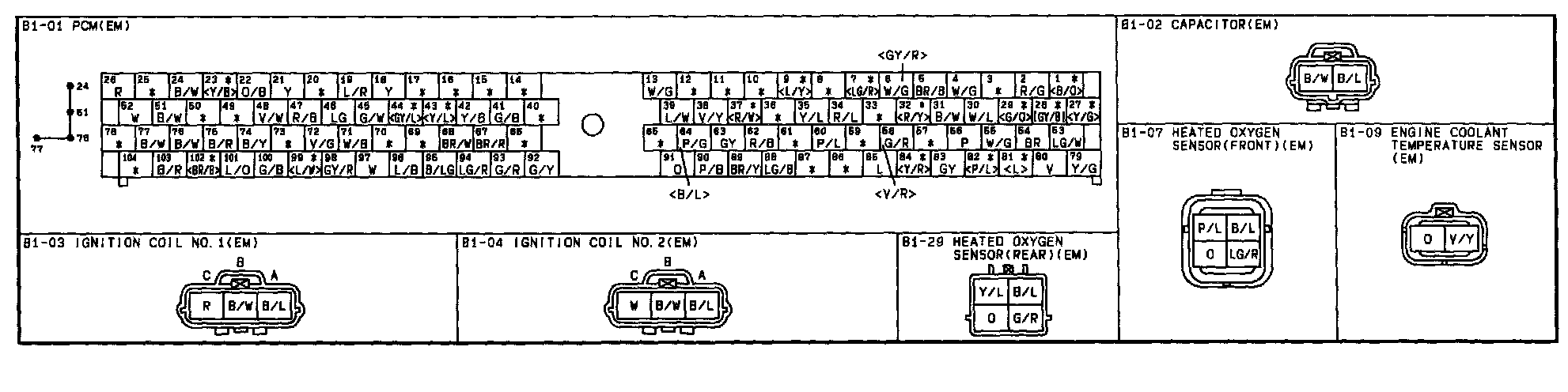

B-1c - EC-AT Control System (ZM)/Engine Control System Connectors (ZM):

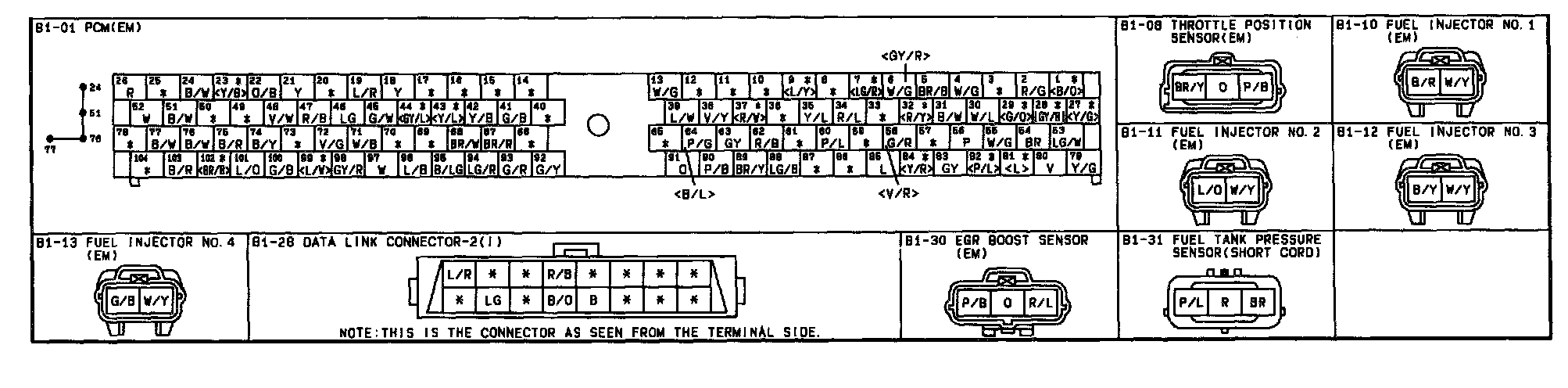

B-1d - EC-AT Control System (ZM)/Engine Control System Connectors (ZM):

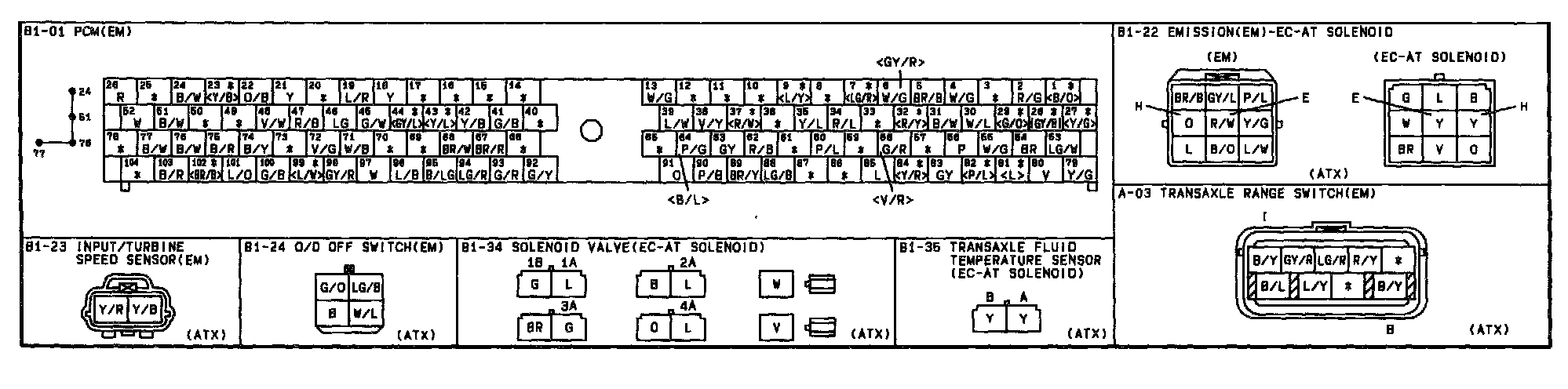

B-1e - EC-AT Control System (ZM)/Engine Control System Connectors (ZM):
