Holder Disassembly Note

  1. Cut away the staked area using a drill.
    CAUTION:
    • Carefully pull the holder out without damaging the U-gasket.

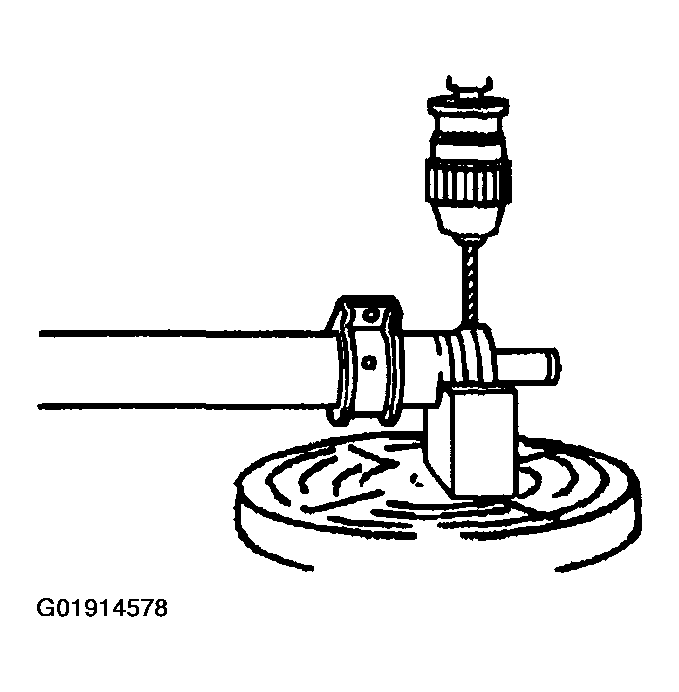

    Fig 1: Disassembling Holder (1 Of 2)
    G01914578Courtesy of MAZDA MOTORS CORP.
  2. Disassemble the holder using the SST.

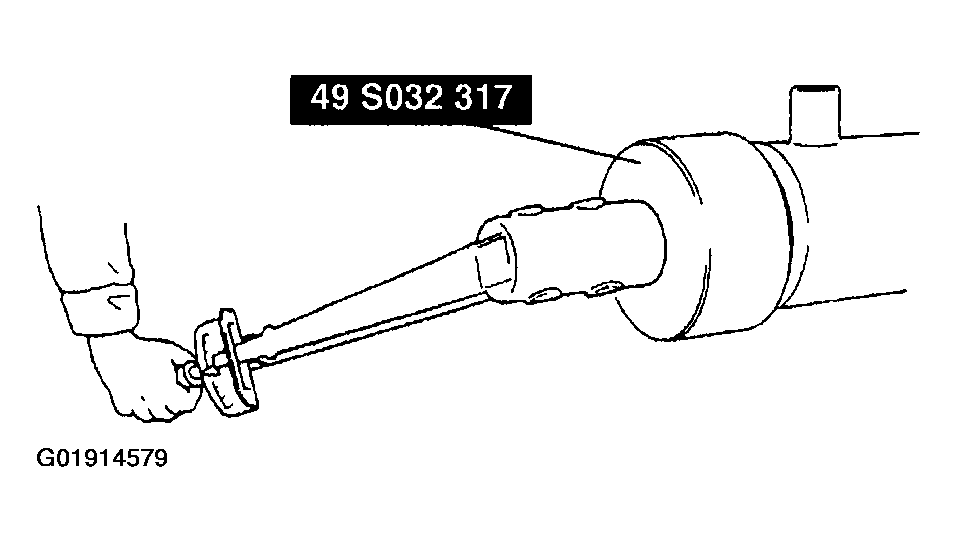

    Fig 2: Disassembling Holder (2 Of 2)
    G01914579Courtesy of MAZDA MOTORS CORP.
