Fuel-Filler Lid Opener Removal/Installation

  1. Remove the rear console. (See CONSOLE REMOVAL/INSTALLATION .)
  2. Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear end mat.
  4. Remove the driver's side trunk side trim.
  5. Remove in the order indicated in the figure.

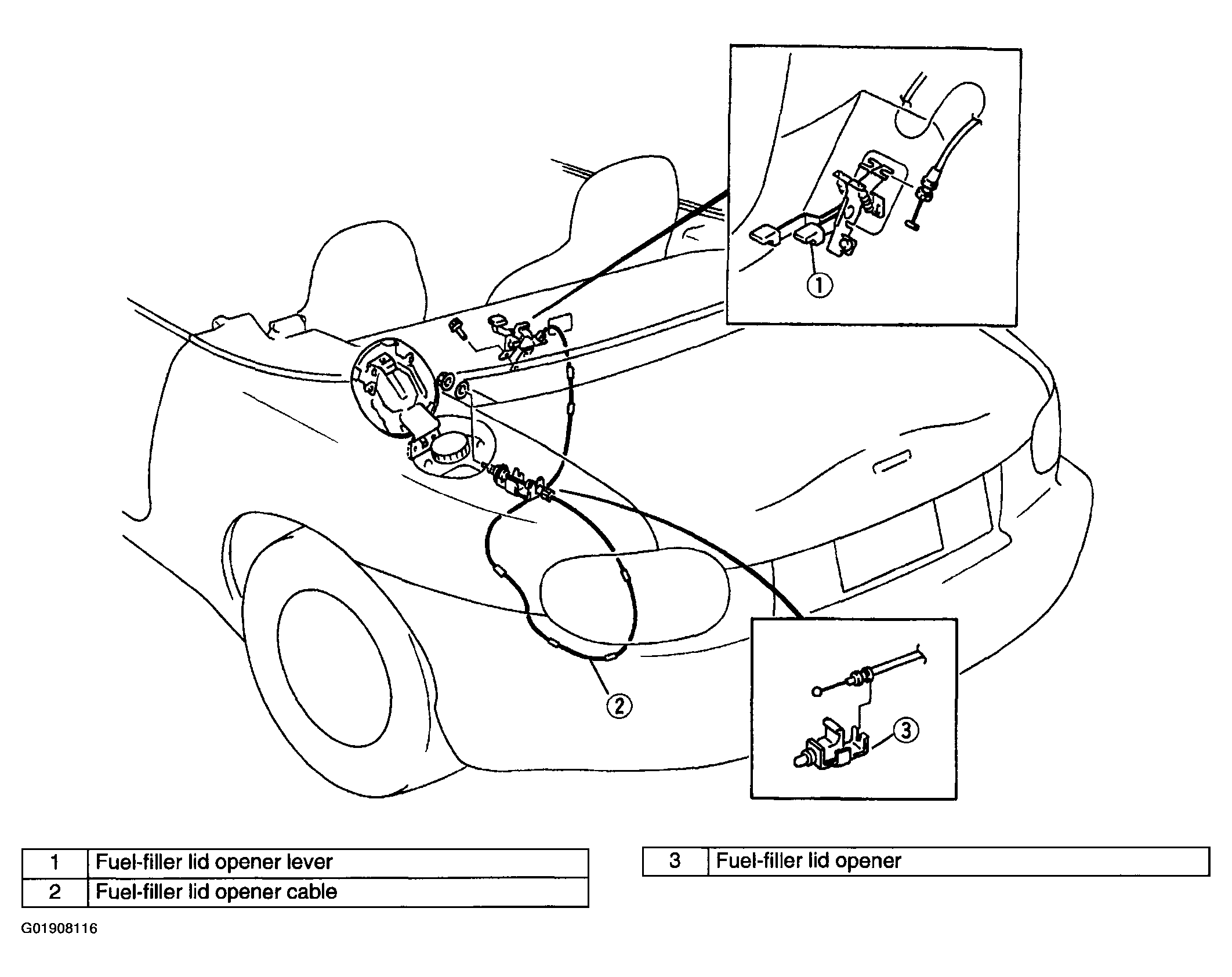

    Fig 1: Fuel Filler Lip Opener Removal Sequence
    G01908116Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
