Door Lock Actuator Inspection

Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
Remove the door screen.
Disconnect the door lock actuator connector.
Apply battery positive voltage to the door lock actuator terminals and inspect the operation of the door lock actuator.
- If not as specified, replace the passenger's side door lock.

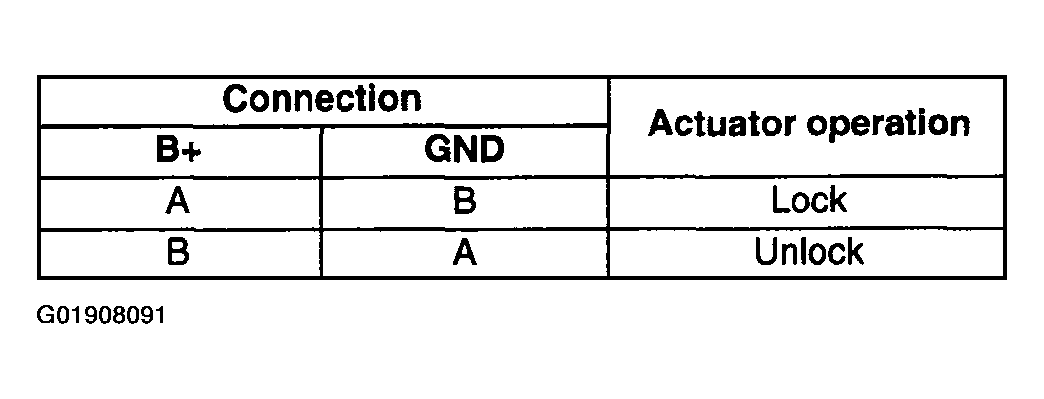

  Fig 1: Checking Door Lock Actuator Connector Operation (1 of 2)
  Courtesy of MAZDA MOTORS CORP.

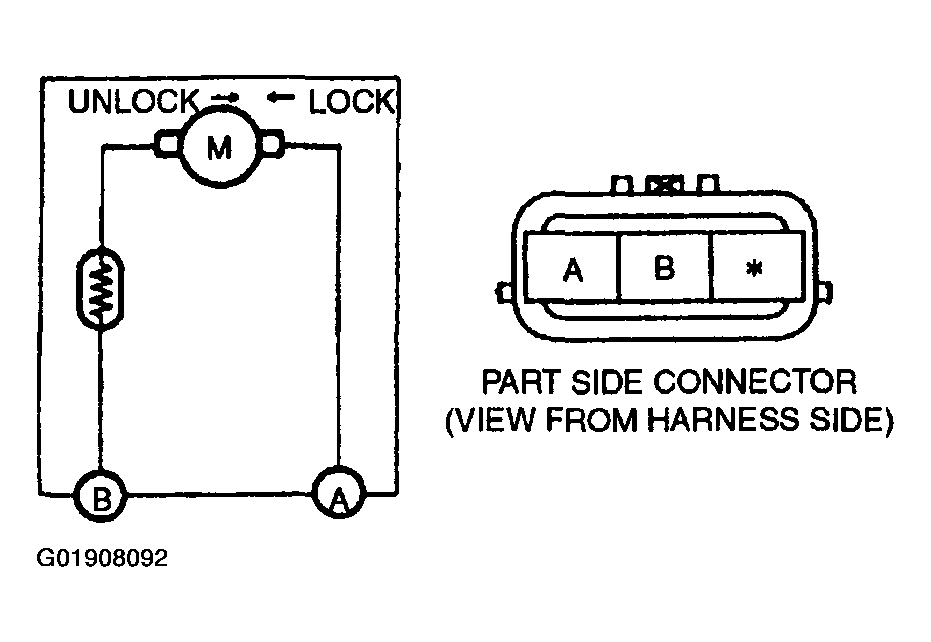

  Fig 2: Checking Door Lock Actuator Connector Operation (2 of 2)
  Courtesy of MAZDA MOTORS CORP.
