LCD Inspection

  1. With audio on, first press the POWER button and hold it, then press the SEEK button (upper) for approximately 1 second.
  2. Inspect the LCD according to the figure:

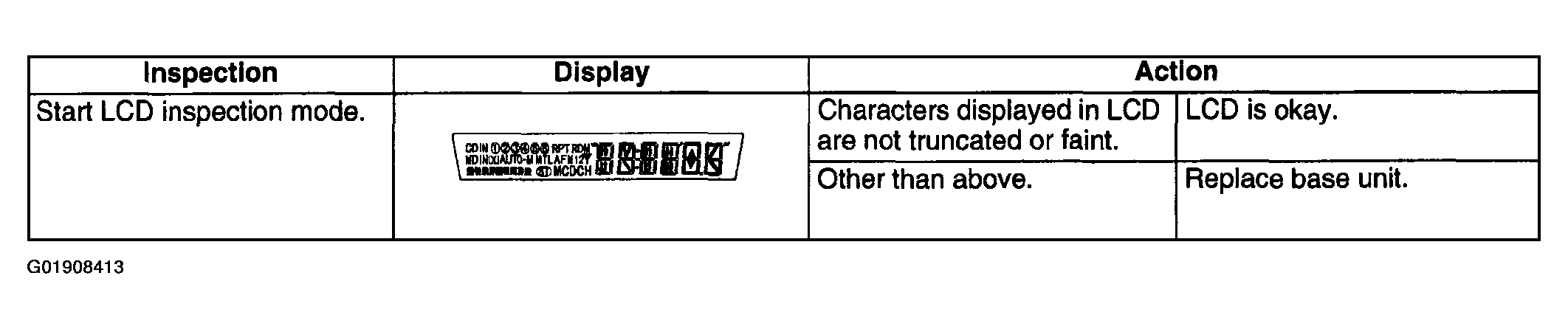

    Fig 1: LCD Inspection Table
    G01908413Courtesy of MAZDA MOTORS CORP.
  3. Turn the audio off or the ignition switch to the LOCK position to stop the diagnostic assist function.
