Actuator Cable Installation

Install the grommet to the dash lower panel.

Fig 1: Installing Grommet To Dash Lower Panel
Courtesy of MAZDA MOTORS CORP.
Install the actuator cable to the accelerator pedal.

Fig 2: Installing Actuator Cable To Accelerator Pedal
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow in the figure to unlock the adjuster.

Fig 3: Sliding Lock Lever To Unlock Adjuster
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring to release lock in the direction shown by the arrow in the figure.

Fig 4: Turning Ratchet Ring To Release Lock
Courtesy of MAZDA MOTORS CORP.

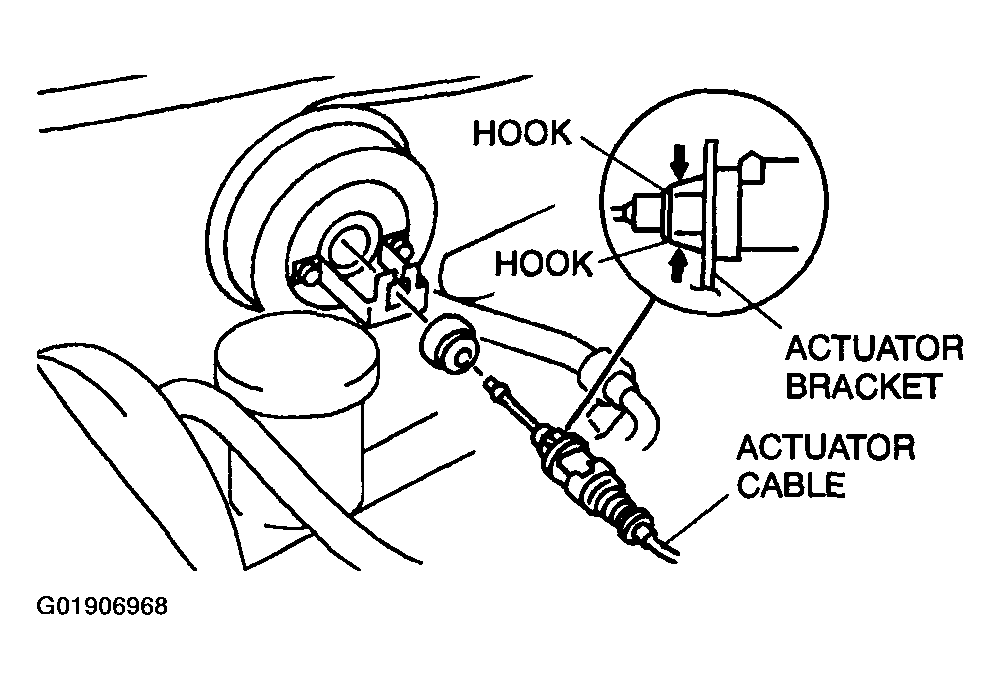

Insert the grommet into the actuator bracket.

Fig 5: Inserting Grommet Into Actuator Bracket
Courtesy of MAZDA MOTORS CORP.
To adjust the free play, push or pull the actuator cable directly behind the spring two times.

Fig 6: Pushing Or Pulling Actuator Cable Directly Behind Spring
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring in the direction shown by the arrow in the figure to lock it.

Fig 7: Turning Ratchet Ring To Lock It
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow in the figure to lock the adjuster.

Fig 8: Sliding Lock Lever To Lock Adjuster
Courtesy of MAZDA MOTORS CORP.
