Control Valve Component Location

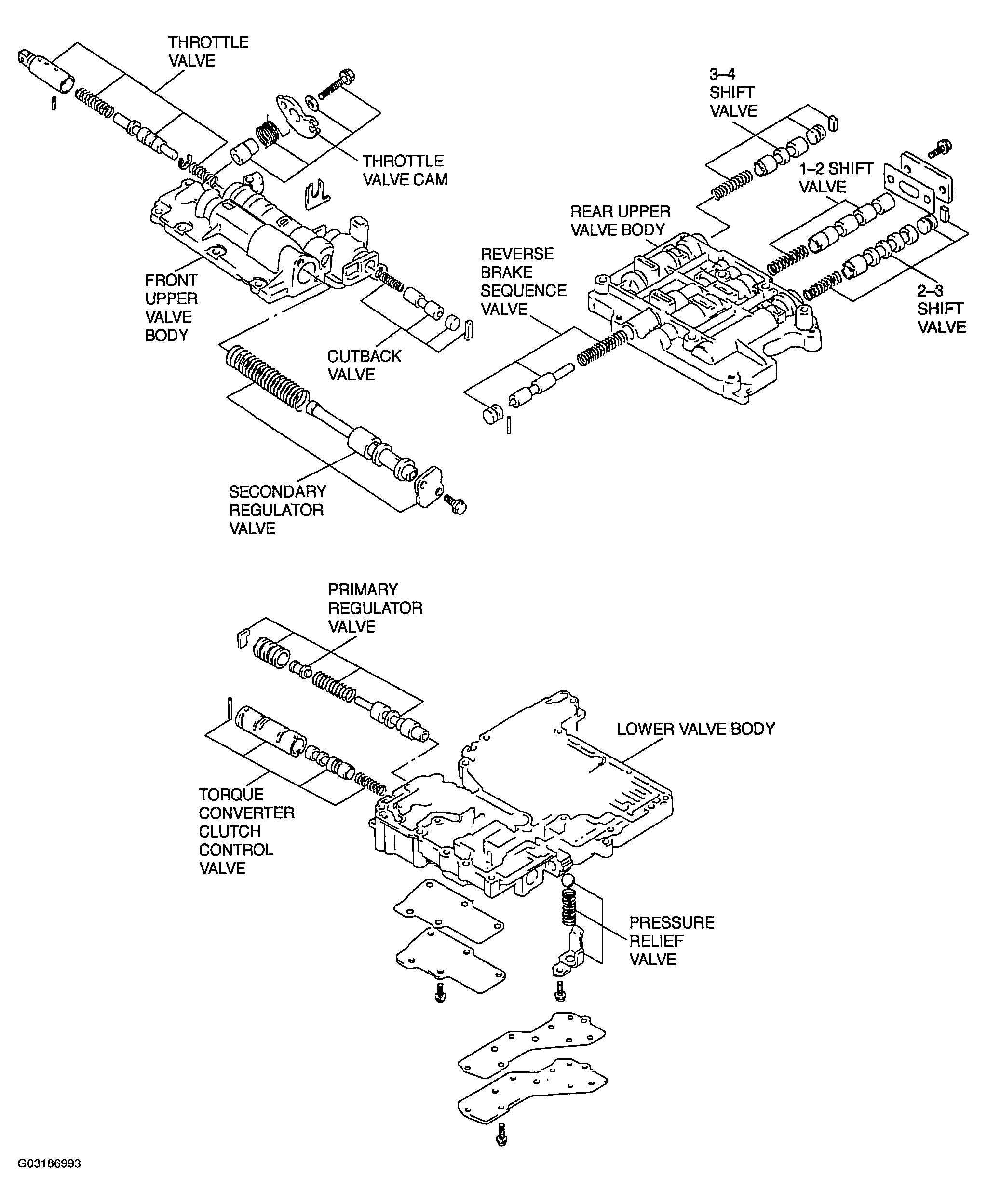

Fig 1: Identifying Control Valve Components
Courtesy of MAZDA MOTORS CORP.
