Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

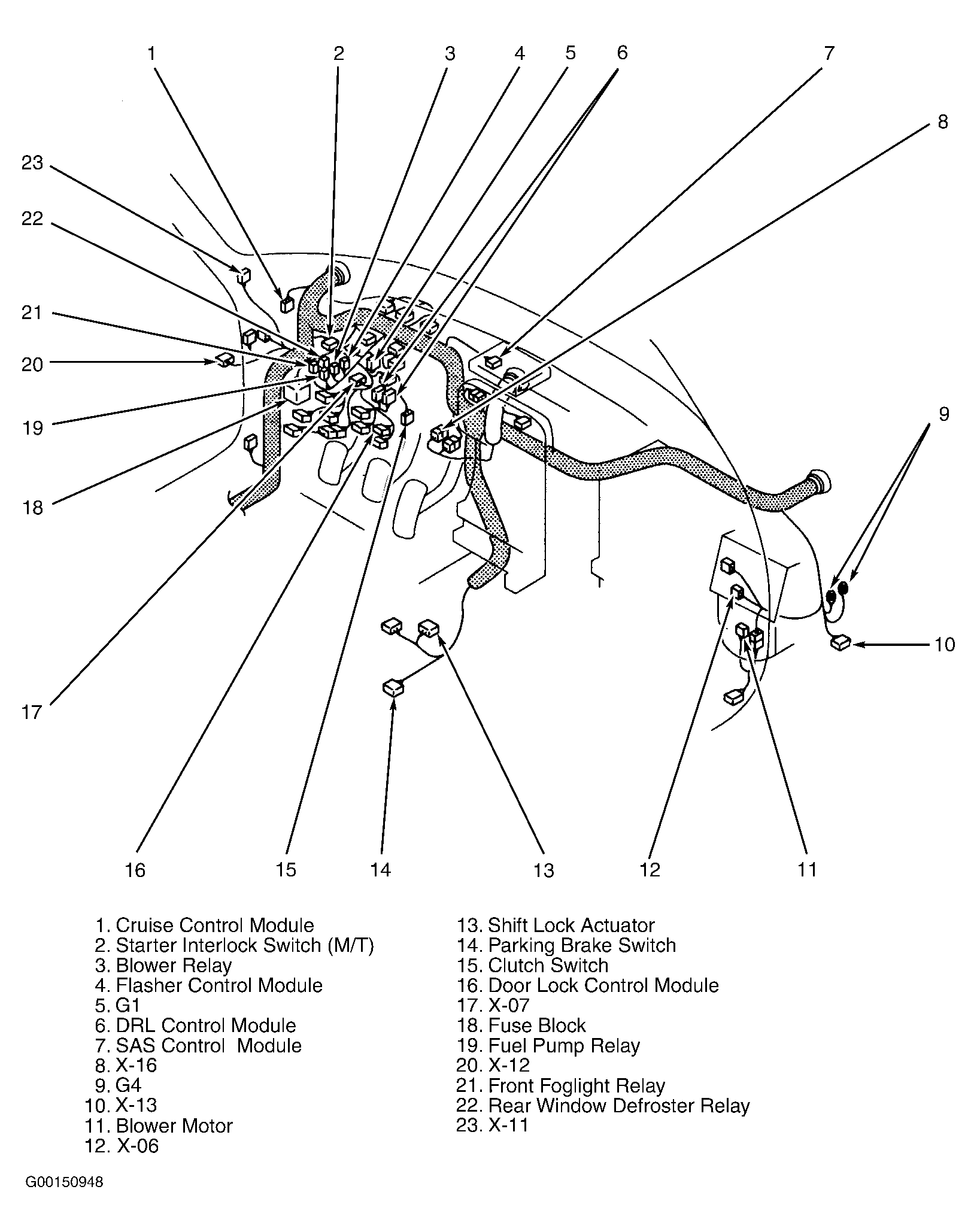

Fuse Block Behind left side of dash. See Figure.
Fusible Link At right rear of engine compartment, behind main fuse block.

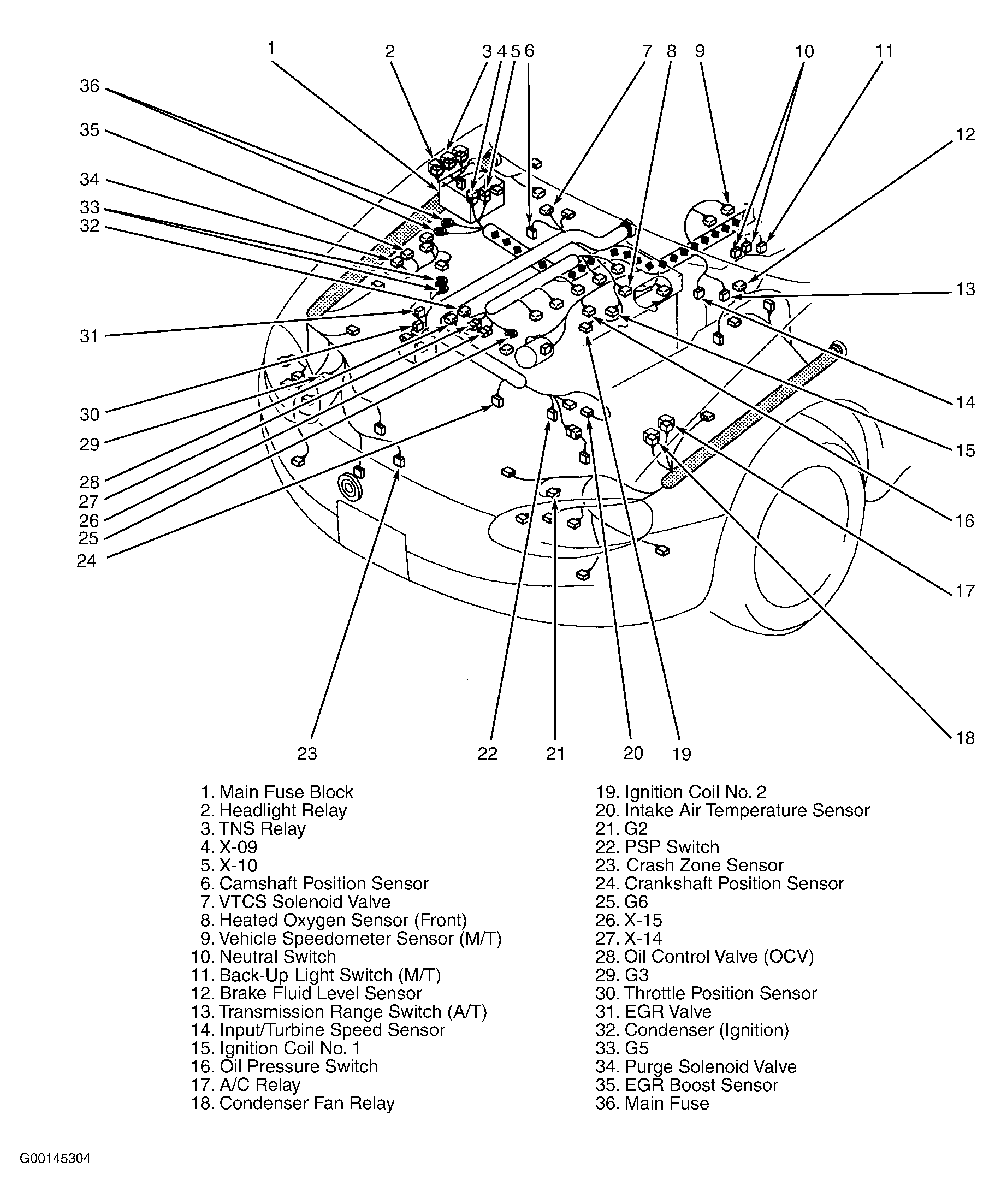

Main Fuse At right rear of engine compartment. See Figure.
Main Fuse Block At right rear of engine compartment. See Figure.
Thermal Protector At left front of engine compartment.
