Oil Seal and O-ring Assembly Note

  1. Press the oil seal until it is flush with the edge of the rack bushing as shown.
  2. Install the O-ring into the rack bushing.

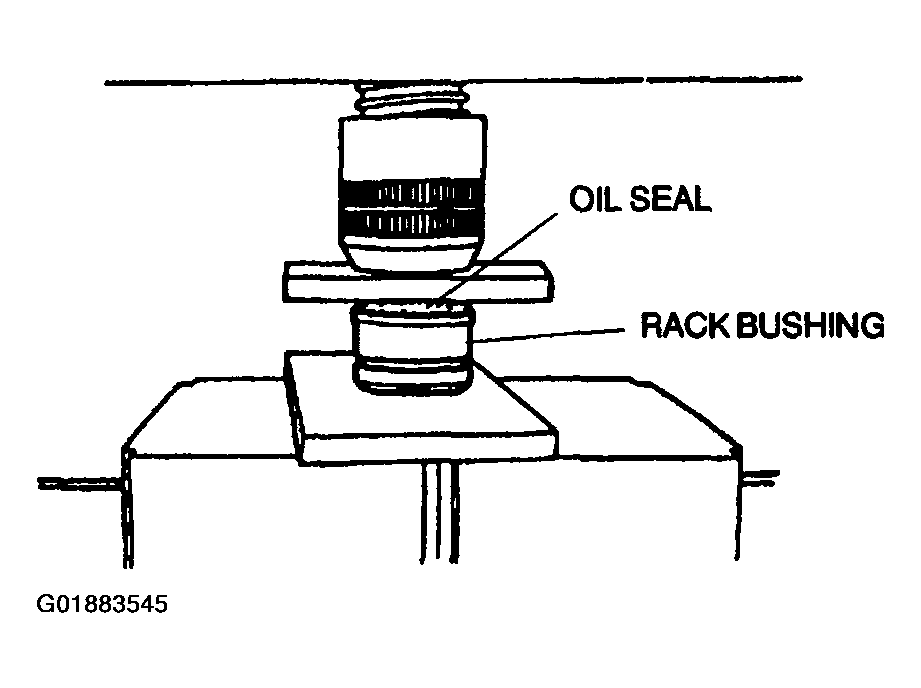

    Fig 1: Installing Oil Seal and O-ring Into Rack Bushing
    G01883545Courtesy of MAZDA MOTORS CORP.
