Warning And Indicator Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION  .)
  3. Turn the socket counterclockwise to remove the bulb.

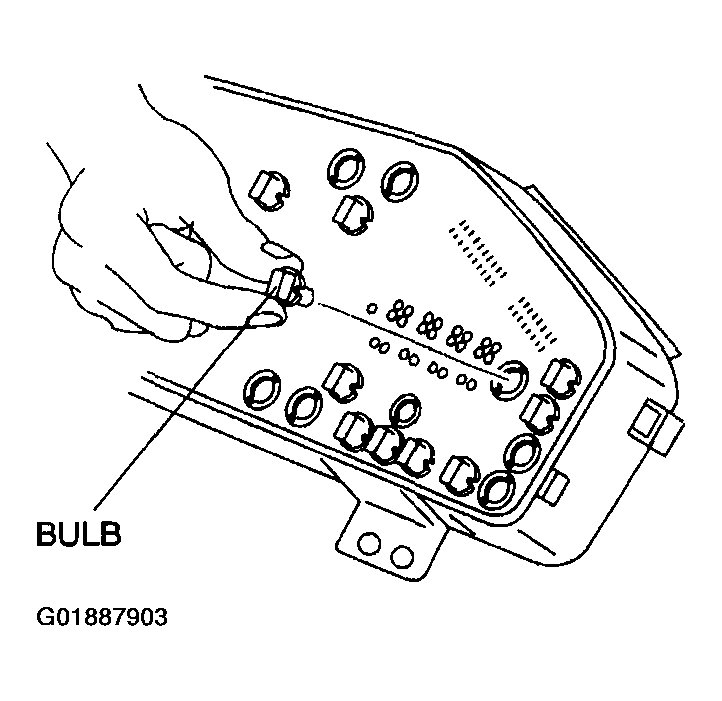

    Fig 1: Removing Bulb
    G01887903Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
