DTC U0100: TCM Cannot Receive Any Signals From Pcm: Notes

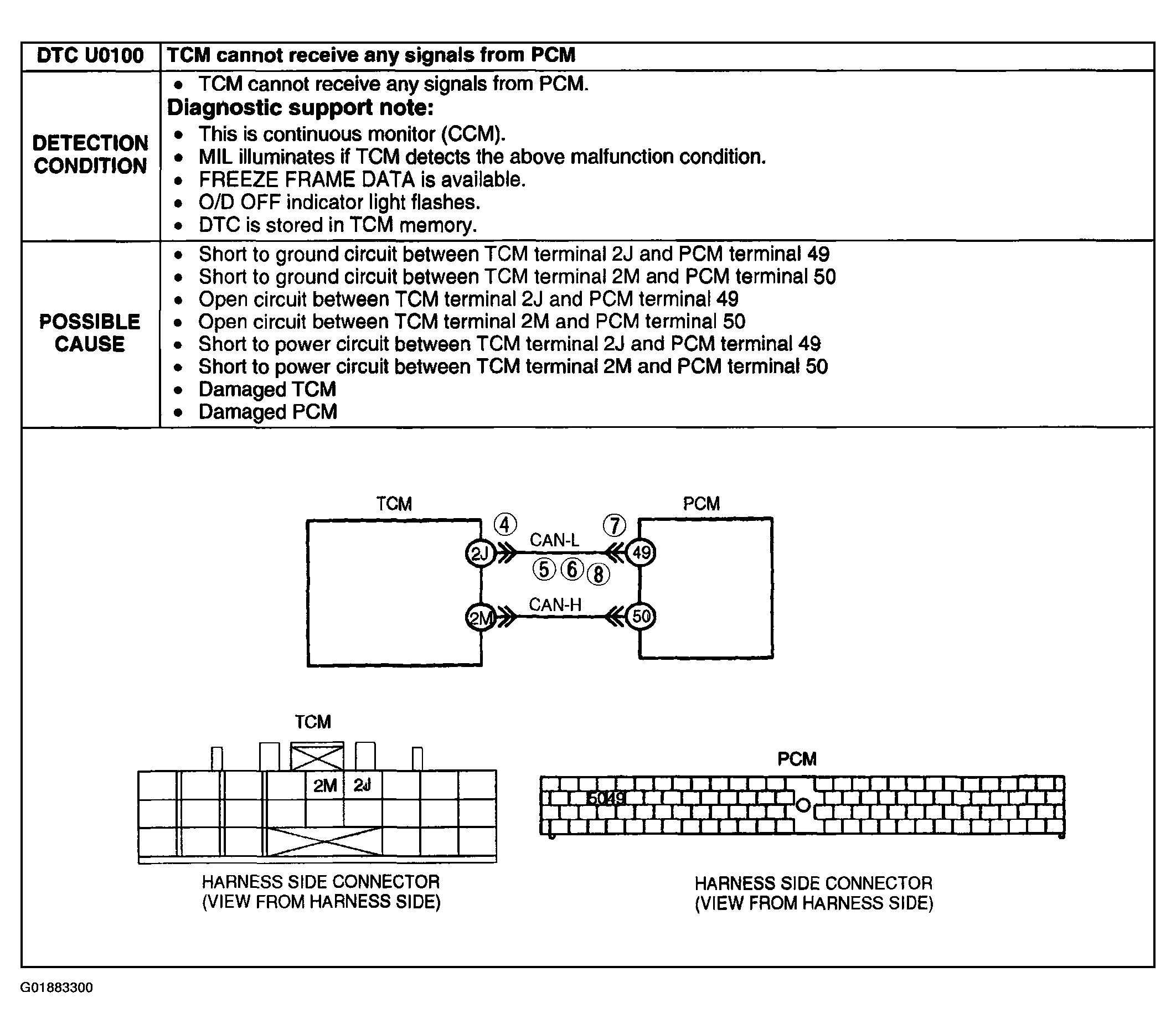

Fig 1: DTC U0100 - Detection Conditions & Possible Causes
G01883300Courtesy of MAZDA MOTORS CORP.
