Glass Antenna Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the glass antenna for damage visually.
  2. Inspect for continuity between the glass antenna terminals using an ohmmeter.

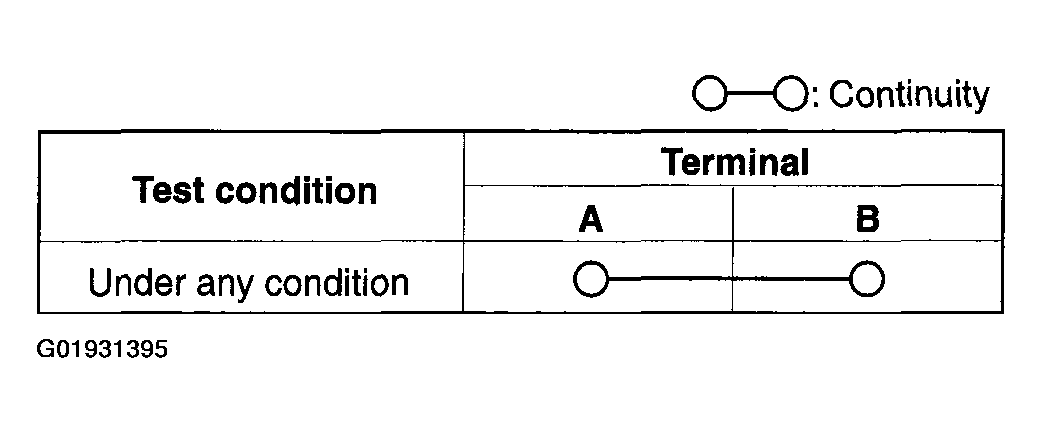

    Fig 1: Glass Antenna Terminals Continuity Chart
    G01931395Courtesy of MAZDA MOTORS CORP.

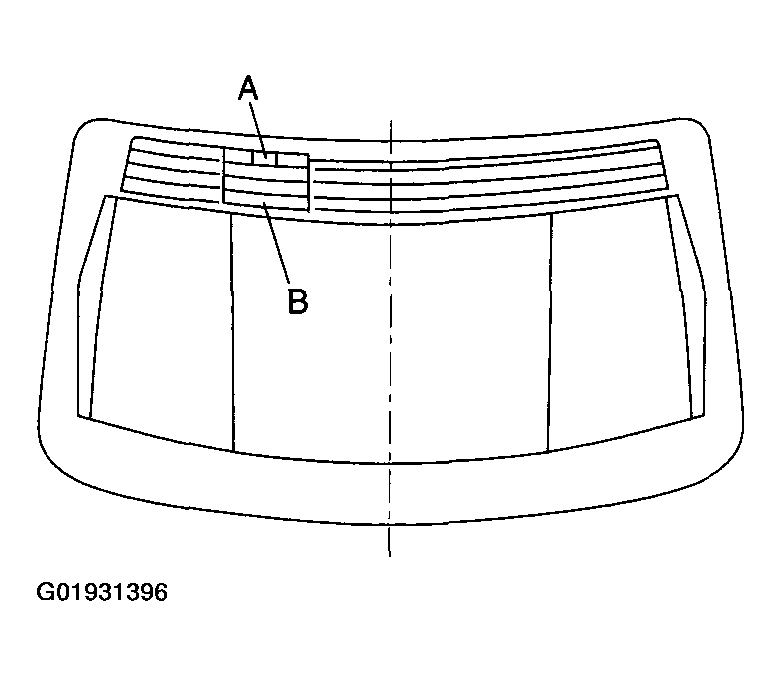

    Fig 2: Identifying Glass Antenna Connector Terminals
    G01931396Courtesy of MAZDA MOTORS CORP.
