Removal & Installation (Miata)

Fuel pressure regulator is mounted to fuel pump and sending unit assembly and may be replaced separately. See Fig 1.

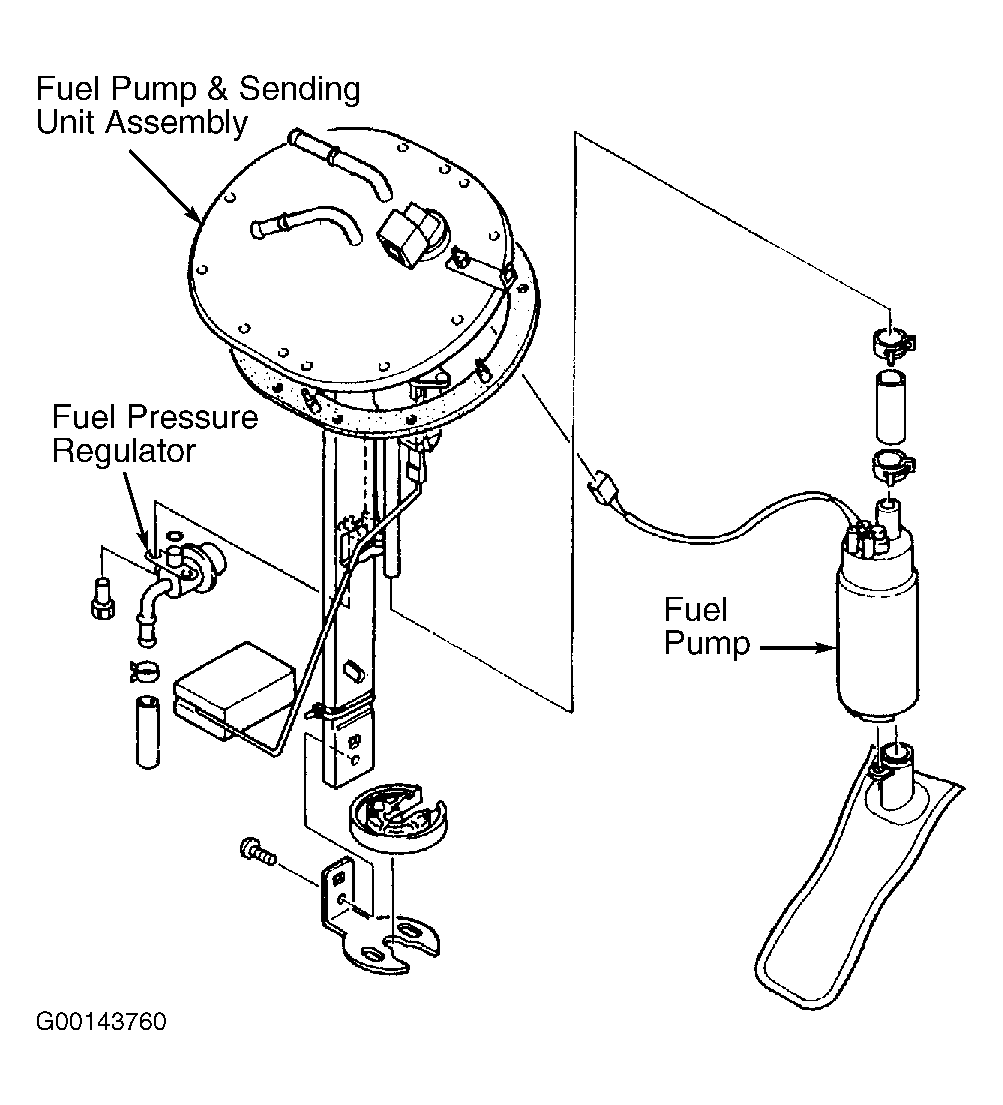

Fig 1: Identifying Fuel Pressure Regulator - Miata
G00143760Courtesy of MAZDA MOTORS CORP.
