Removal & Installation

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant.
  3. Remove in the order indicated in the illustration. See Fig 1.
  4. To install, reverse removal procedure. See Fig 1.

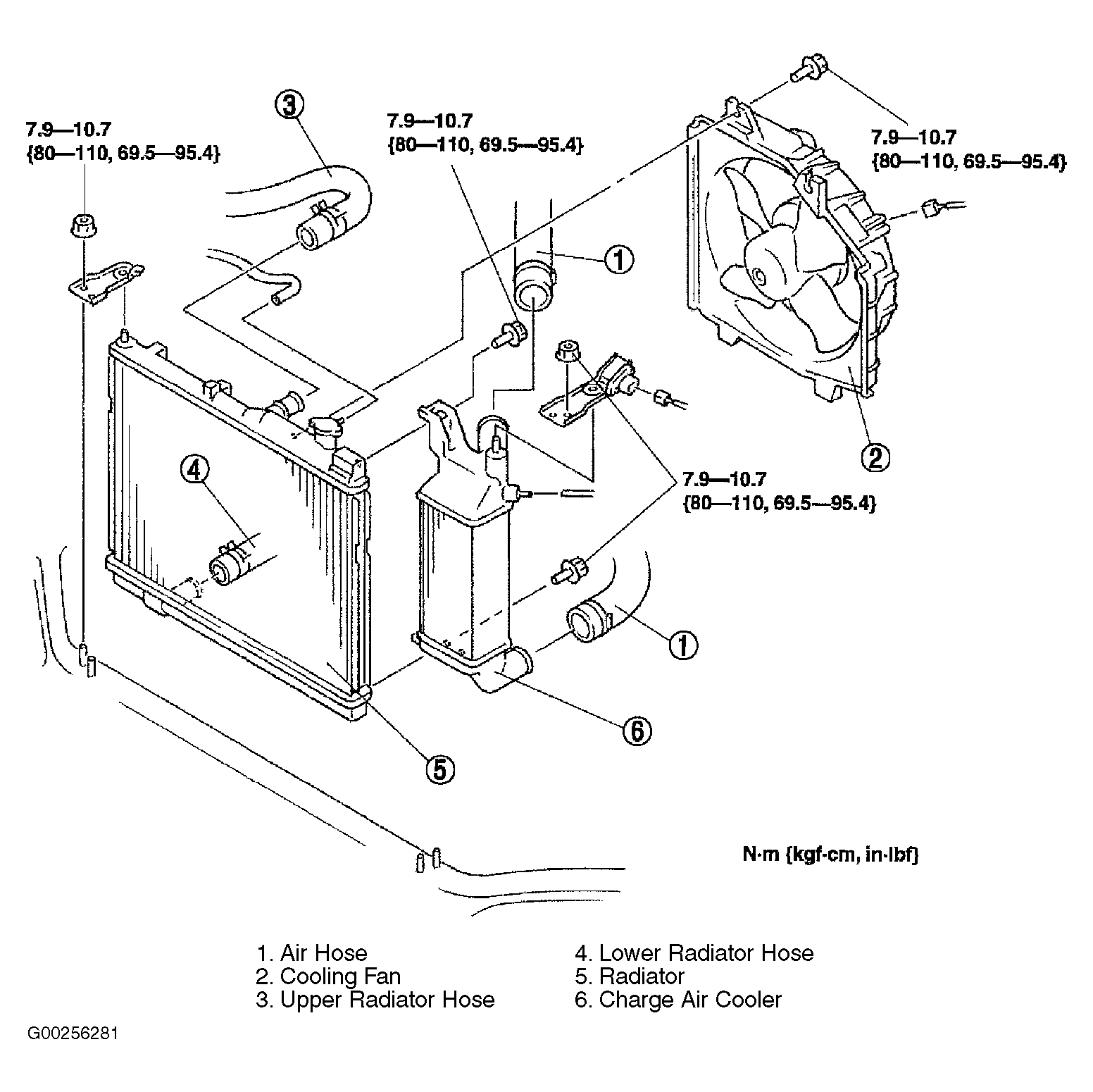

Fig 1: Removing & Installing Charge Air Cooler
G00256281Courtesy of MAZDA MOTORS CORP.
