Front Door Glass And Guide Removal/Installation

Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front beltline molding is 185 mm {7.3 in}.
Disconnect the negative battery cable.
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

Fig 1: Measuring Distance From Top Of Front Door Glass
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figures.

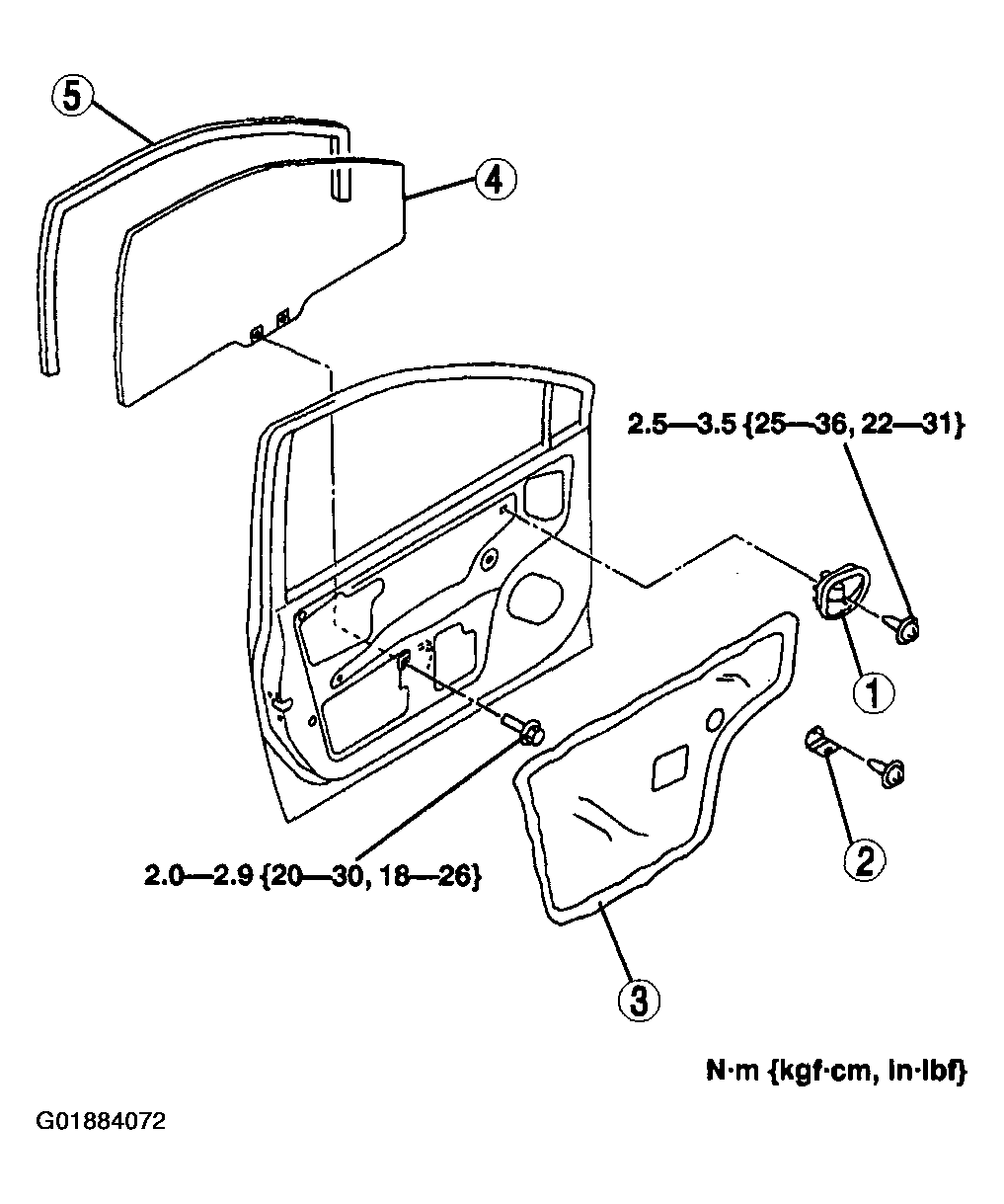

Fig 2: Removing Front Door Glass And Guide
Courtesy of MAZDA MOTORS CORP.

Fig 3: Front Door Glass And Guide Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
