Liftgate Side Trim Removal/Installation

  1. Remove the liftgate upper trim.
  2. Remove the fastener.
  3. Pull the liftgate side trim forward to disengage clips A and pin B from the body.
  4. Pull the liftgate side trim upward, then disengage hook C from the liftgate lower trim, and remove the liftgate side trim.
  5. Install in the reverse order of removal.

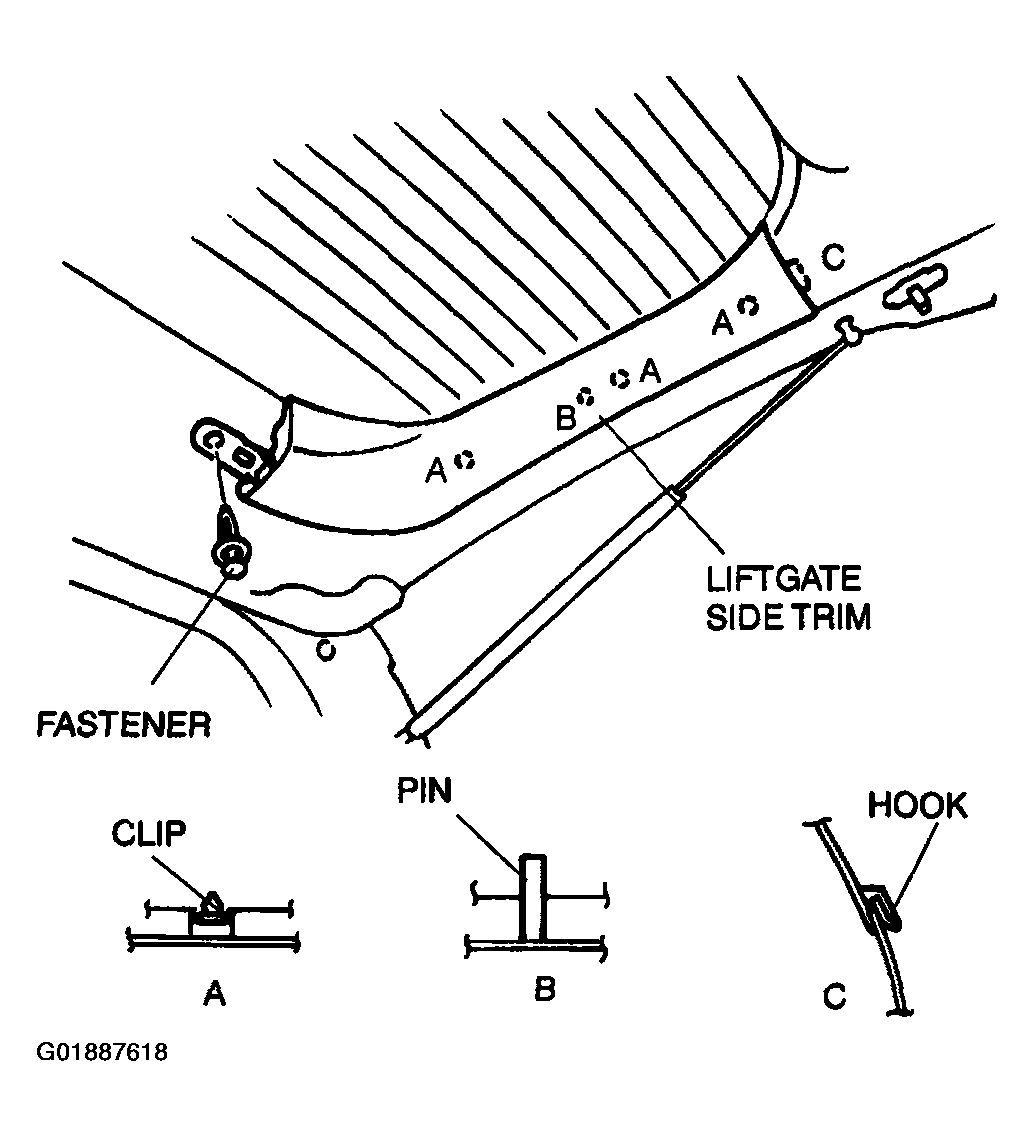

    Fig 1: Disengaging Clips A And Pin B From Body
    G01887618Courtesy of MAZDA MOTORS CORP.
