Exhaust System Components - 4.0L: Notes

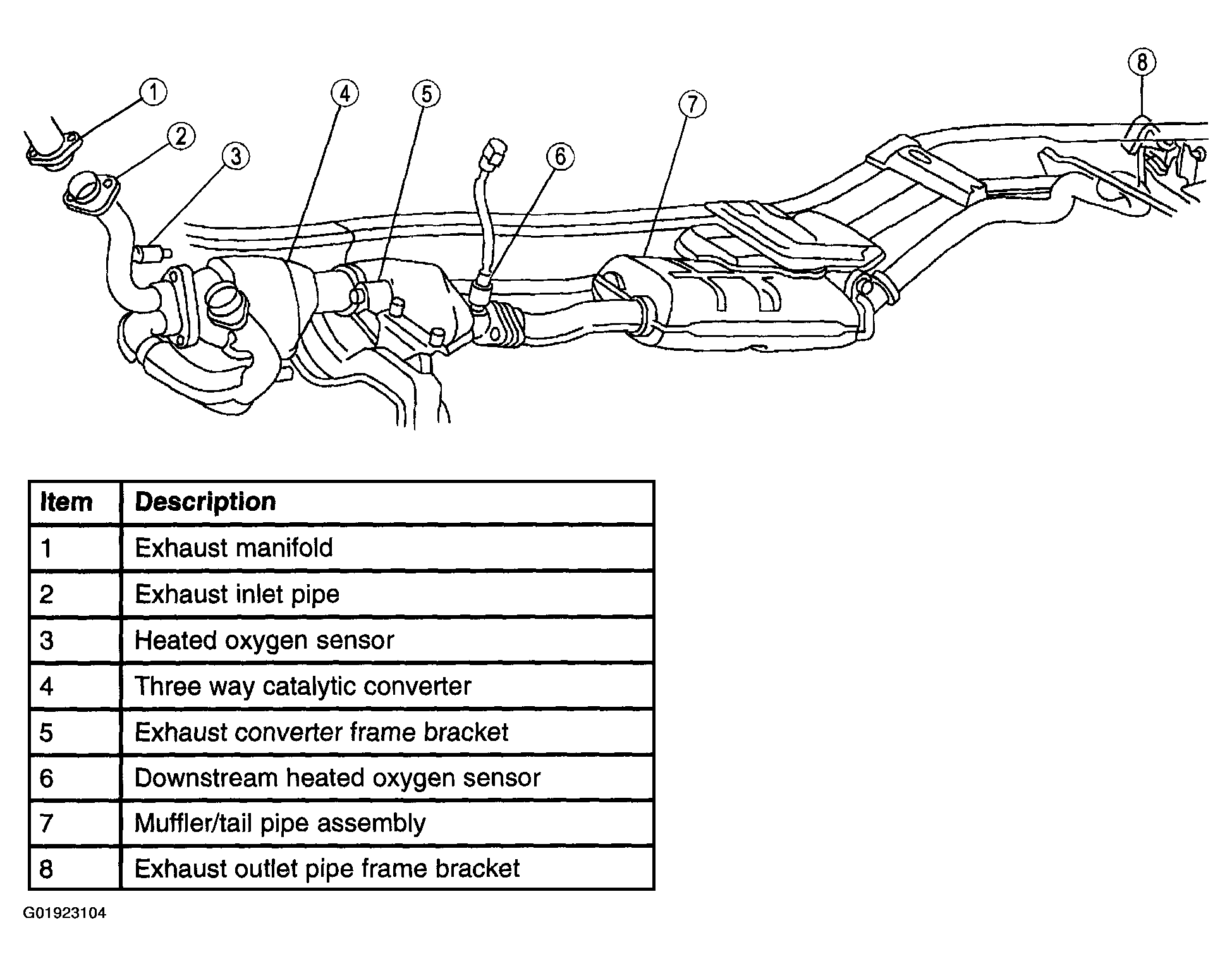

Fig 1: Identifying Exhaust System Components - 4.0L
G01923104Courtesy of MAZDA MOTORS CORP.
