Generic Electronic Module (GEM) Connector End View (C2100a)

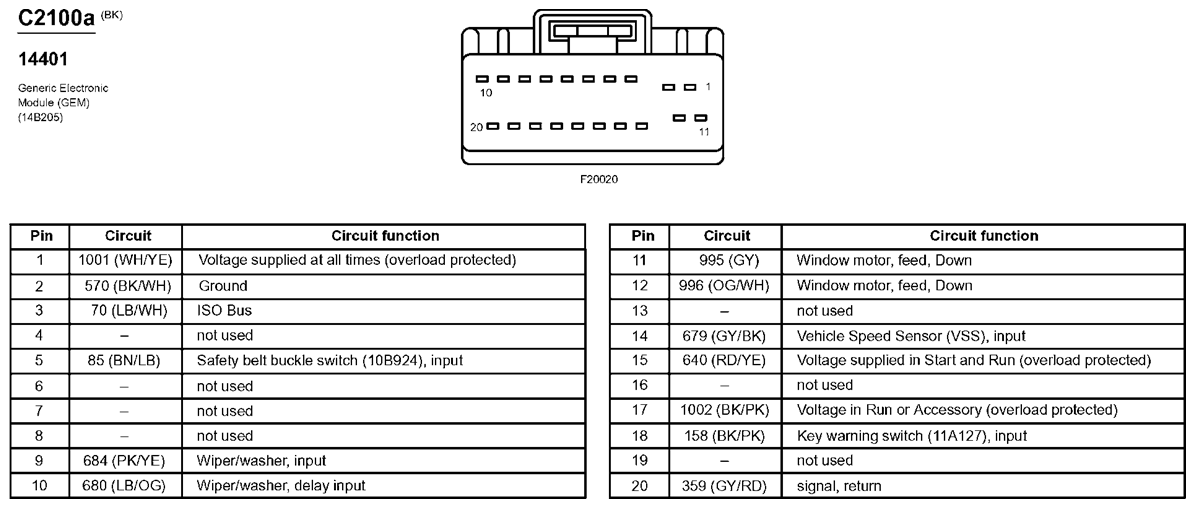

Fig 1: Generic Electronic Module (GEM) Connector End View (C2100a)
G03777133Courtesy of FORD MOTOR CO.
