Symptom Troubleshooting Chart - Power Windows

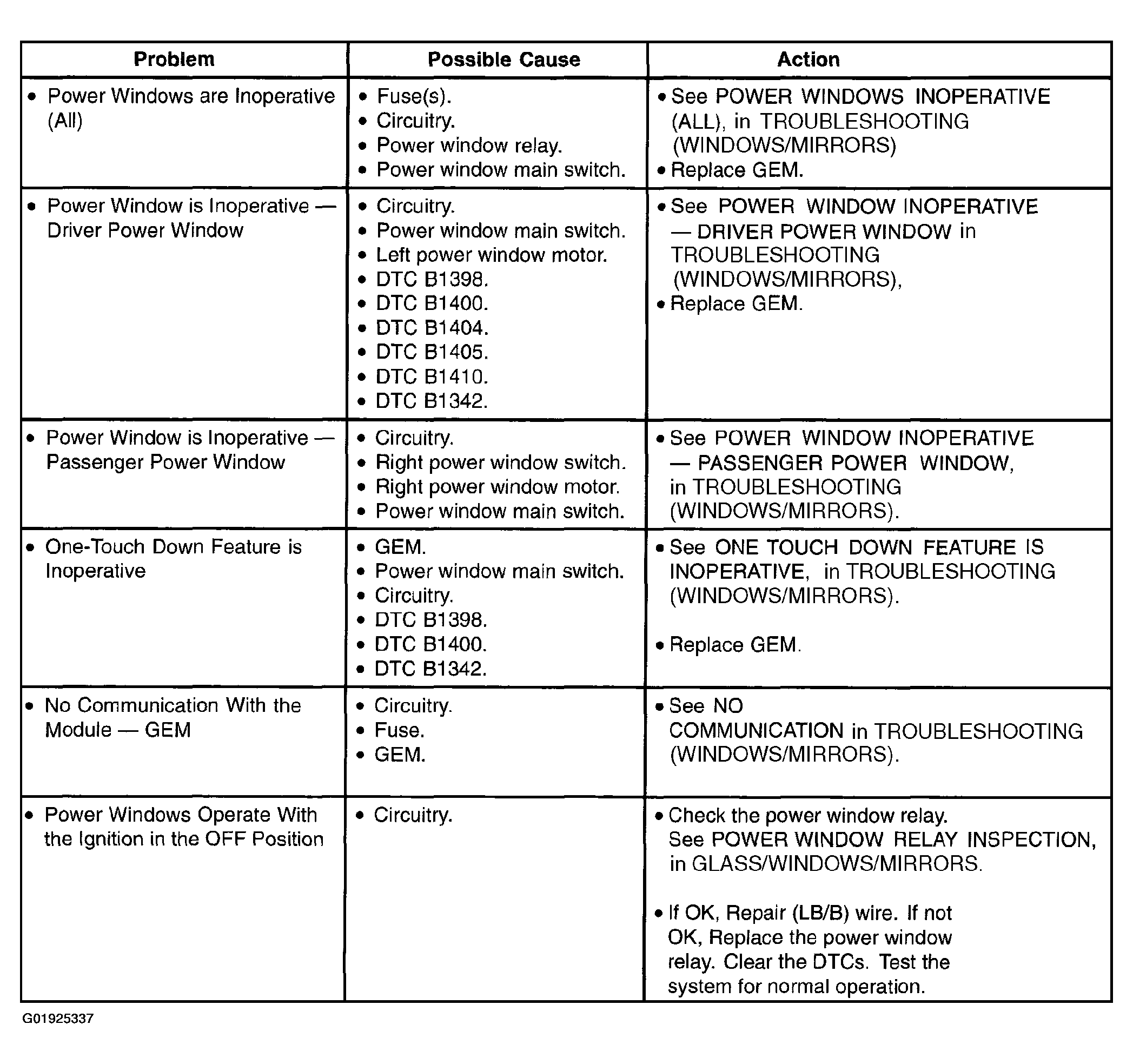

Fig 1: Power Windows Troubleshooting Symptom Chart
G01925337Courtesy of MAZDA MOTORS CORP.
