Power Window Inoperative - Driver Power Window

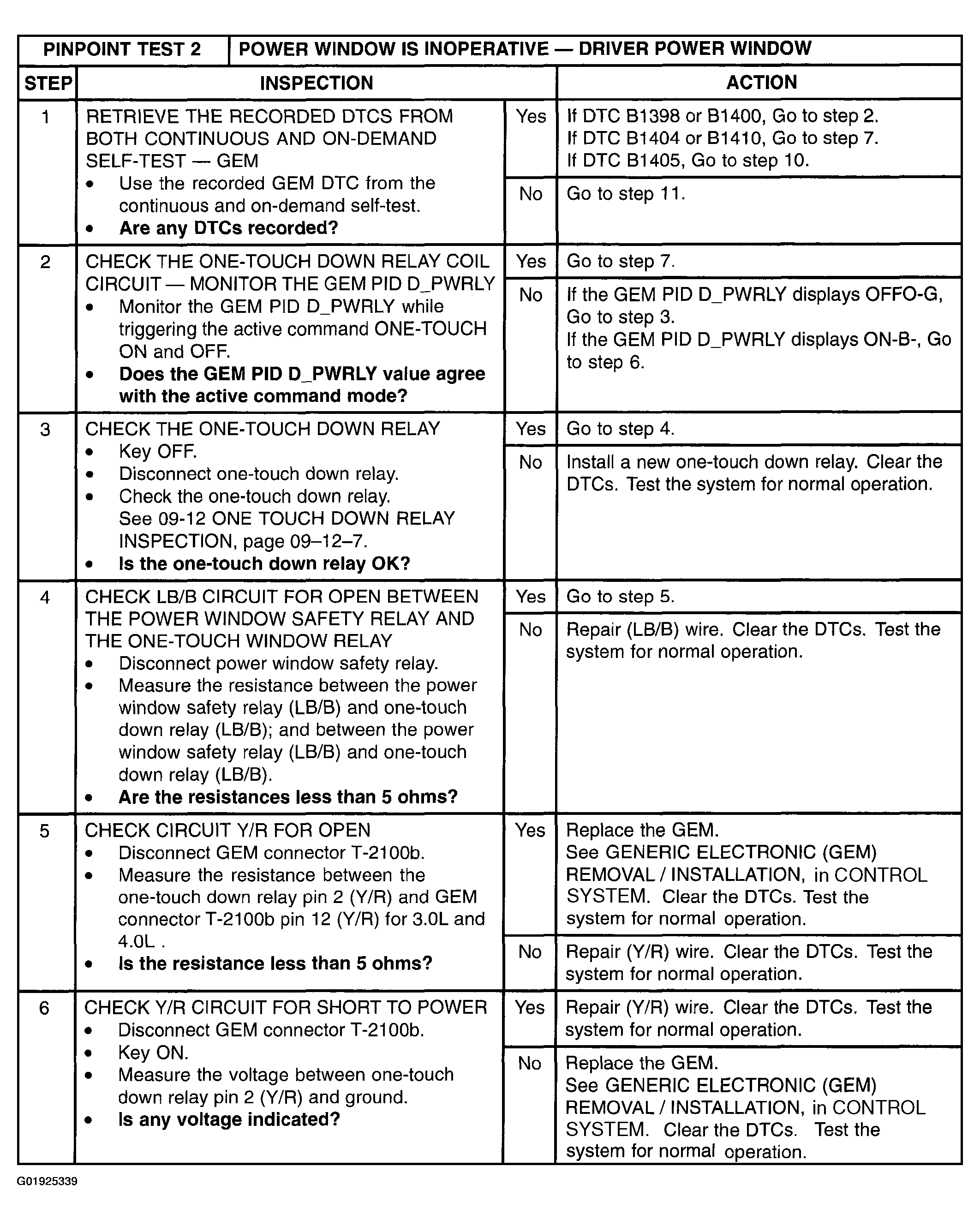

Fig 1: Power Window Inoperative - Driver Power Window (Steps 1-6)
G01925339Courtesy of MAZDA MOTORS CORP.

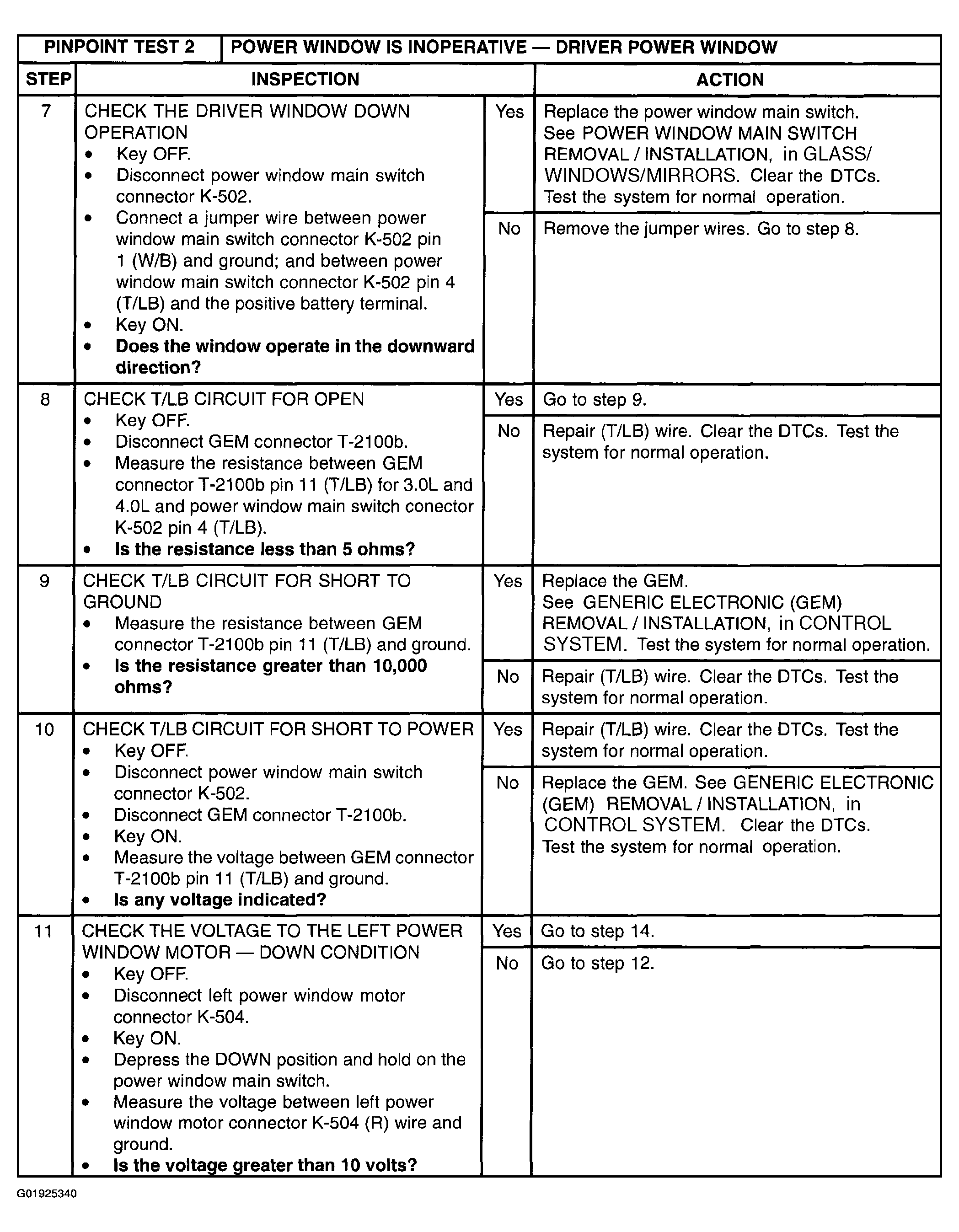

Fig 2: Power Window Inoperative - Driver Power Window (Steps 7-11)
G01925340Courtesy of MAZDA MOTORS CORP.

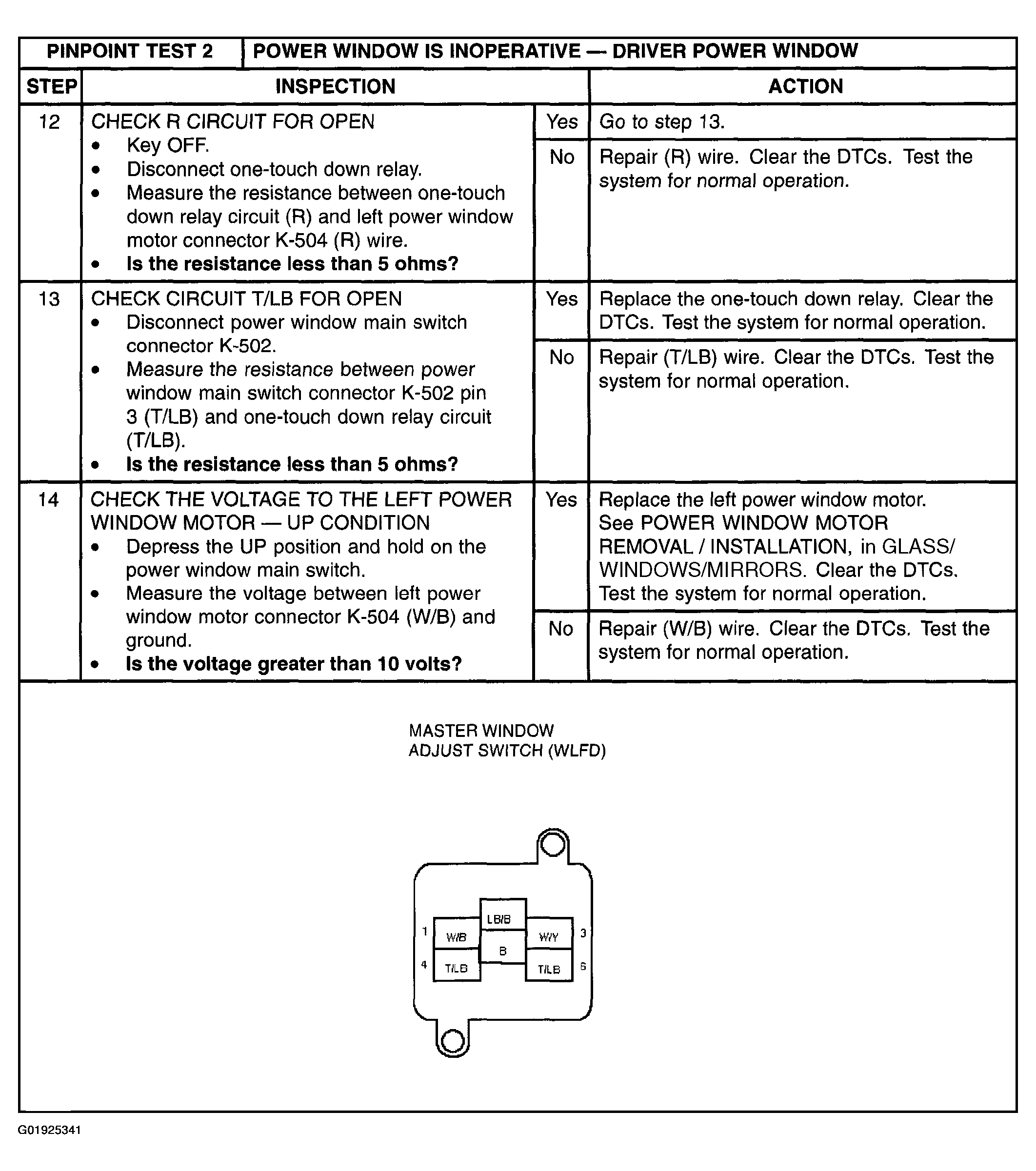

Fig 3: Power Window Inoperative - Driver Power Window (Steps 12-14)
G01925341Courtesy of MAZDA MOTORS CORP.

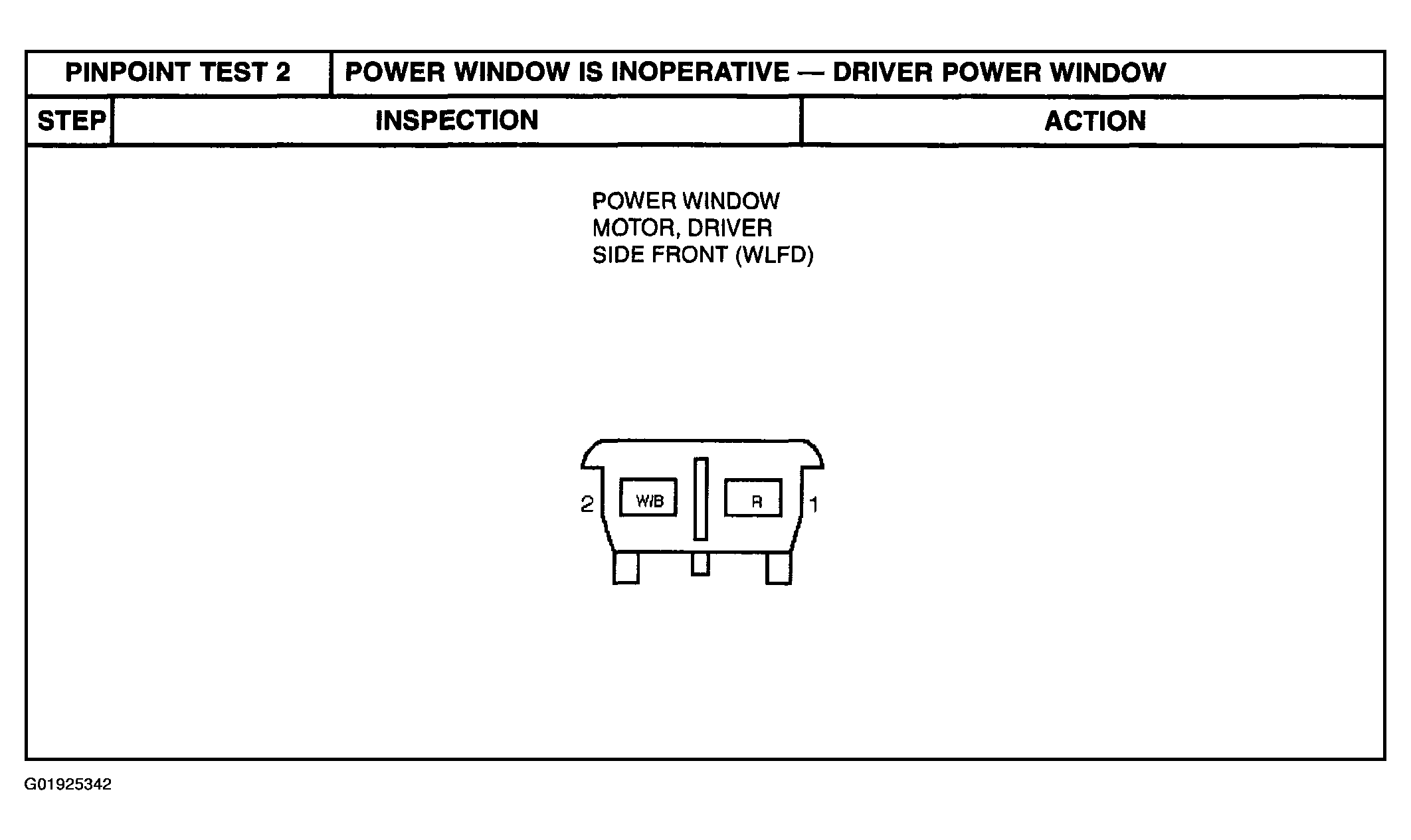

Fig 4: Power Window Motor Connector (Driver Side Front)
G01925342Courtesy of MAZDA MOTORS CORP.

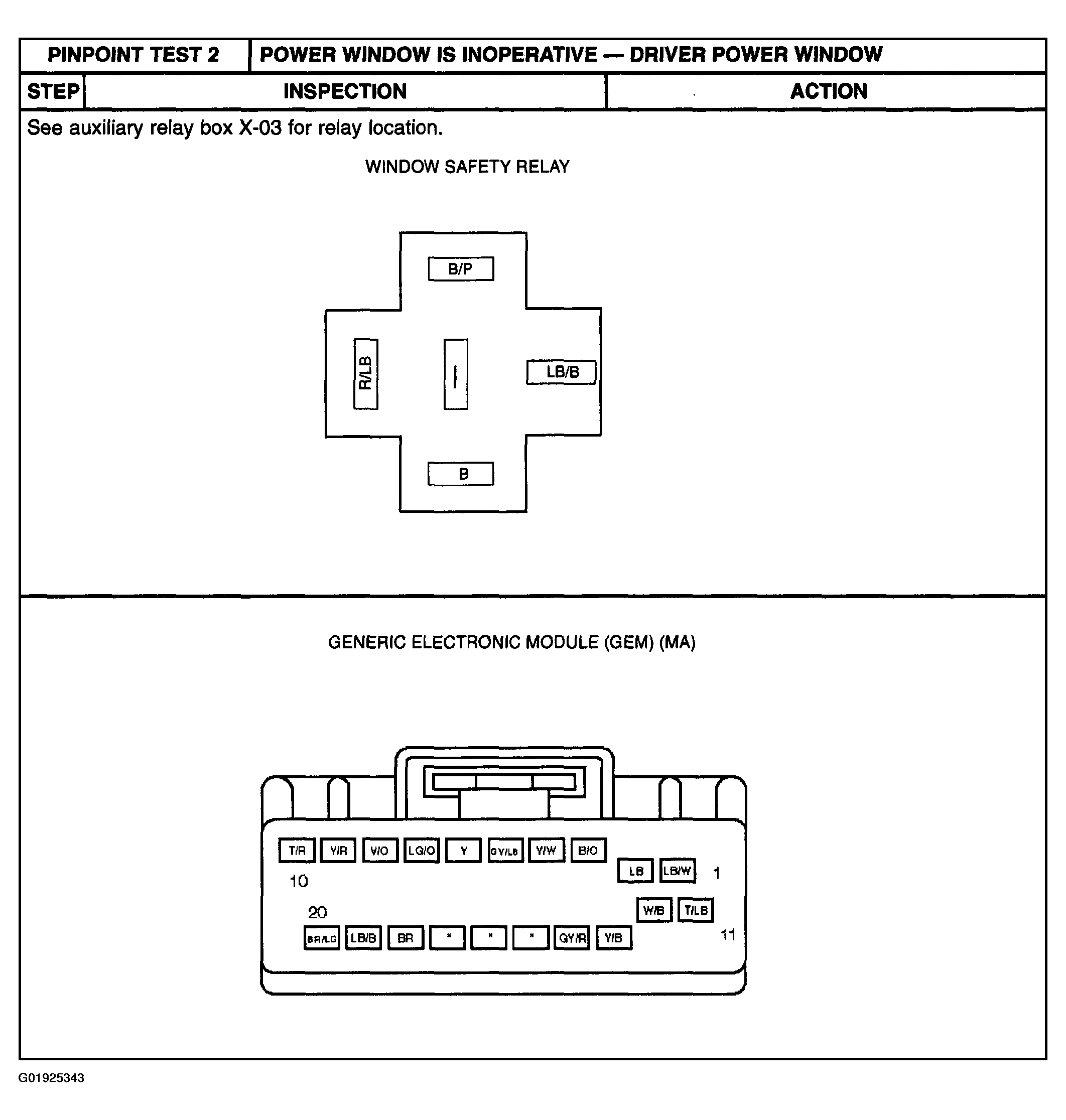

Fig 5: Window Safety Relay Connector & GEM Connector
G01925343Courtesy of MAZDA MOTORS CORP.
