GEM Active Command Index

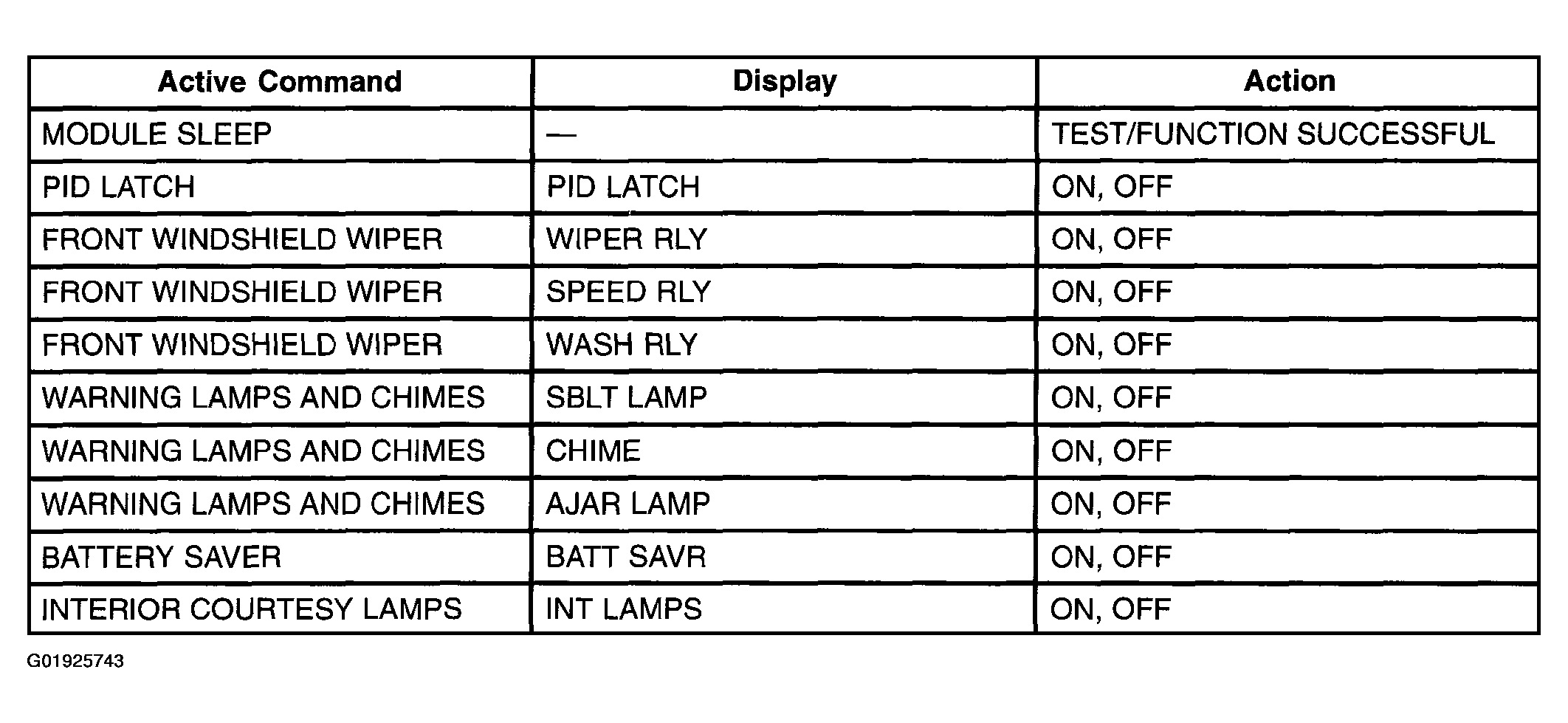

Fig 1: GEM Active Command Index (1 Of 2)
G01925743Courtesy of MAZDA MOTORS CORP.

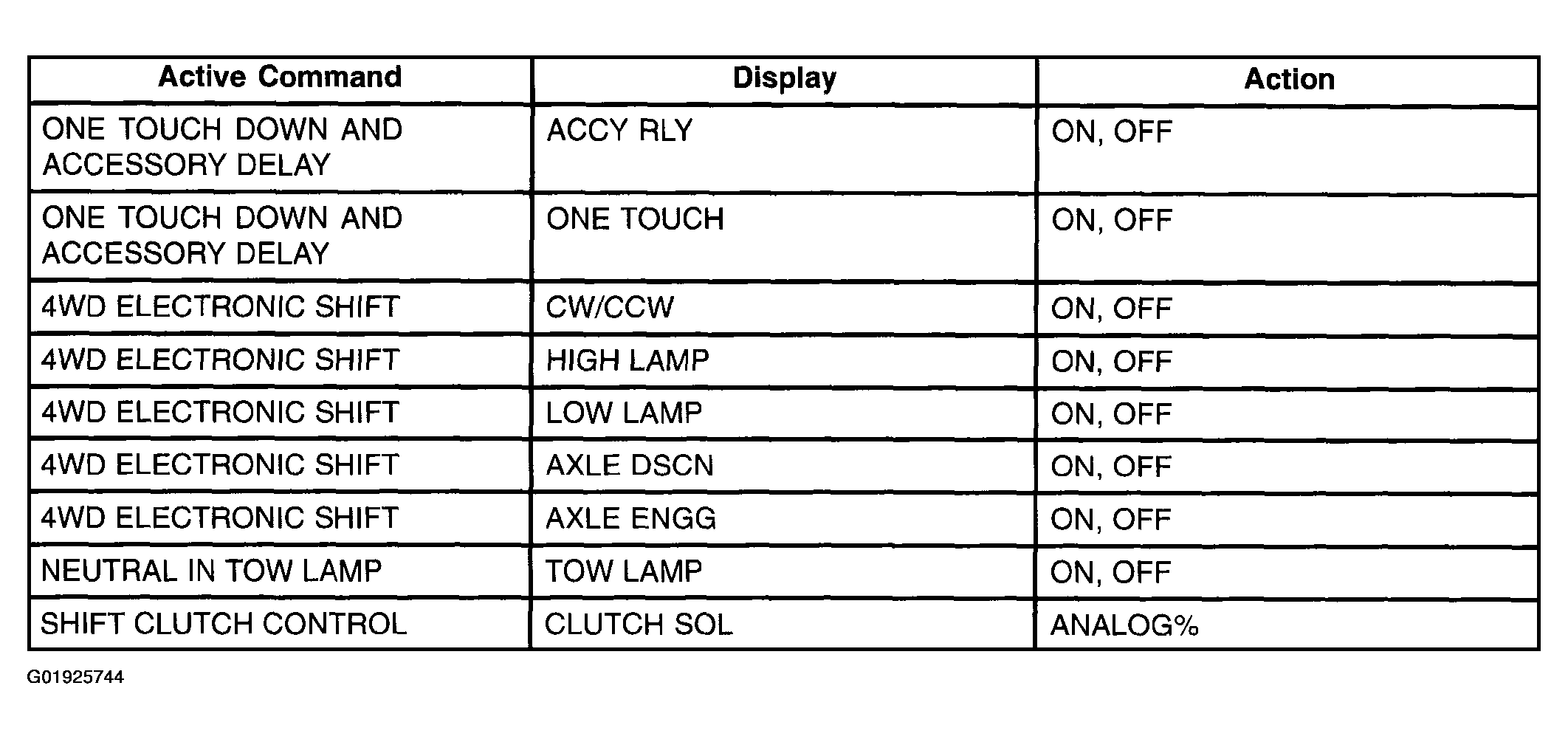

Fig 2: GEM Active Command Index (2 Of 2)
G01925744Courtesy of MAZDA MOTORS CORP.
