Differential Assembly





Front Differential General Specifications





Rear Differential General Specifications

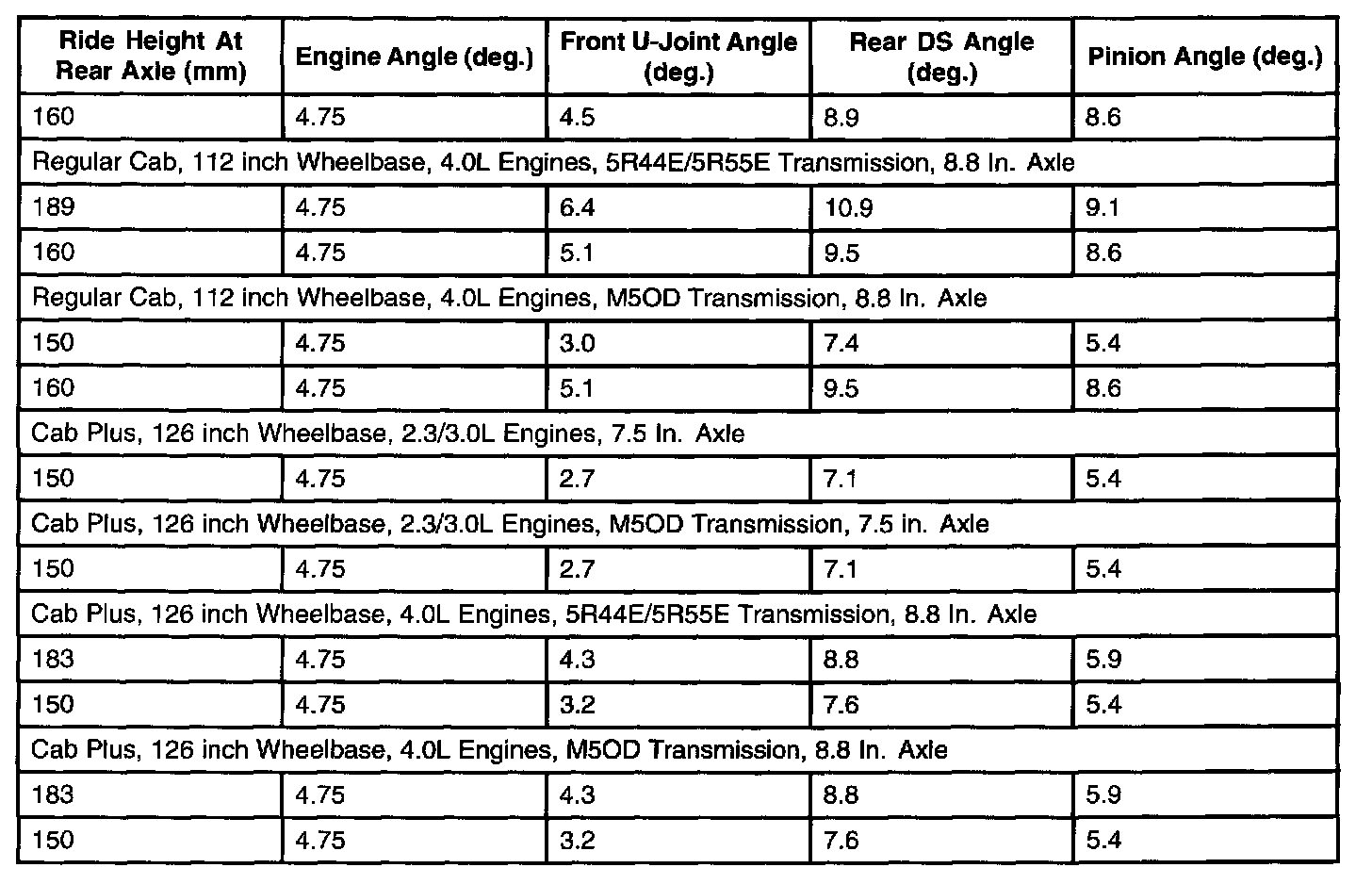

4x4, Rear Driveline Angles @ Curb Specifications
