Module Does Not Respond To The WDS Tester - Diagnostic Monitor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Module Does Not Respond To The WDS Tester - Diagnostic Monitor

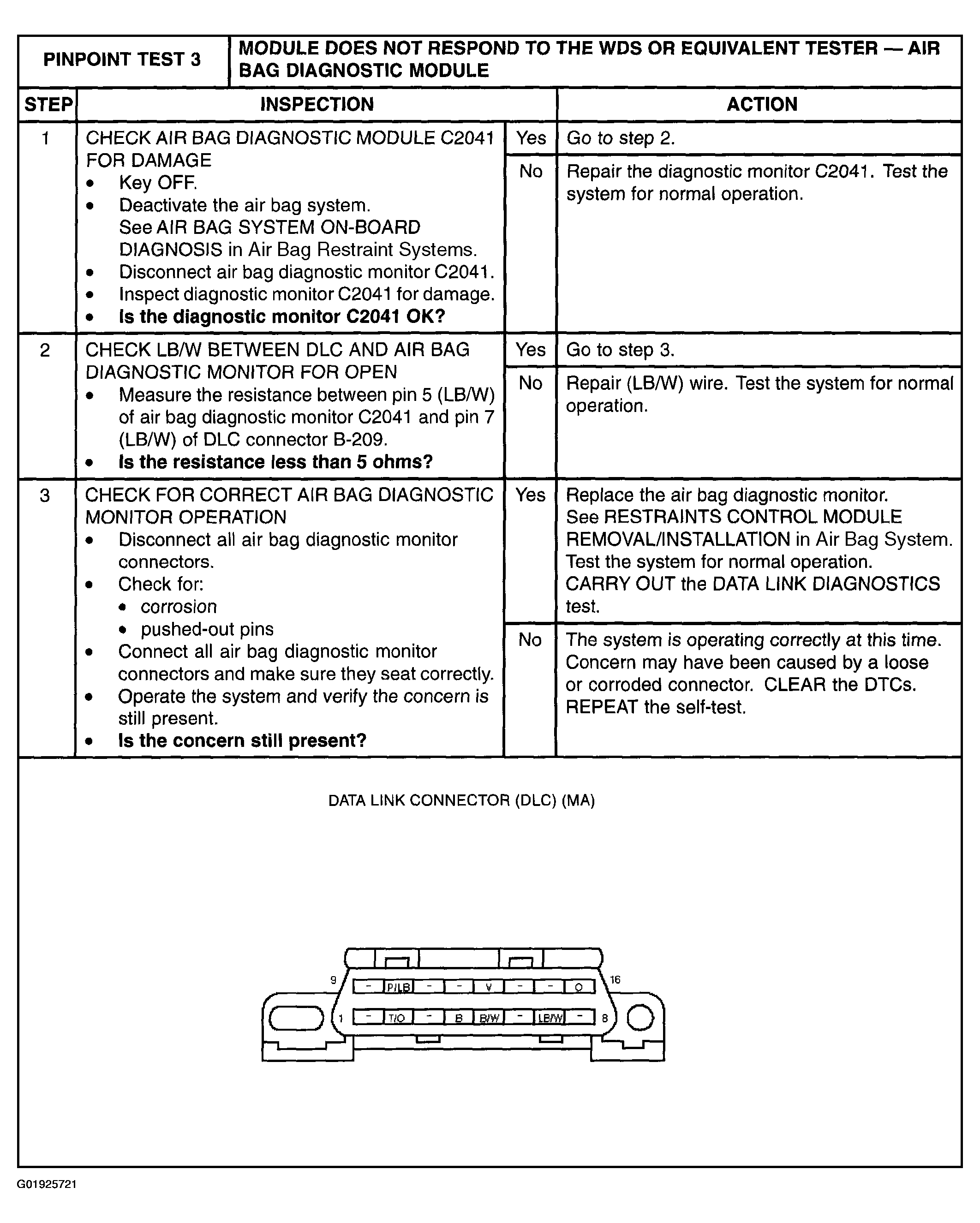

Fig 1: Diagnosis Procedure -- Diagnostic Monitor
Courtesy of MAZDA MOTORS CORP.
