Primary Shaft Components Assembly: Notes

  1. Assemble in the order shown in the figure.

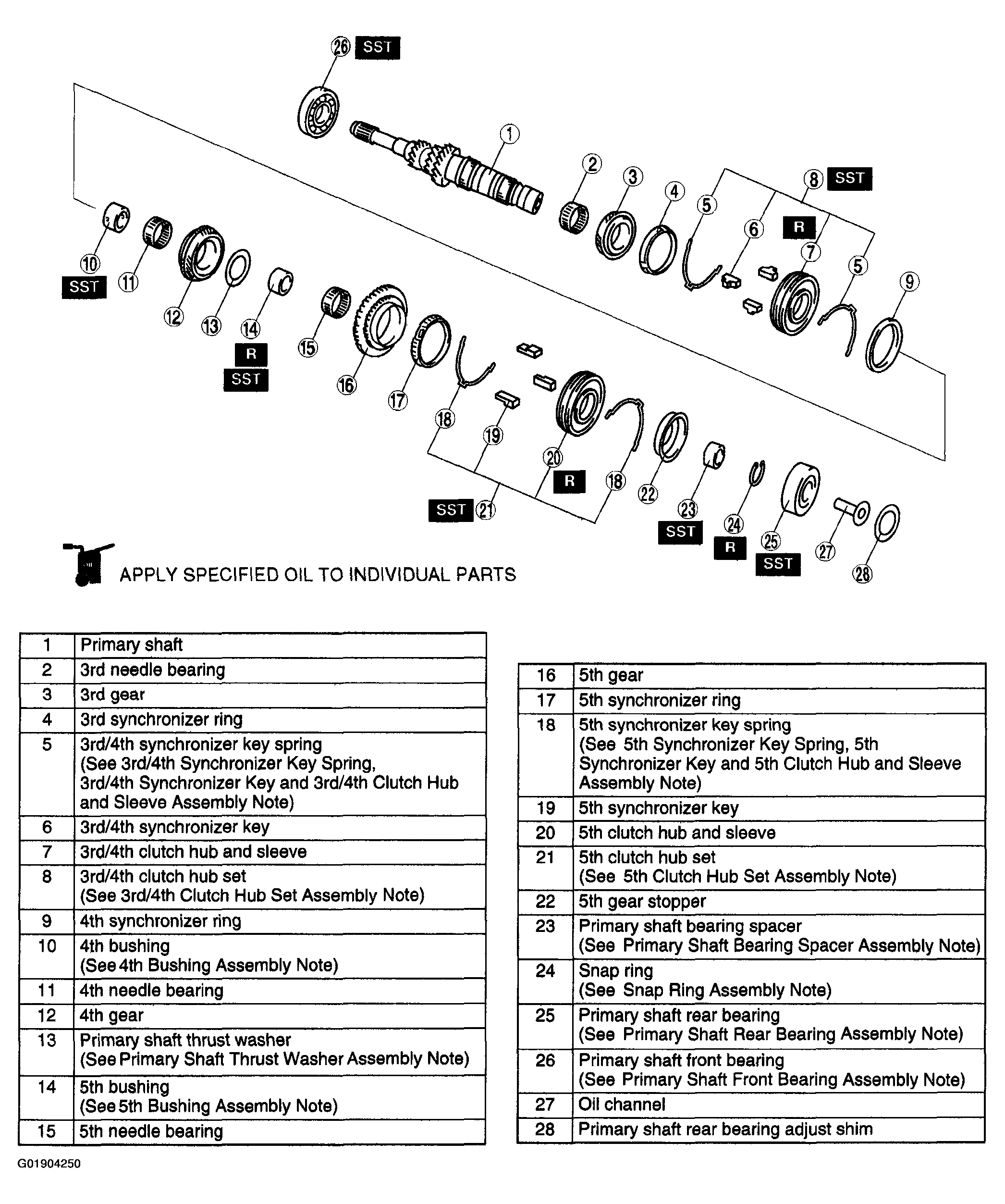

Fig 1: Assembling Primary Shaft
G01904250Courtesy of MAZDA MOTORS CORP.
