Steering Gear And Linkage (L3) Removal/Installation: Notes
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.
- Remove the ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)

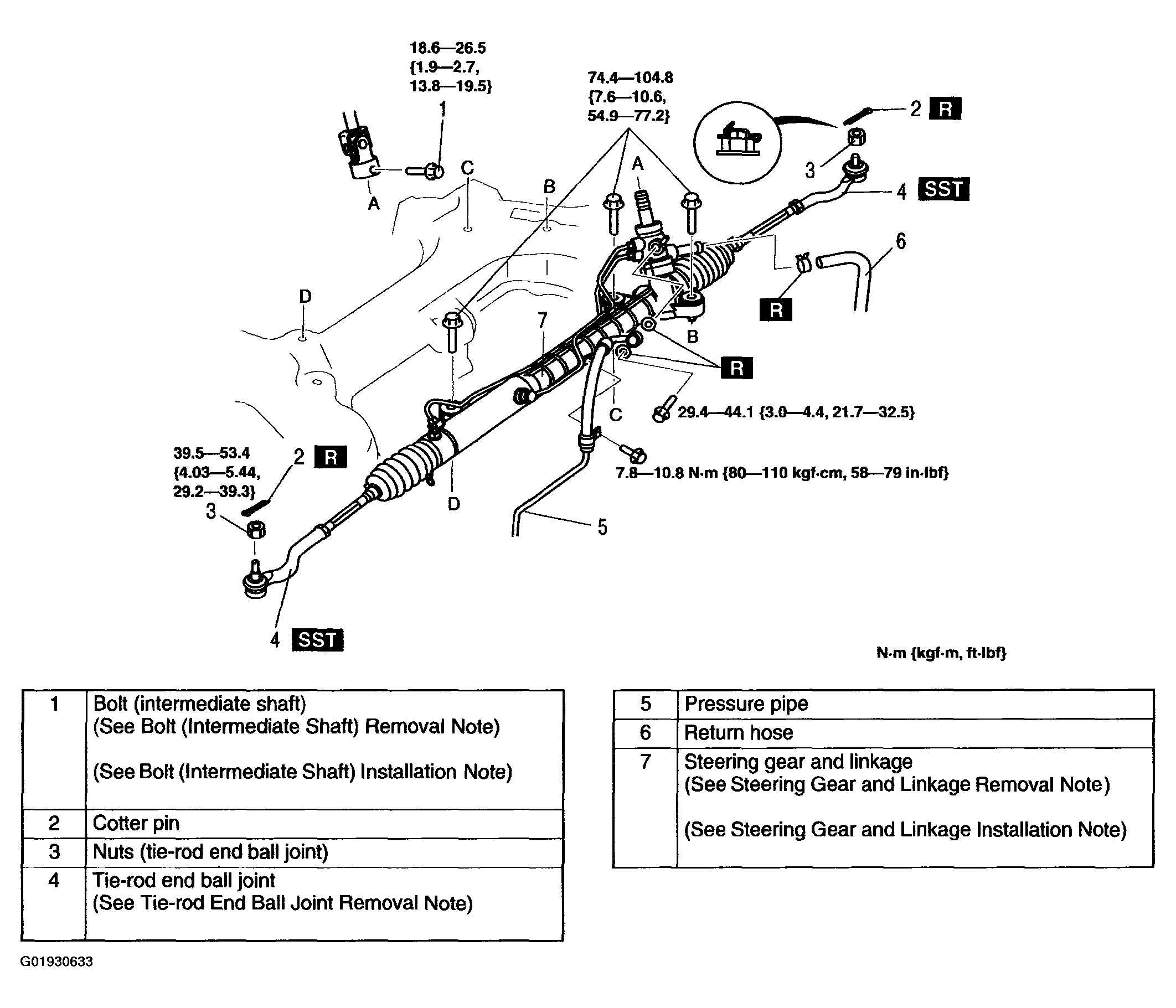

- Remove in the order indicated in Fig 1.
- Install in the reverse order of removal.
- After installation, inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT .)
