Selector Lever Disassembly/Assembly

  1. Disassemble in the order shown in Fig 1 .

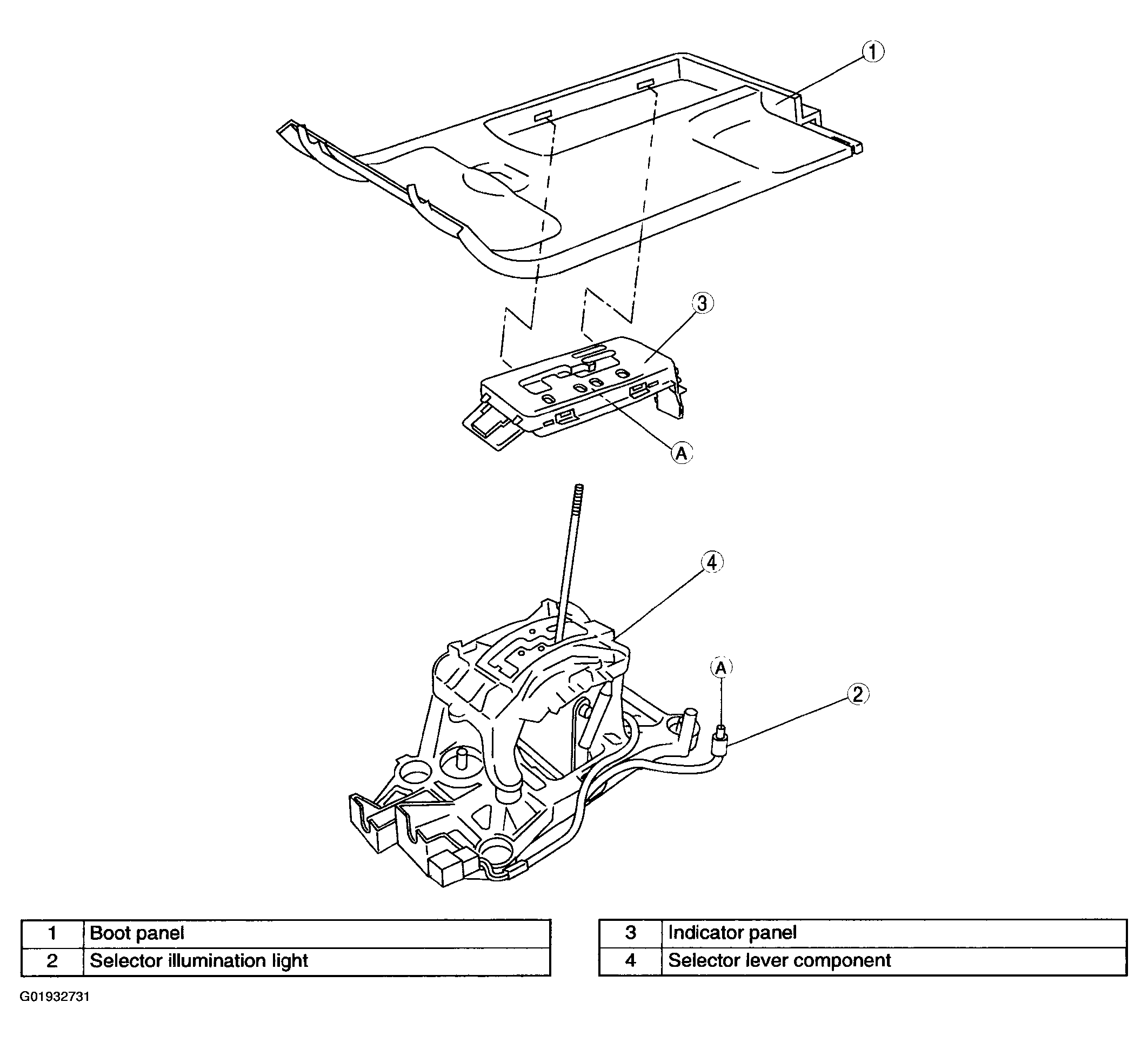

    Fig 1: Disassembling Selector Lever
    G01932731Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
