Removal & Installation (MPV)

For many engine sensors and switches, removal and installation procedures are not available from the manufacturer. For locations of engine sensors and switches, see Fig 1.

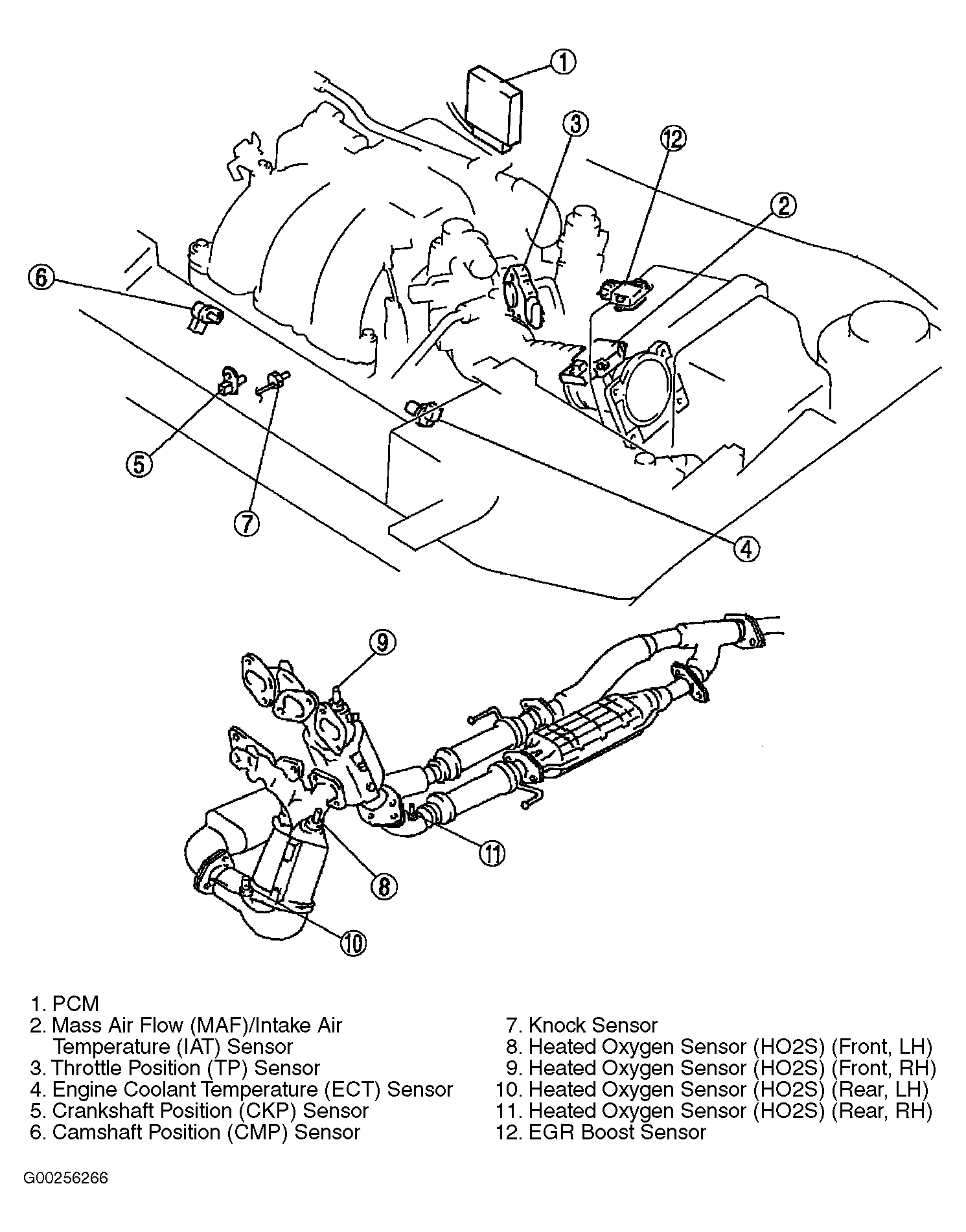

Fig 1: Locating Engine Control System Components - MPV

Courtesy of MAZDA MOTORS CORP.
