Manual Transaxle Installation Note

  1. Set the transaxle on a jack and lift into place.

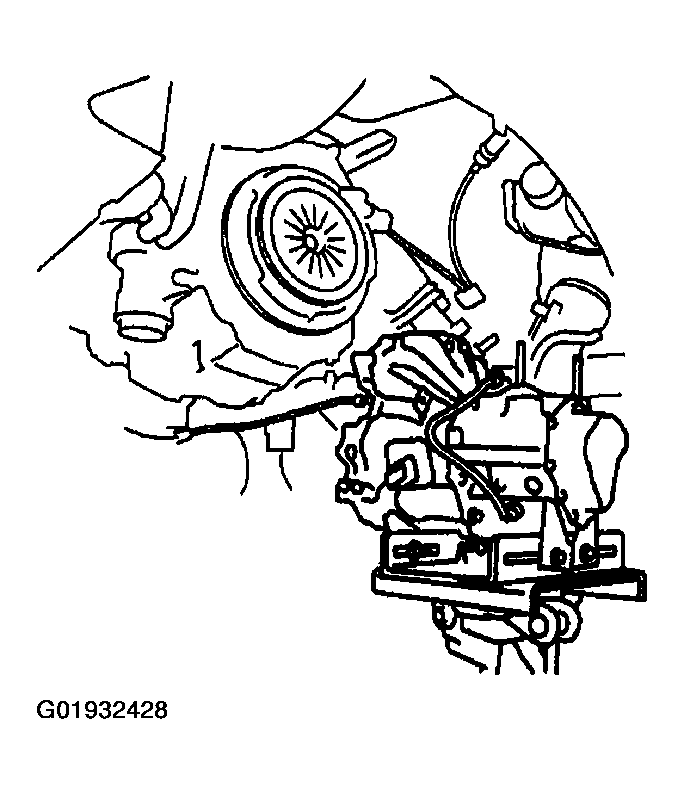

    Fig 1: Installing Manual Transaxle
    G01932428Courtesy of MAZDA MOTORS CORP.
  2. Install the transaxle mounting bolts.
  3. Tighten the SST  (49 E017 5A0) so that the engine is located at the specified position.
