Technical Data

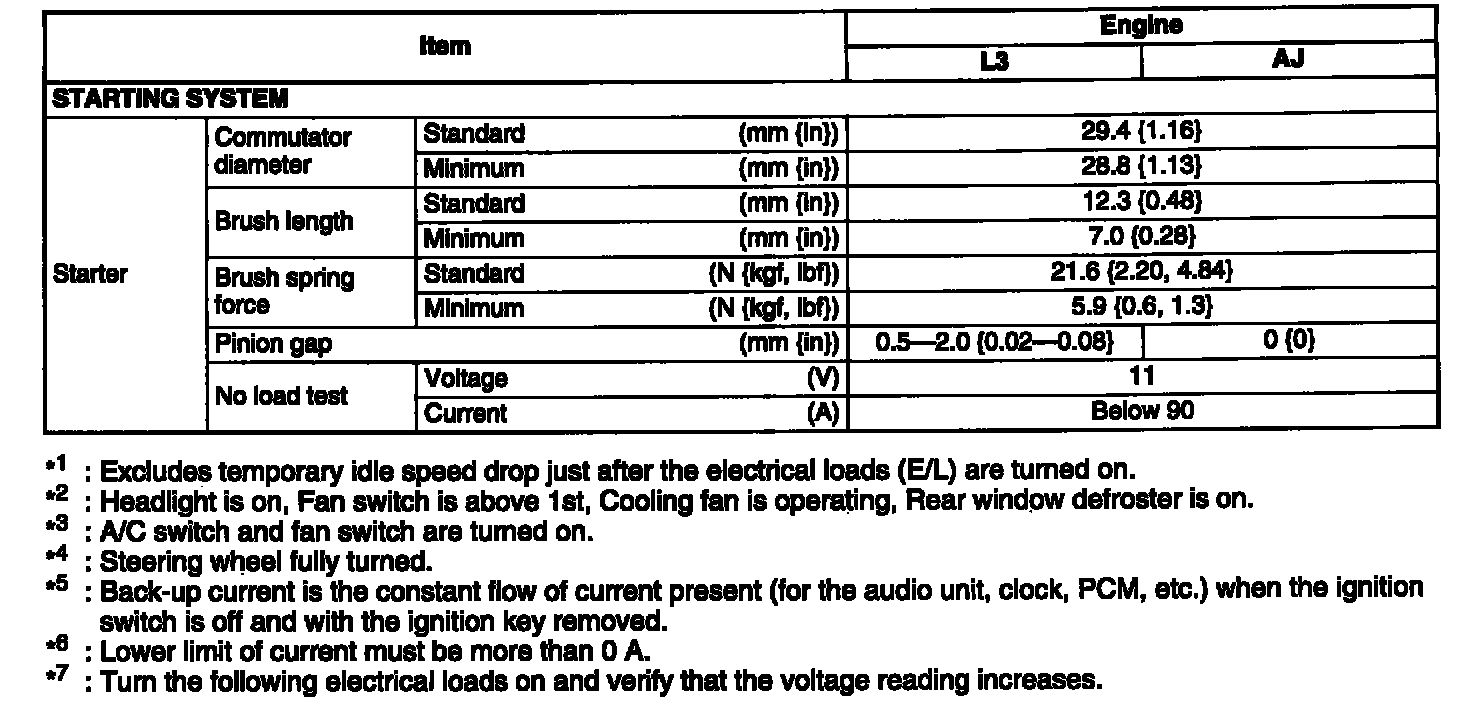

Part 1 (L3 = 2.3L / AJ = 3.0L):

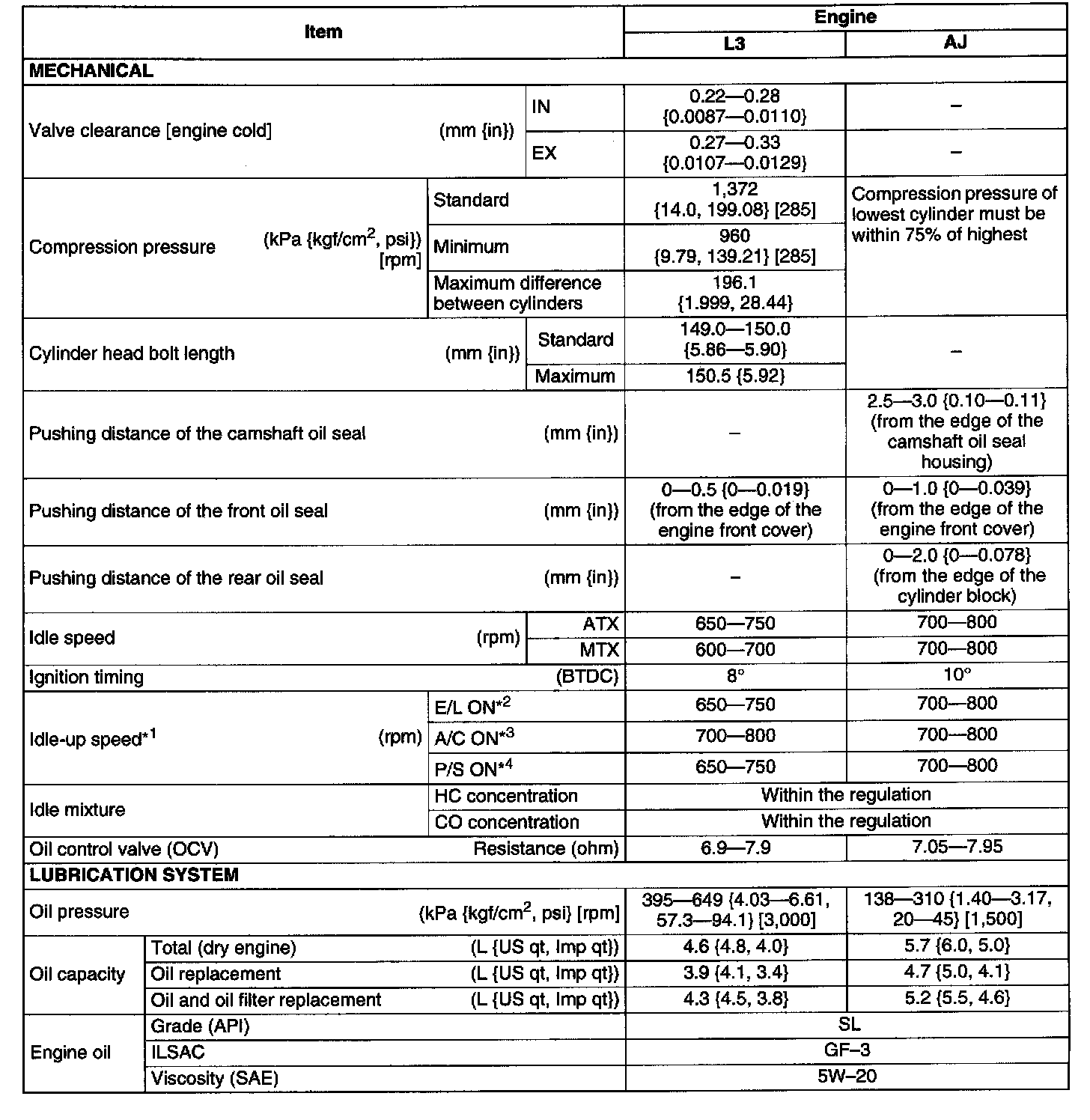

Part 2 (L3 = 2.3L / AJ = 3.0L):

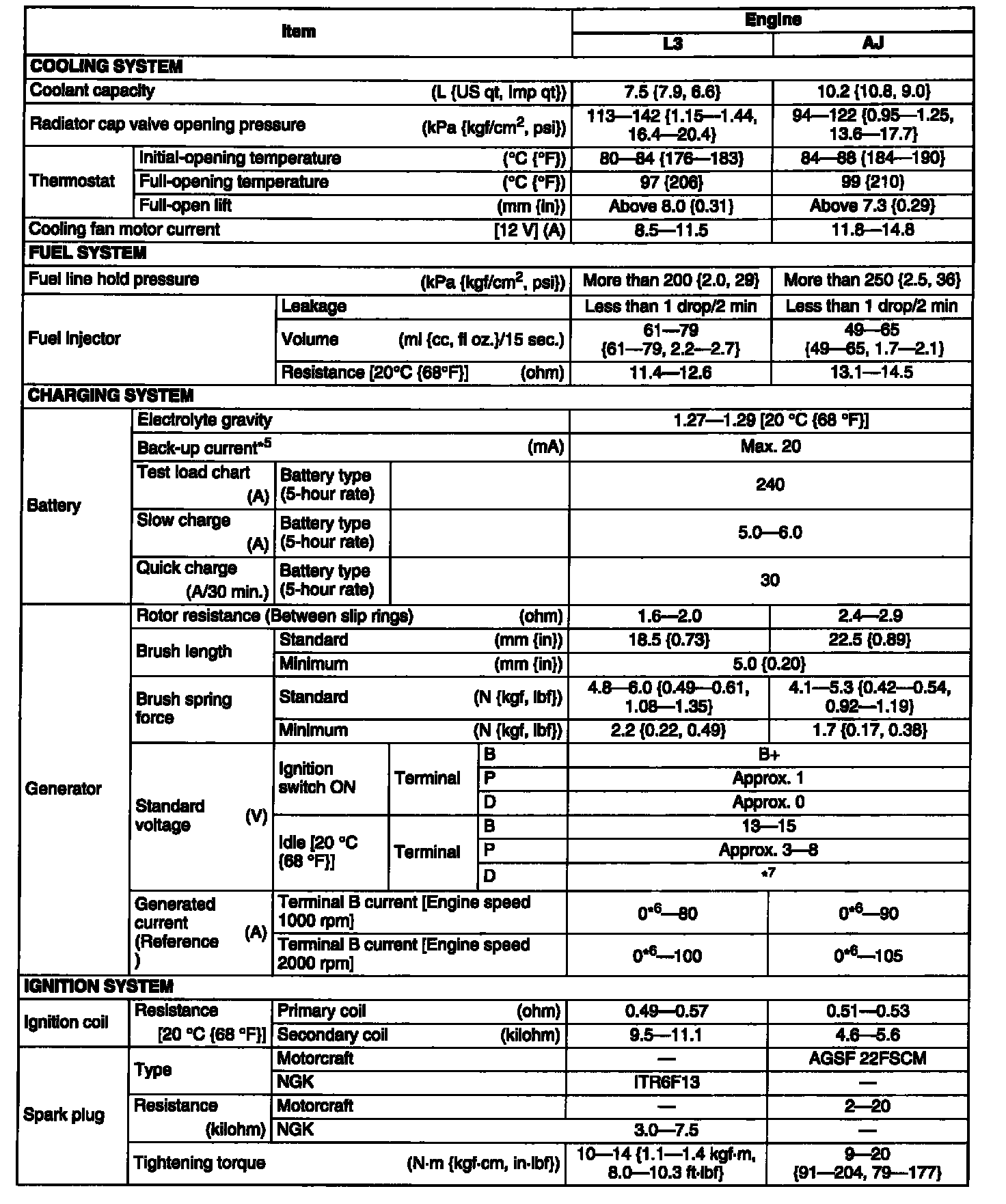

Part 3 (L3 = 2.3L / AJ = 3.0L):
