Full Auto Air Conditioning

PWM UNIT INSPECTION

1. Connect the PWM unit connector.
2. Turn the ignition switch to ON position.

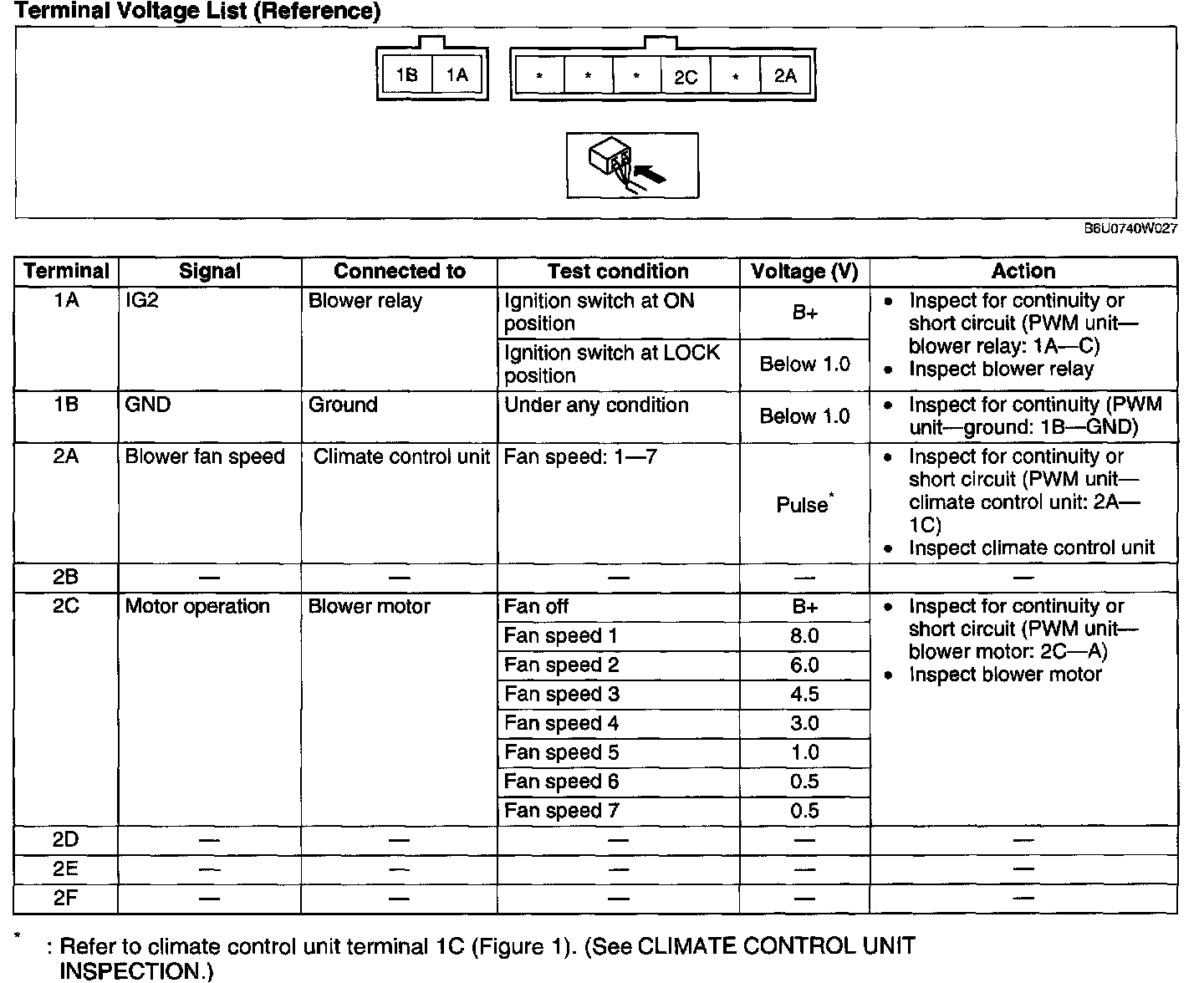

Terminal Voltage List (Reference) - (Terminal 1A - 2F):

3. Measure the voltage at each PWM unit terminal and refer to the terminal voltage list.
- If not as specified, inspect the parts listed under "Action" and the related wiring harness.
