Front

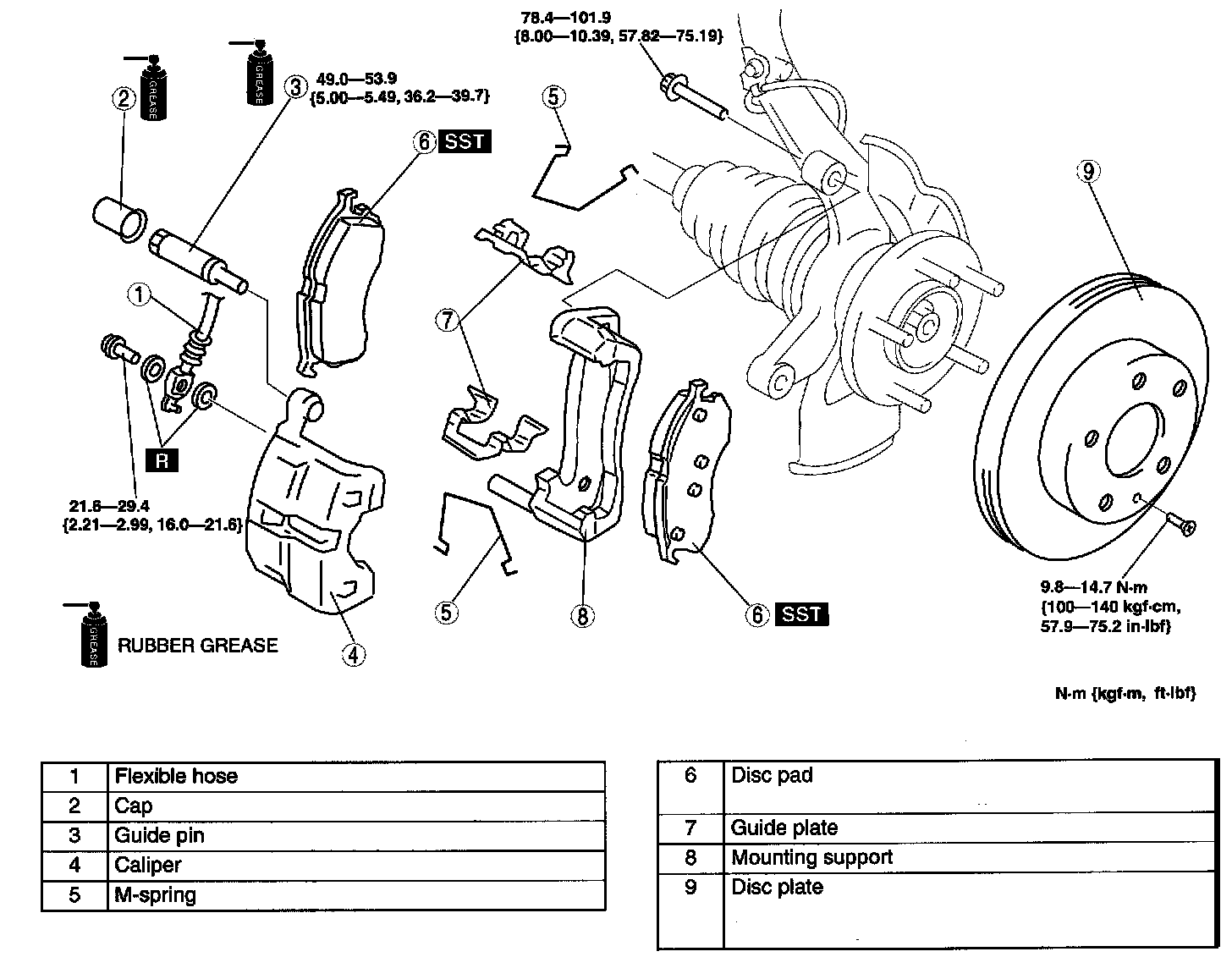

DISC PAD (FRONT) REPLACEMENT





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
