Images

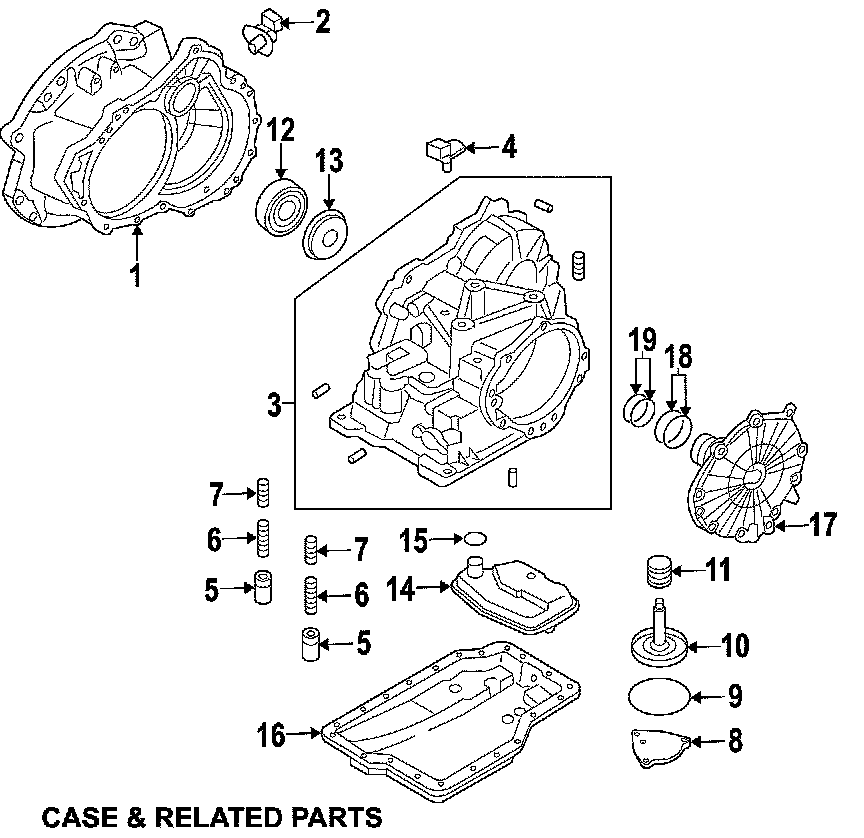

Case & Related Parts, 4 Speed:

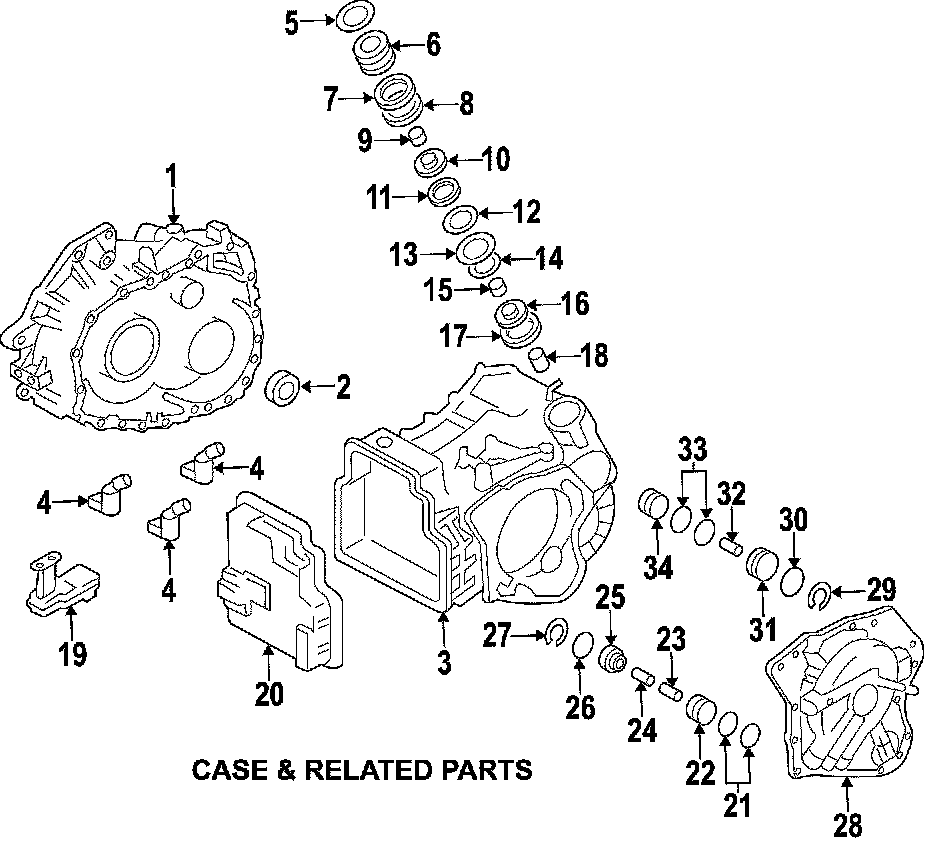

Case & Related Parts, 5 Speed:
Differential, 4 Speed:
Differential, 5 Speed:

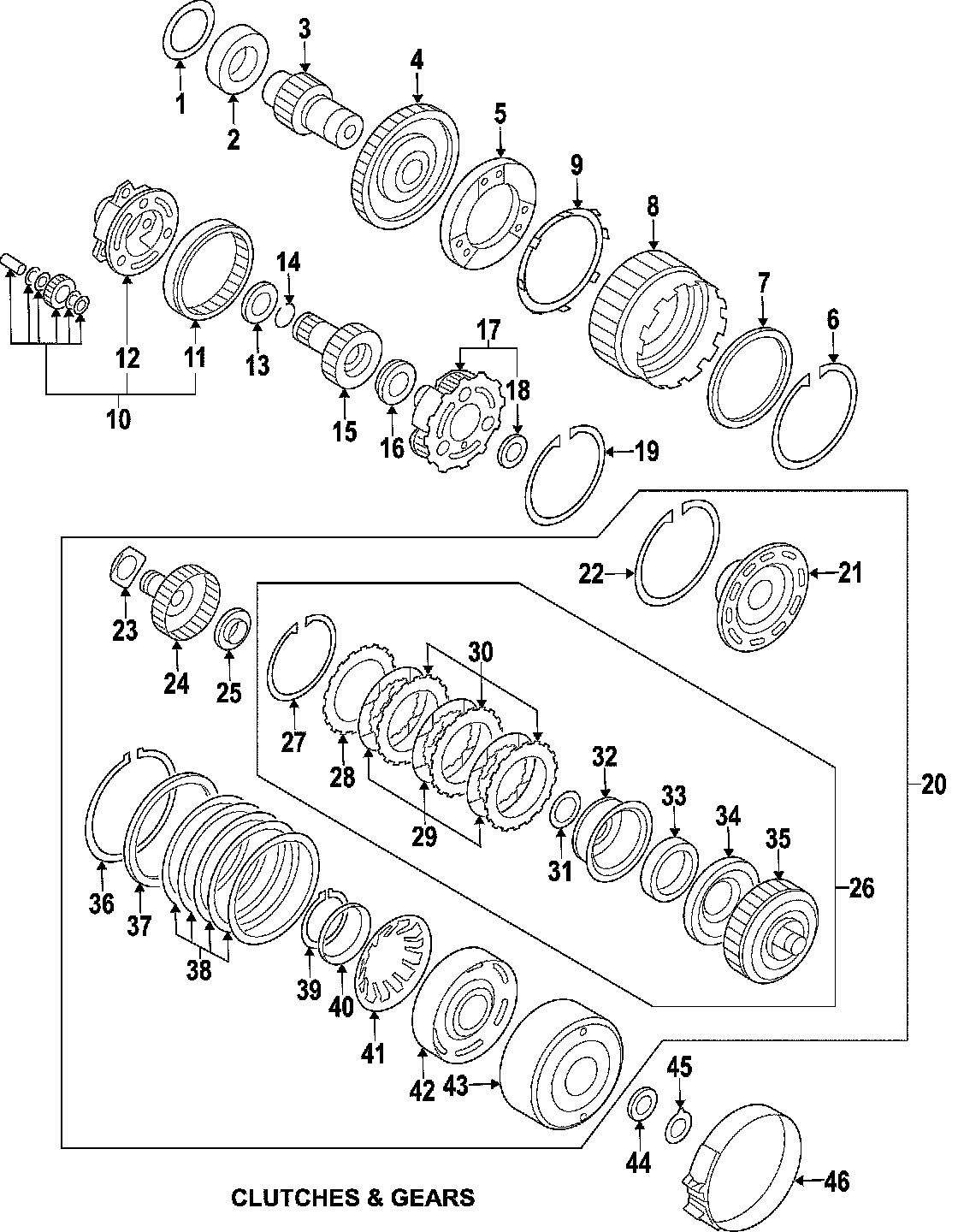

Clutches & Planetary Gears, 4 Speed:
Oil Pump & Related Parts, 4 Speed:
Oil Pump & Related Parts, 5 Speed:

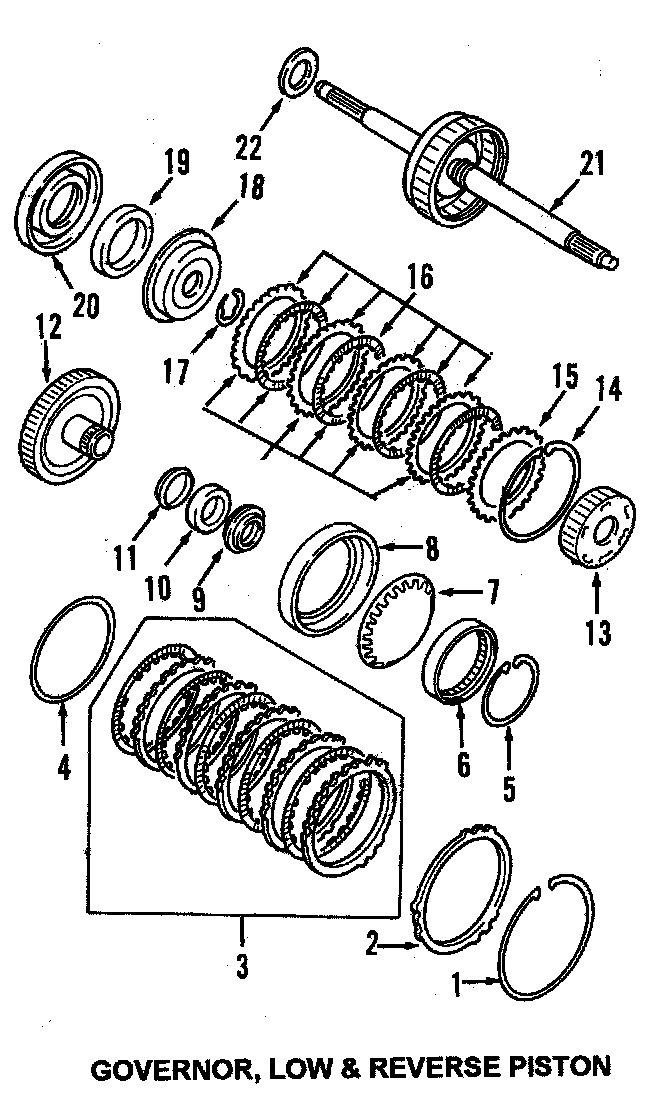

Governor, Low & Reverse Piston, 4 Speed:

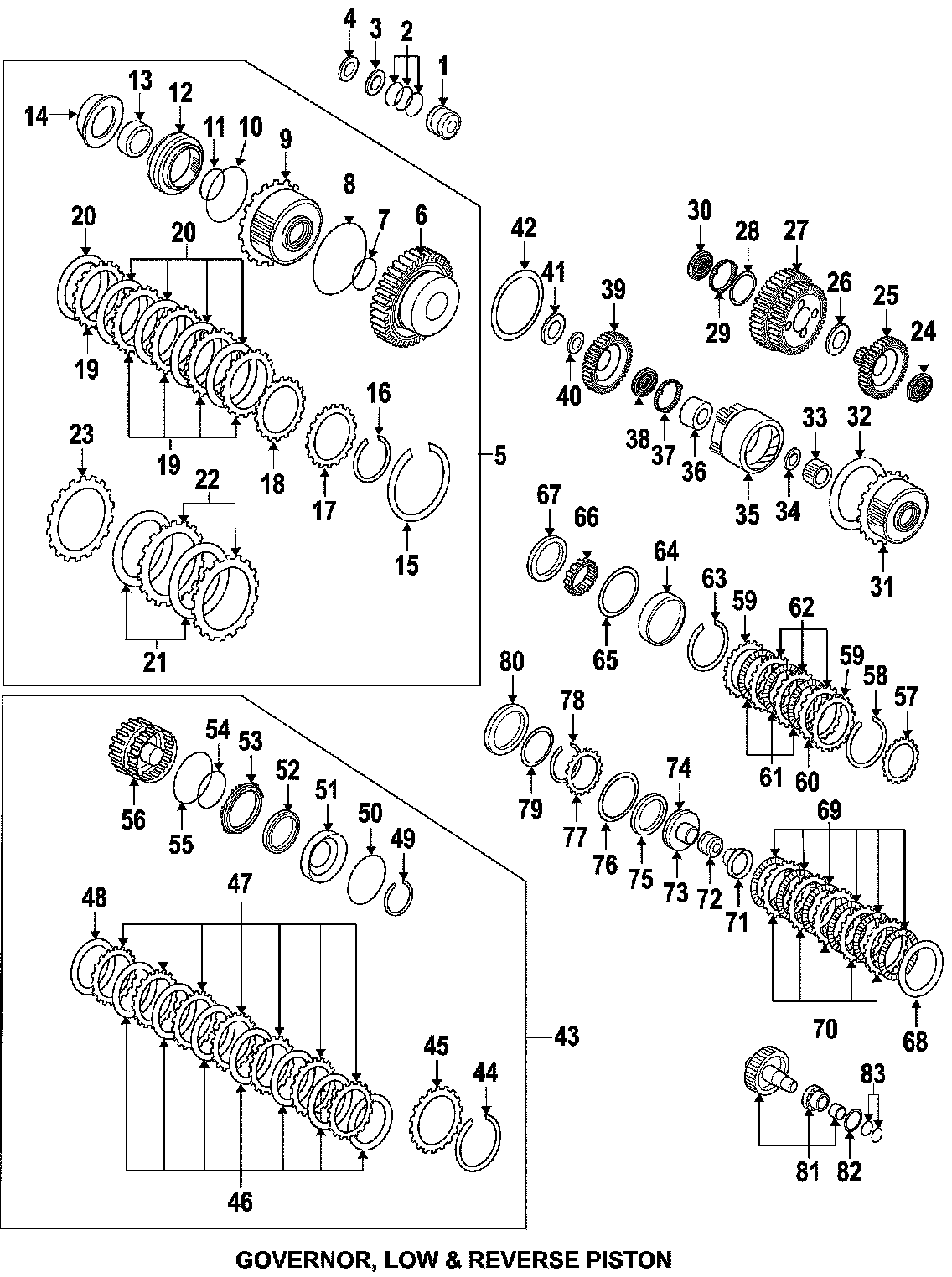

Governor, Low & Reverse Piston, 5 Speed:

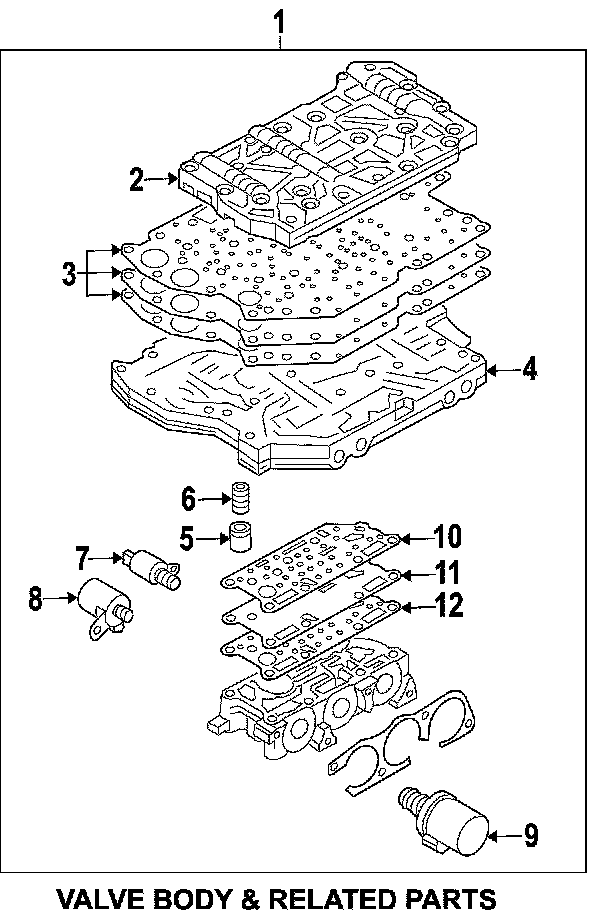

Valve Body & Related Parts, 4 Speed:

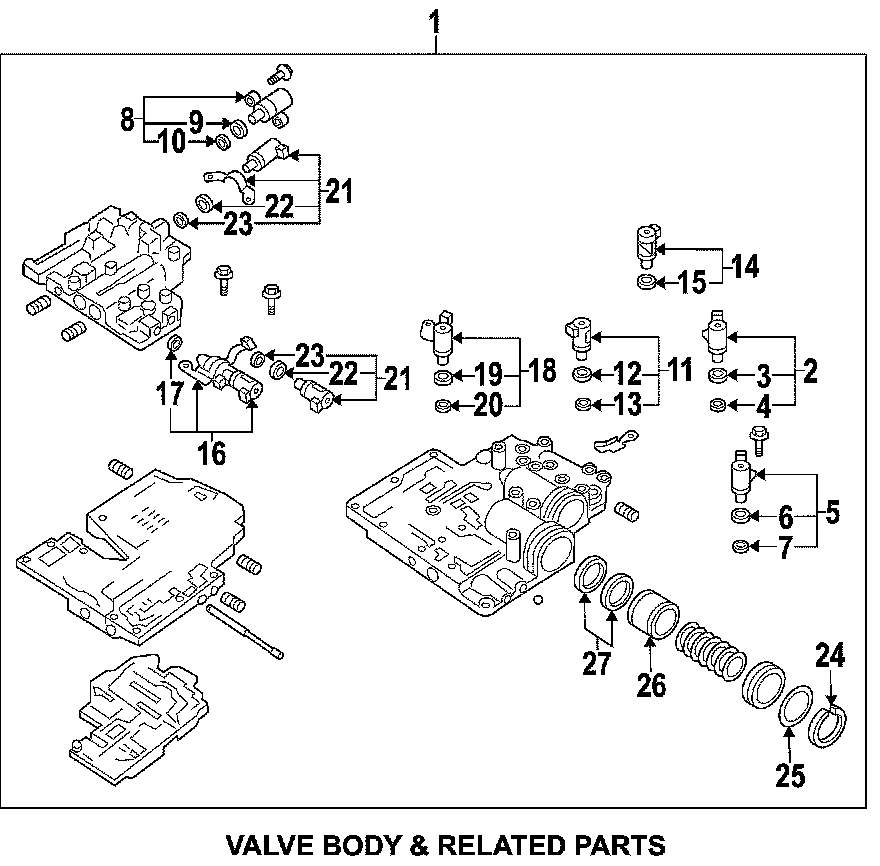

Valve Body & Related Parts, 5 Speed:

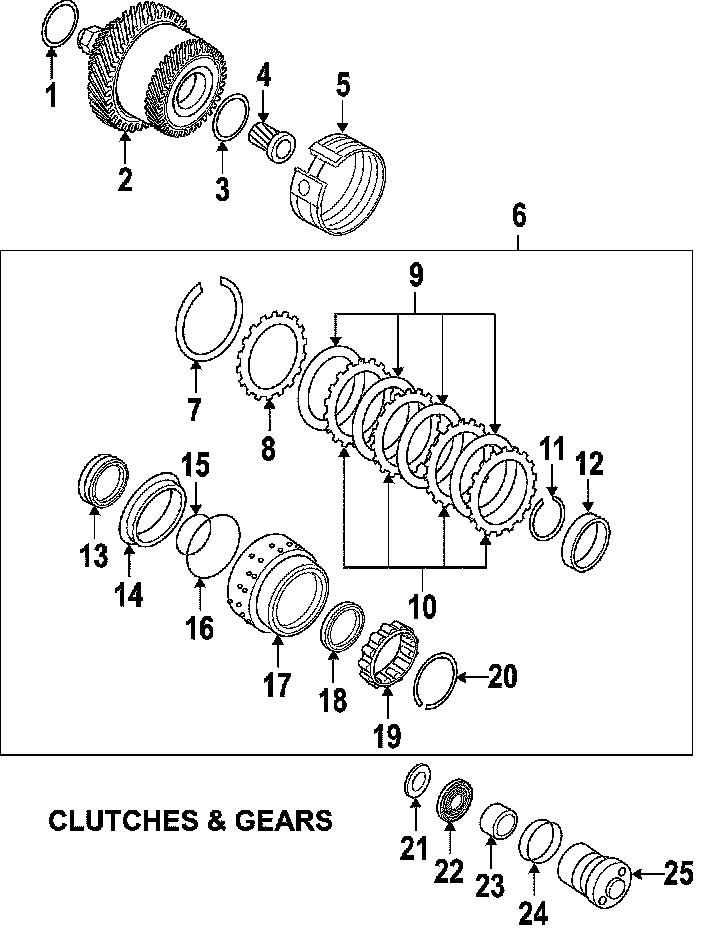

Direct Clutch & Planetary Gear, 5 Speed:
