DTC P1780: Transaxle Control Switch (TCS) Or Transaxle Control Indicator Lamp (TCIL) Circuit Malfunction

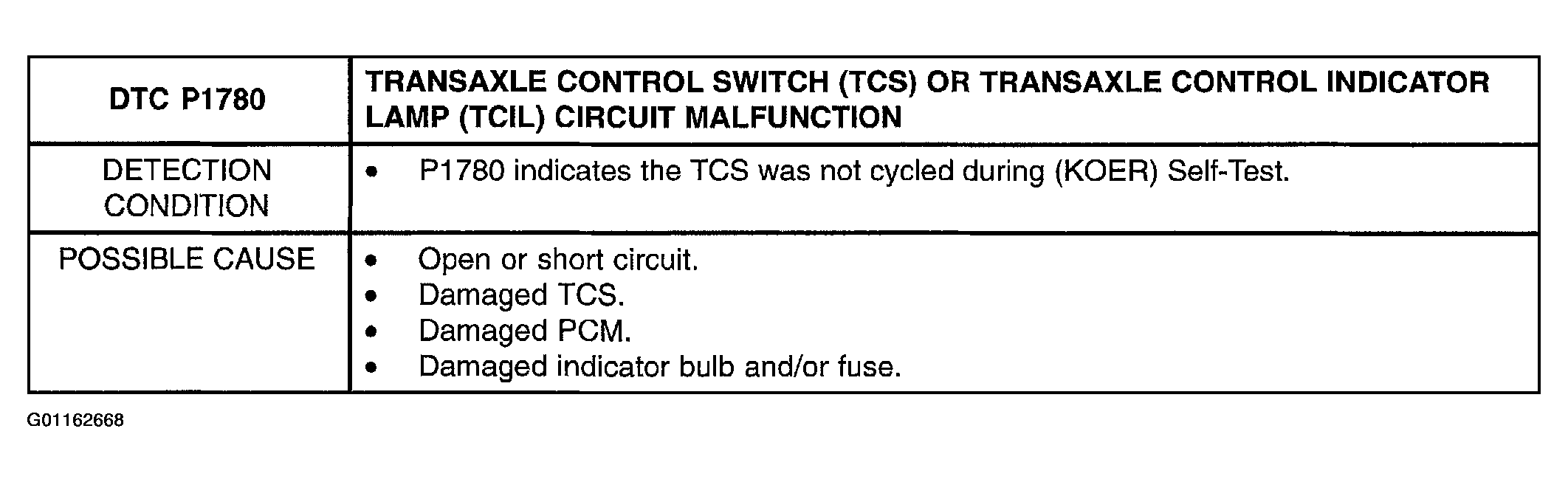

Fig 1: DTC P1780 Detection & Possible Cause

Courtesy of MAZDA MOTORS CORP.

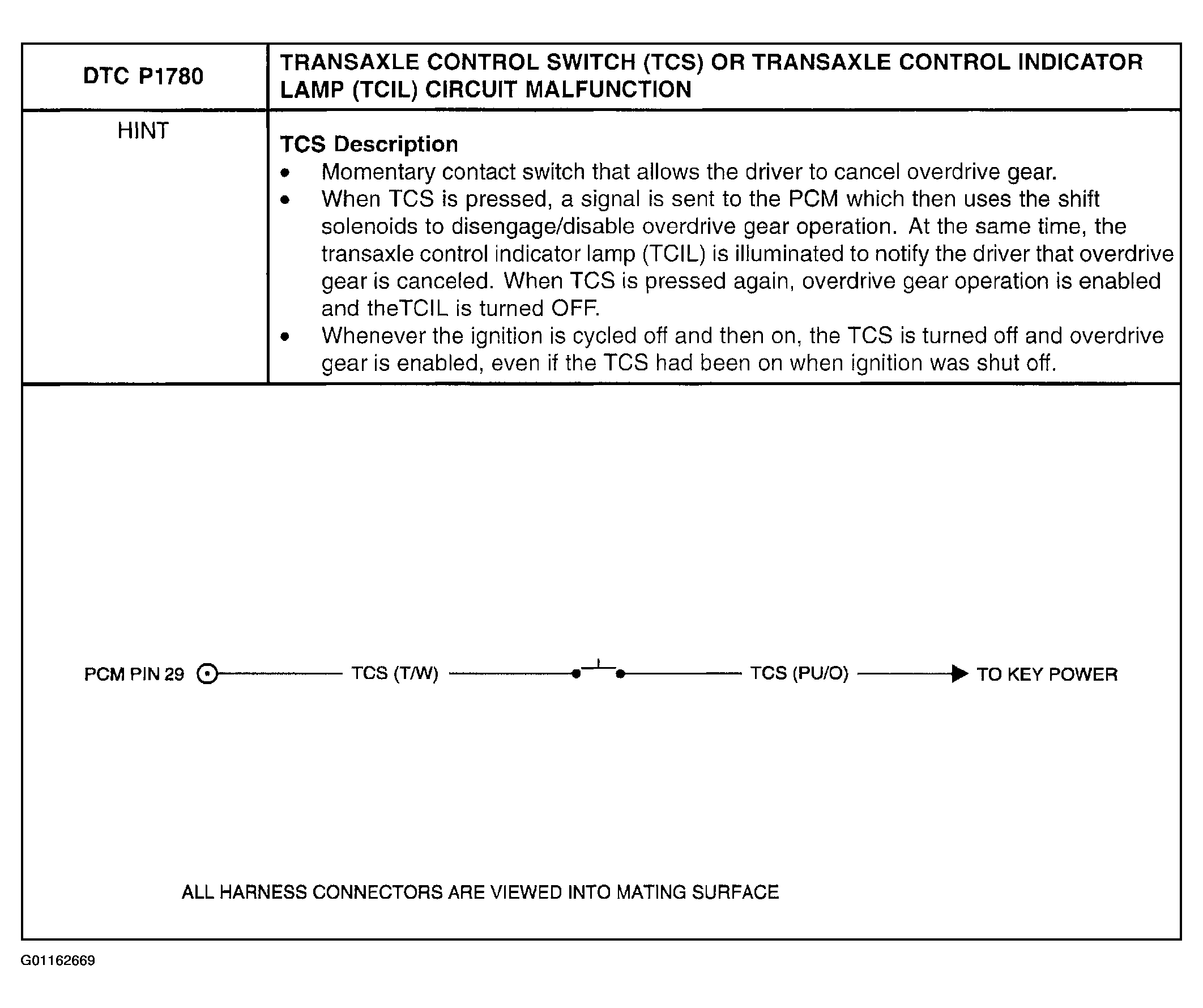

Fig 2: DTC P1780 Specifications & Description

Courtesy of MAZDA MOTORS CORP.

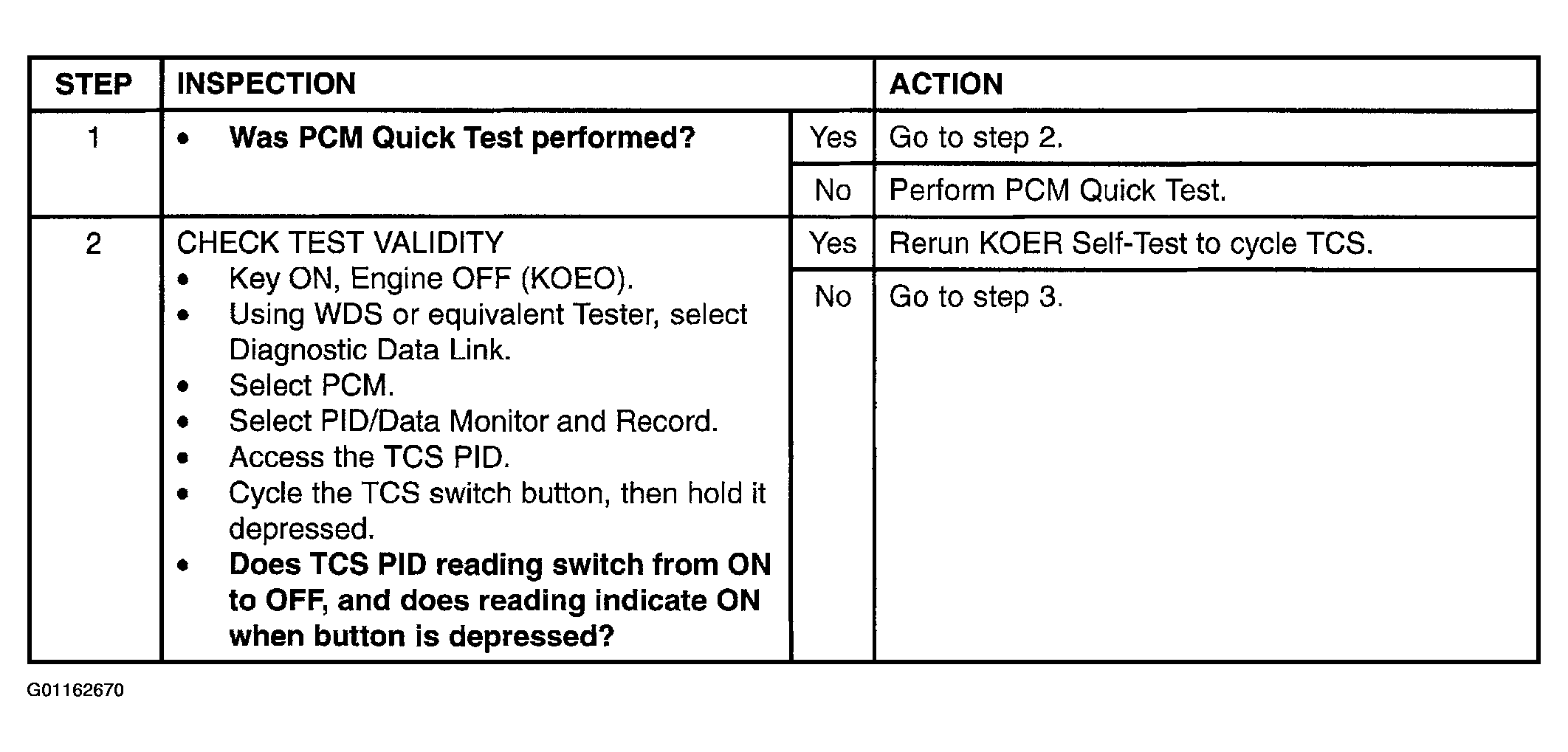

Fig 3: DTC P1780 Diagnostic Test (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

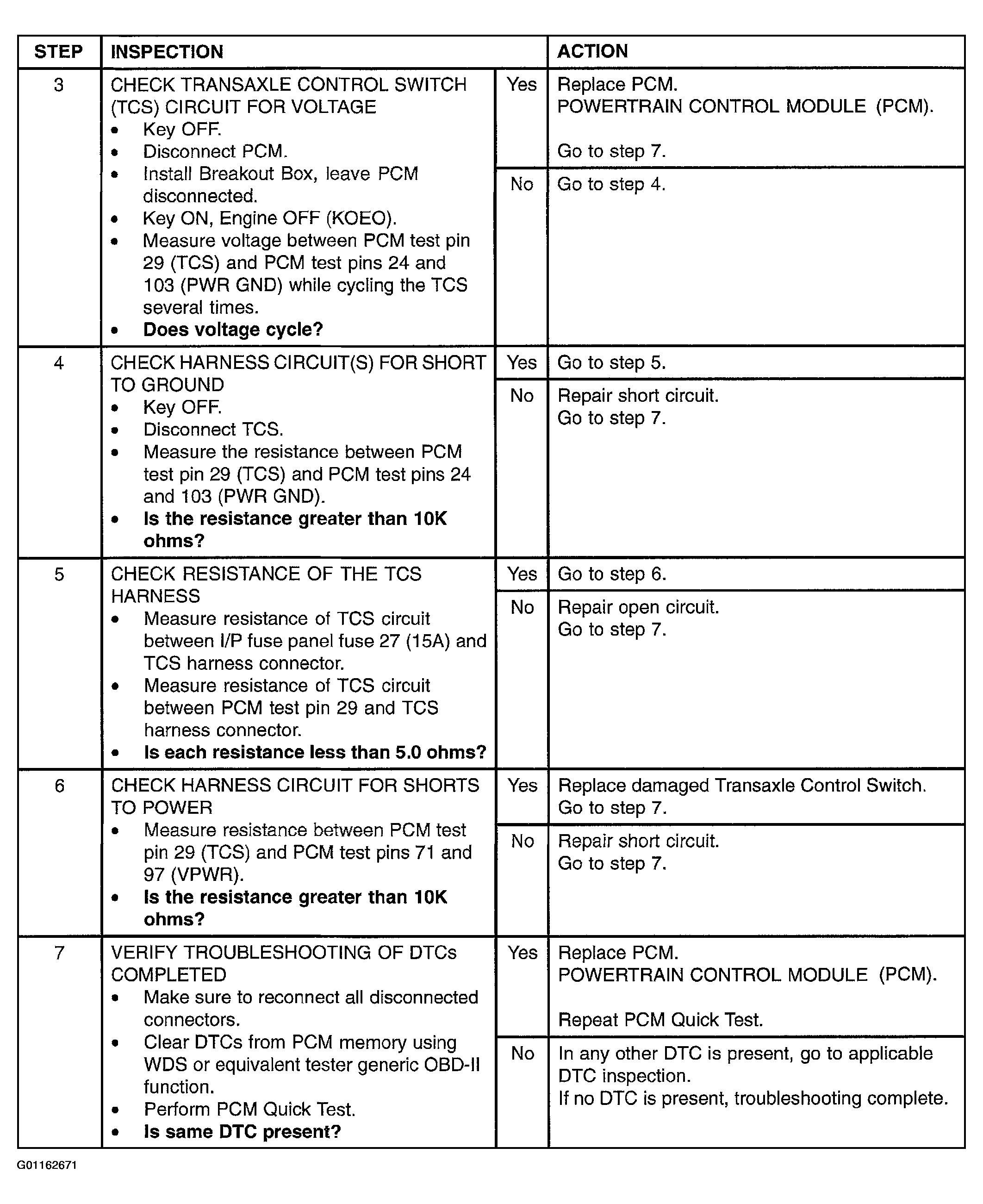

Fig 4: DTC P1780 Diagnostic Test (Steps 3-7)

Courtesy of MAZDA MOTORS CORP.
