Troubleshooting Index - Automatic Transaxle Shift Control
>>
Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship

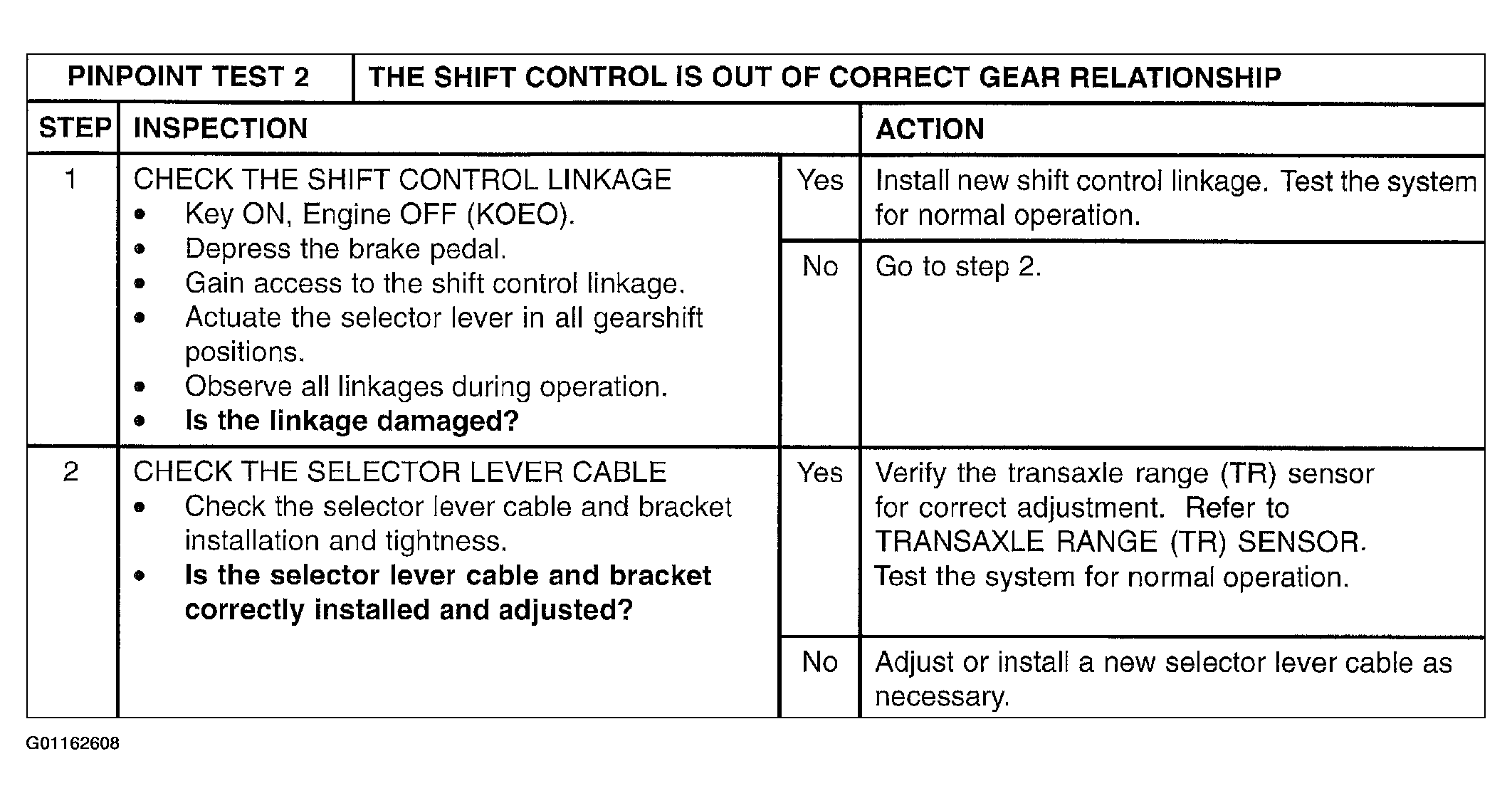

Fig 1: Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship
Courtesy of MAZDA MOTORS CORP.
