Air Pressure Test Port Locations

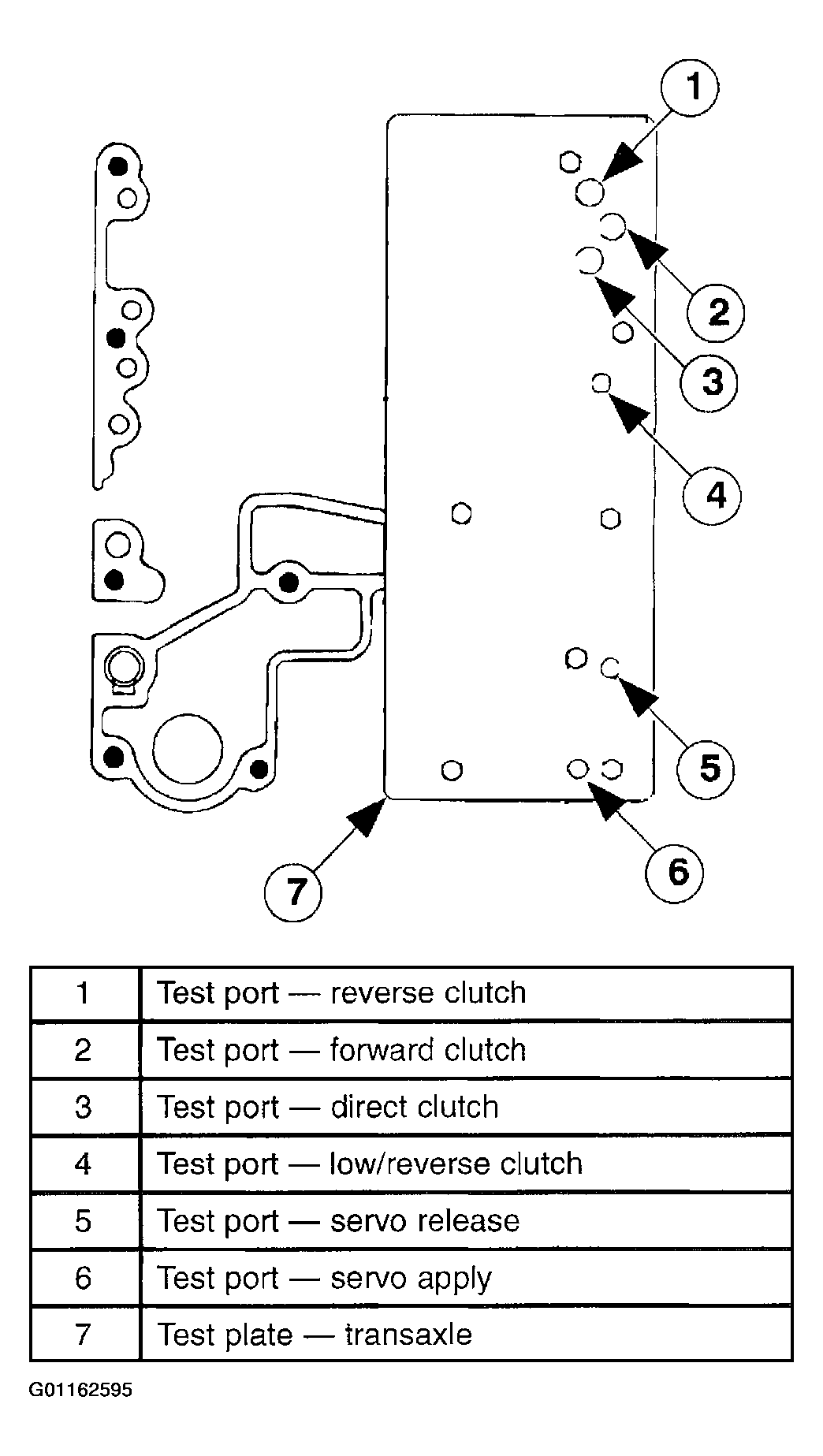

Fig 1: Air Pressure Test Port Locations
Courtesy of MAZDA MOTORS CORP.
