Heating and Air Conditioning

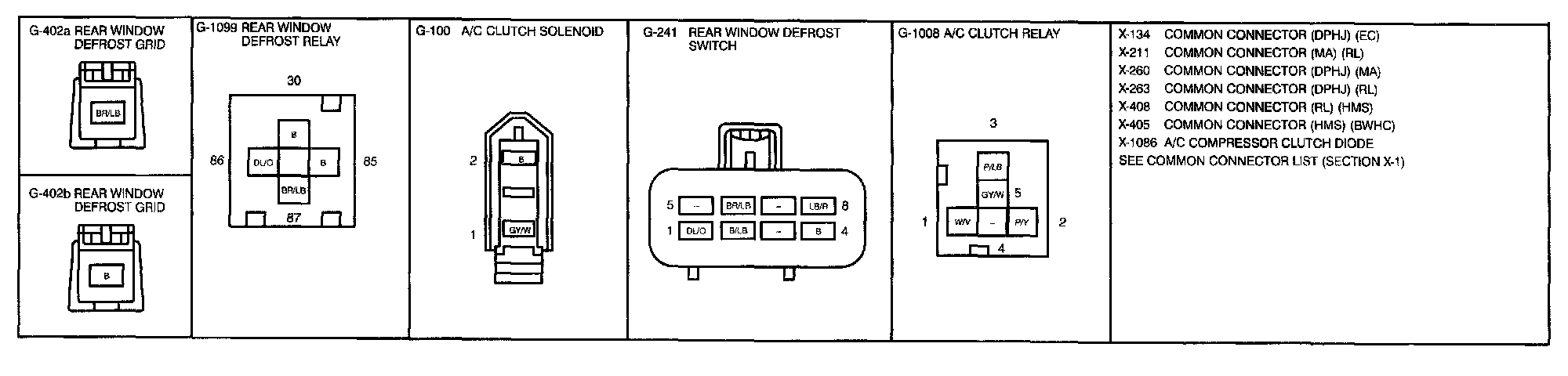

G-a - Heating And Air Conditioning Connectors:

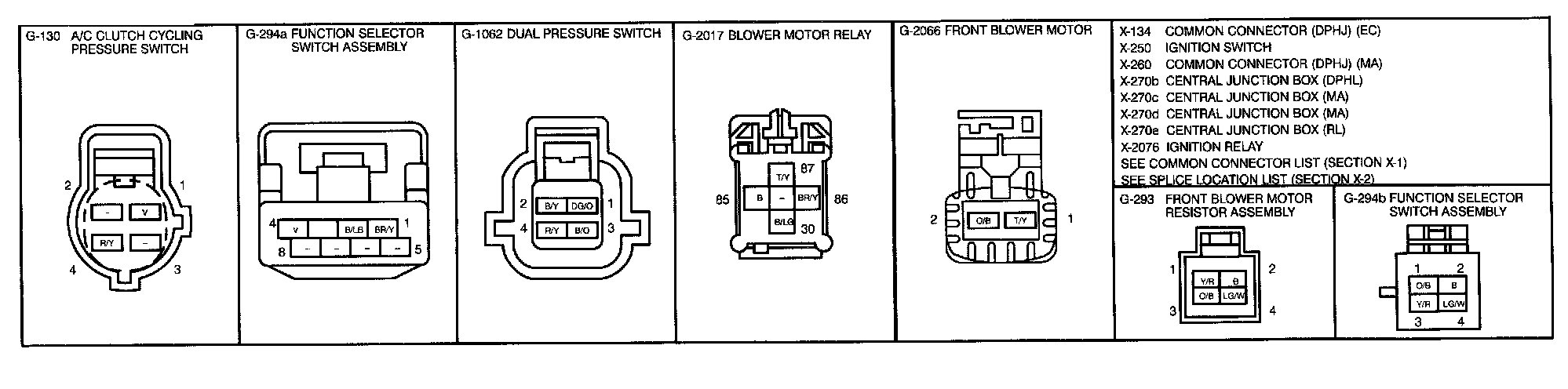

G-b - Heating And Air Conditioning Connectors:
