Engine Technical Data

General Specifications:

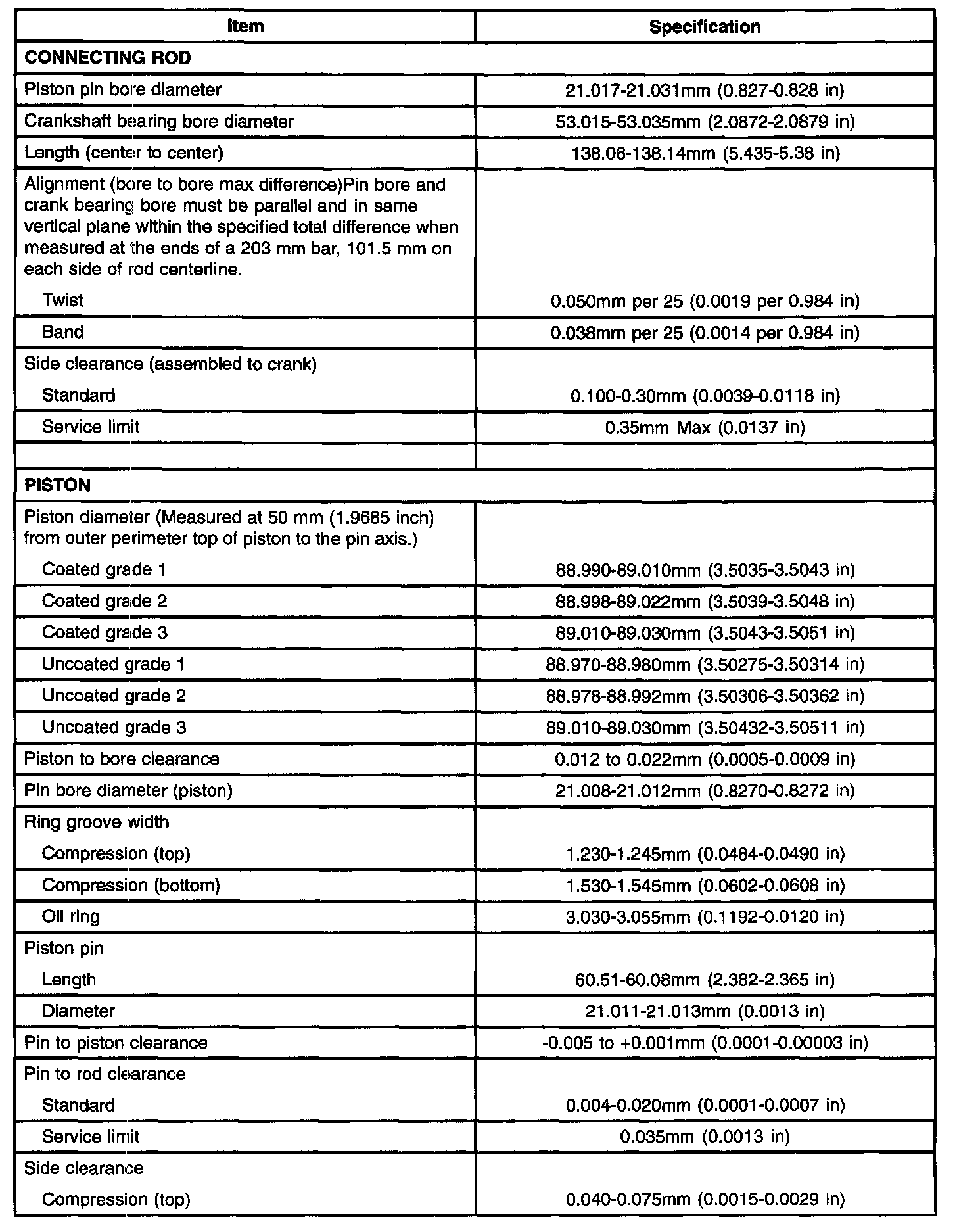

General Specifications - 3.0L (Part 1):

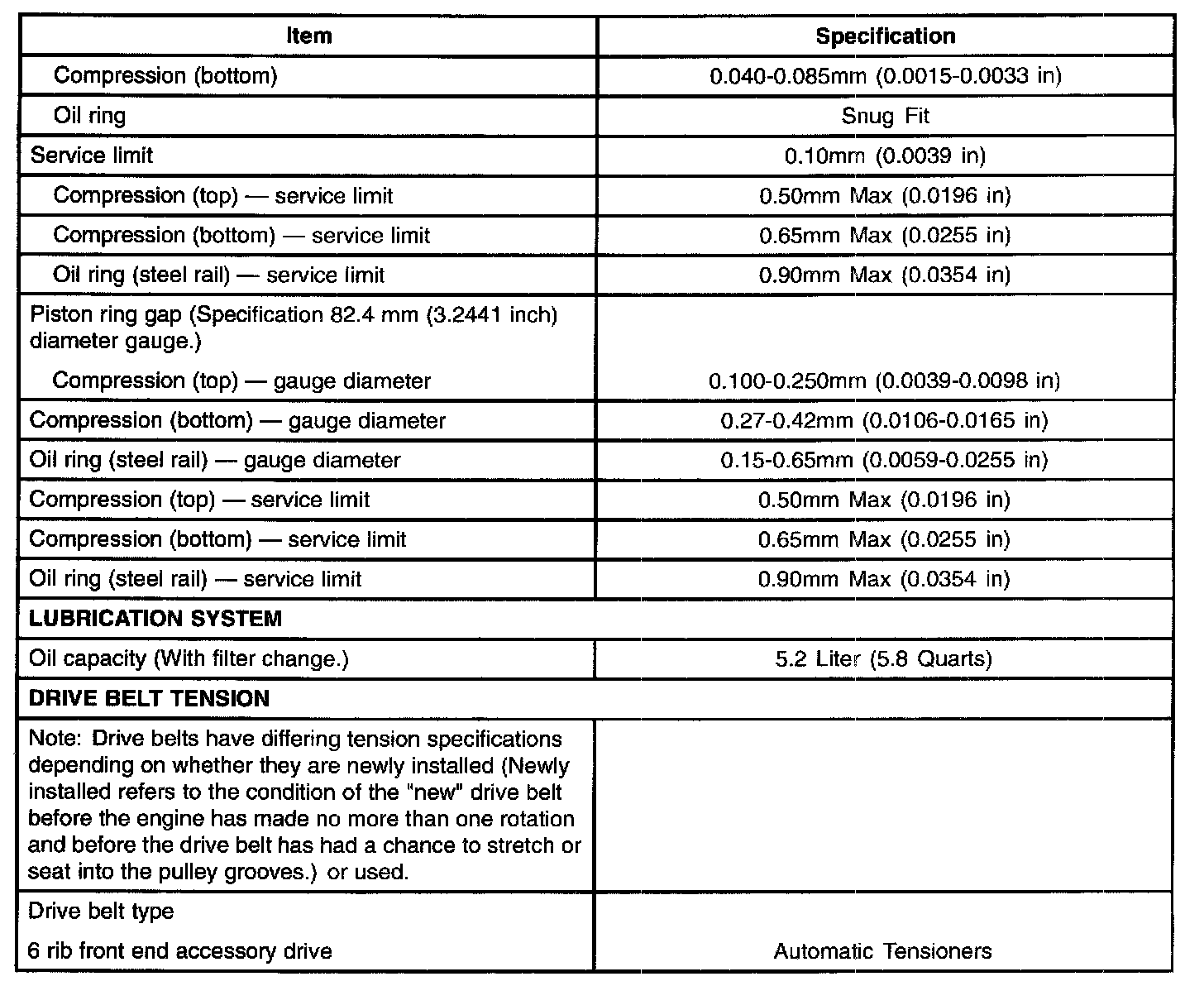

General Specifications - 3.0L (Part 2):

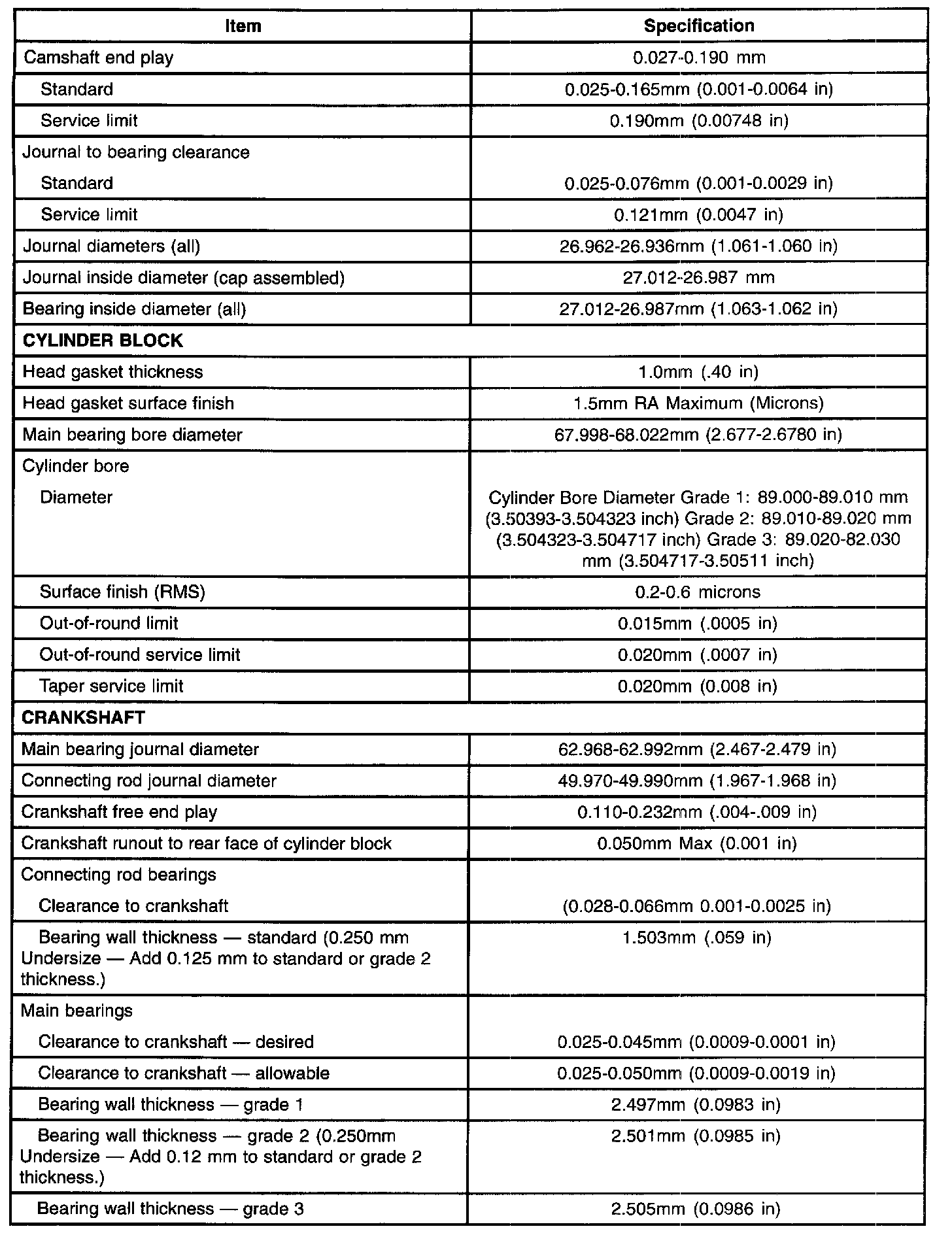

General Specifications - 3.0L (Part 3):

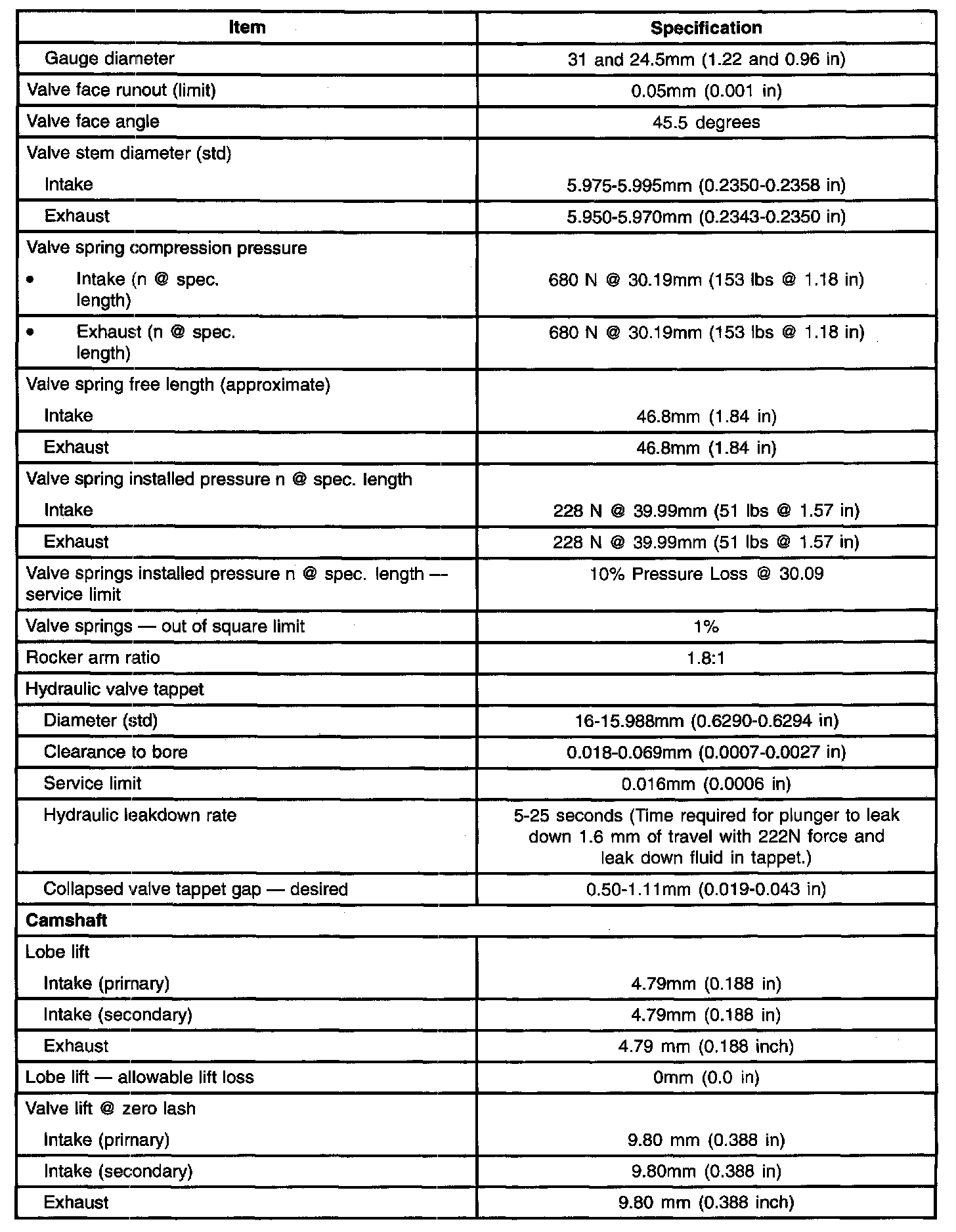

General Specifications - 3.0L (Part 4):



General Specifications - 3.0L (Part 5):

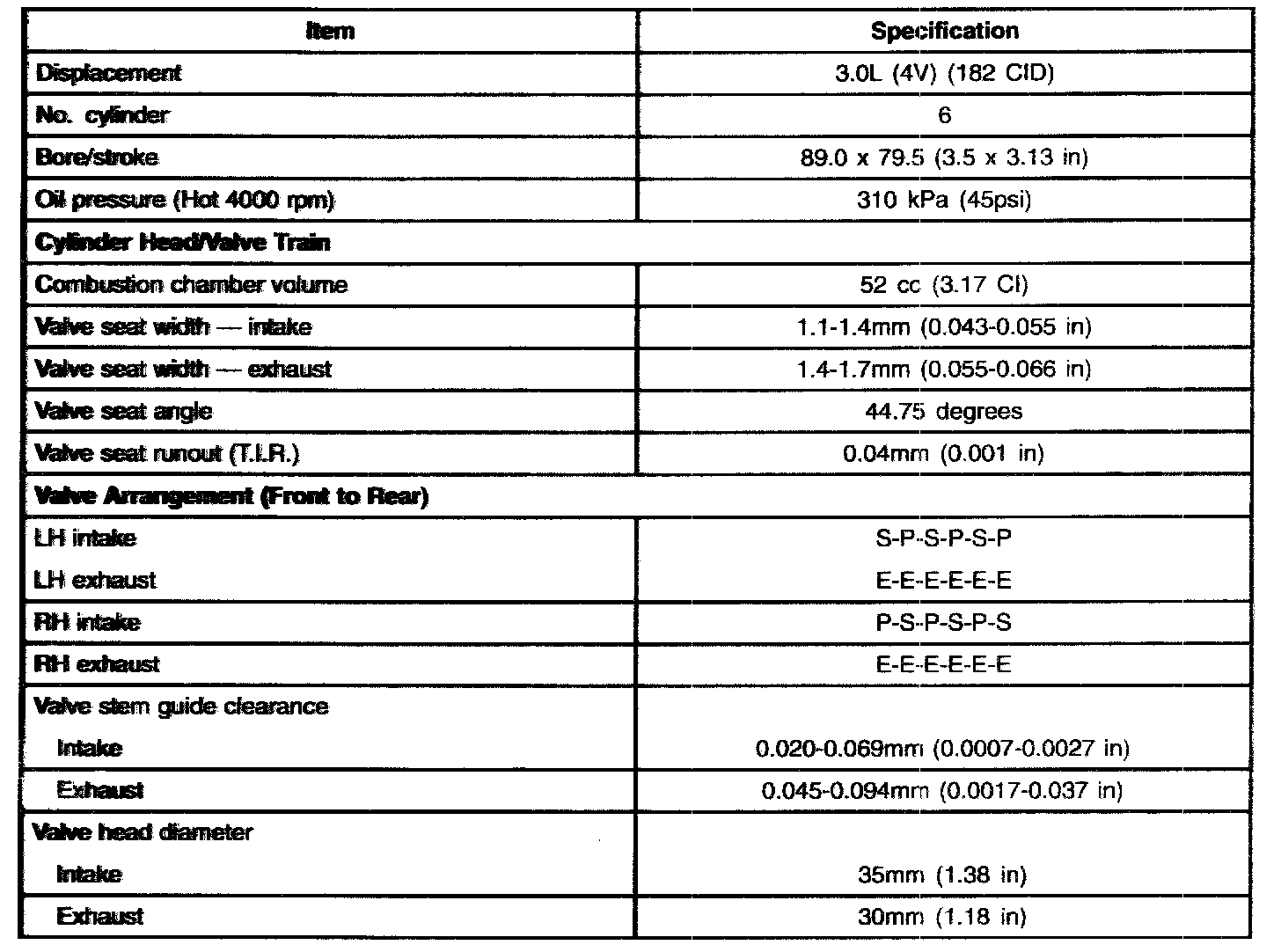

General Specifications - 3.0L (4V):
